3.2.1.

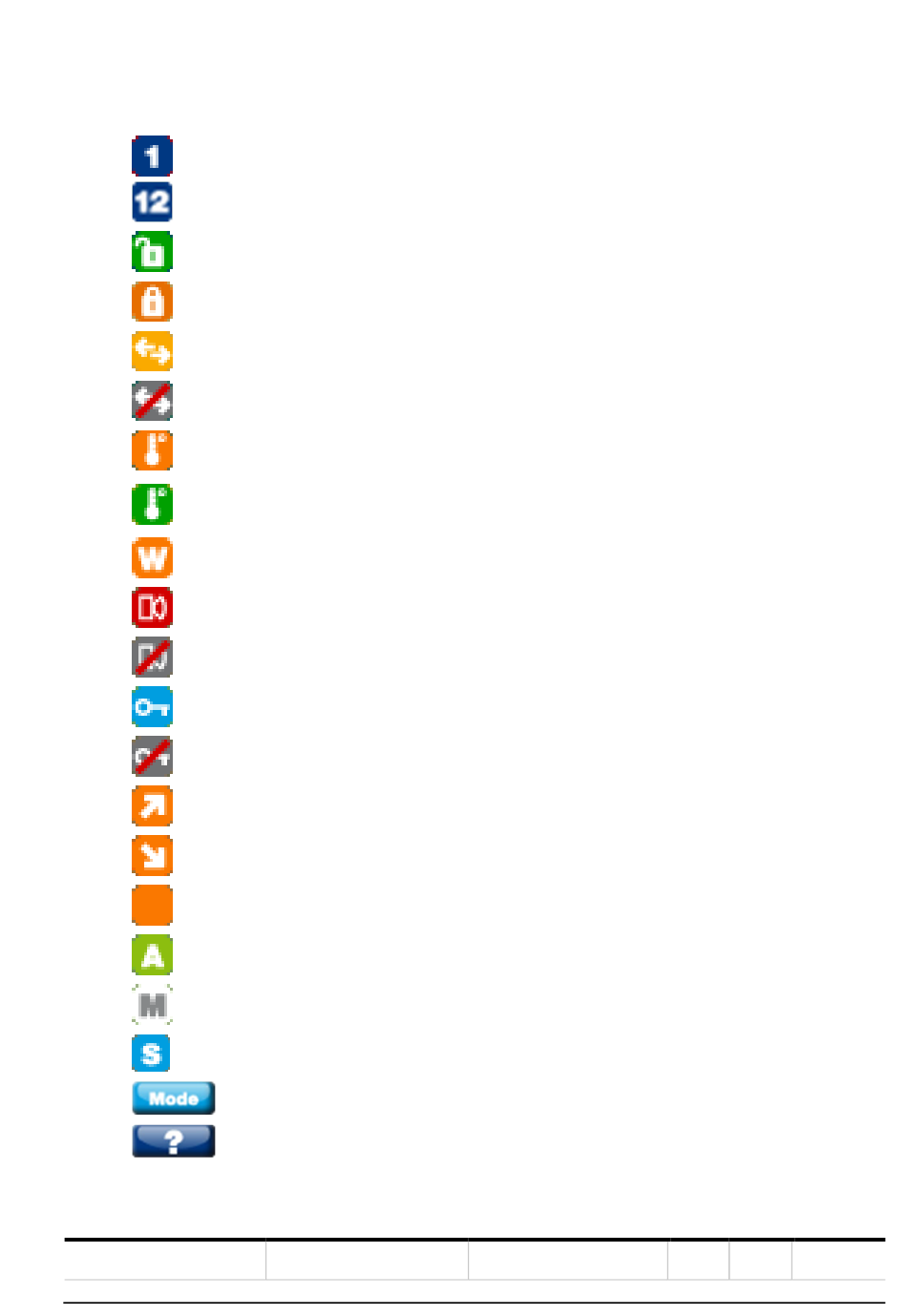

Legends for the touch screen icons

...
STATUS
Approved
Active (closed) output ( inactive outputs are not highlighted )
bank settings unlocked
bank settings locked
settings can only be done through the communication
settings can be done through the user interface or the communication
temperature alarm ( alarm relay is activated ) or warning ( fan/warning relay is
activated )
no temperature alarm nor warning ( alarm and fan/warning relays are not acti-
vated )
warning level achieved ( the fan/warning relay is activated )
alarm activated ( alarm relay is activated )
no alarm activated ( alarm relay is not activated )
settings locked by hardware switch at the back of the controller
settings unlocked by hardware switch at the back of the controller
demand to switch ON step(s)
demand to switch OFF step(s)
no demand to switch steps
automatic mode ( steps are switched automatically according settings )
manual mode ( steps can be switched manually )
set mode ( settings can be done )
mode change
on line help
