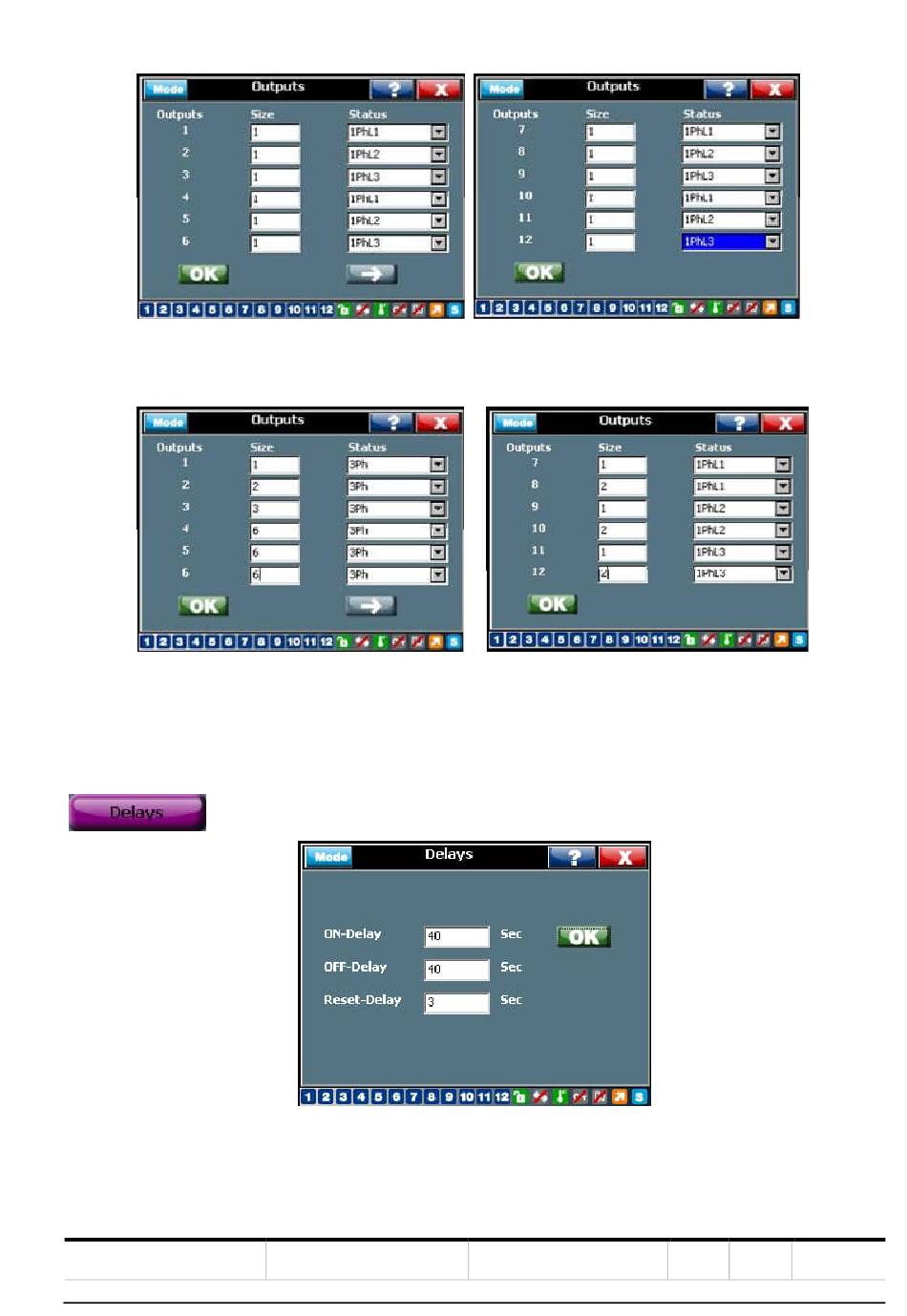

Figure 30 Typical outputs setting 12 x 1ph (Three phase model RVT12-3P)
Typical setting two: 6 steps of three phase capacitors + 6 steps of single phase (phase to neutral) capacitors:
Figure 31 Typical outputs setting 6 x 3ph + 6 x 1ph (Three phase model RVT12-3P)
Delay
Click the button "Delay" on the screen shown in Figure 27, the user can set the bank switching delays in following
screen.
STATUS
Approved
Figure 32 RVT delay settings
