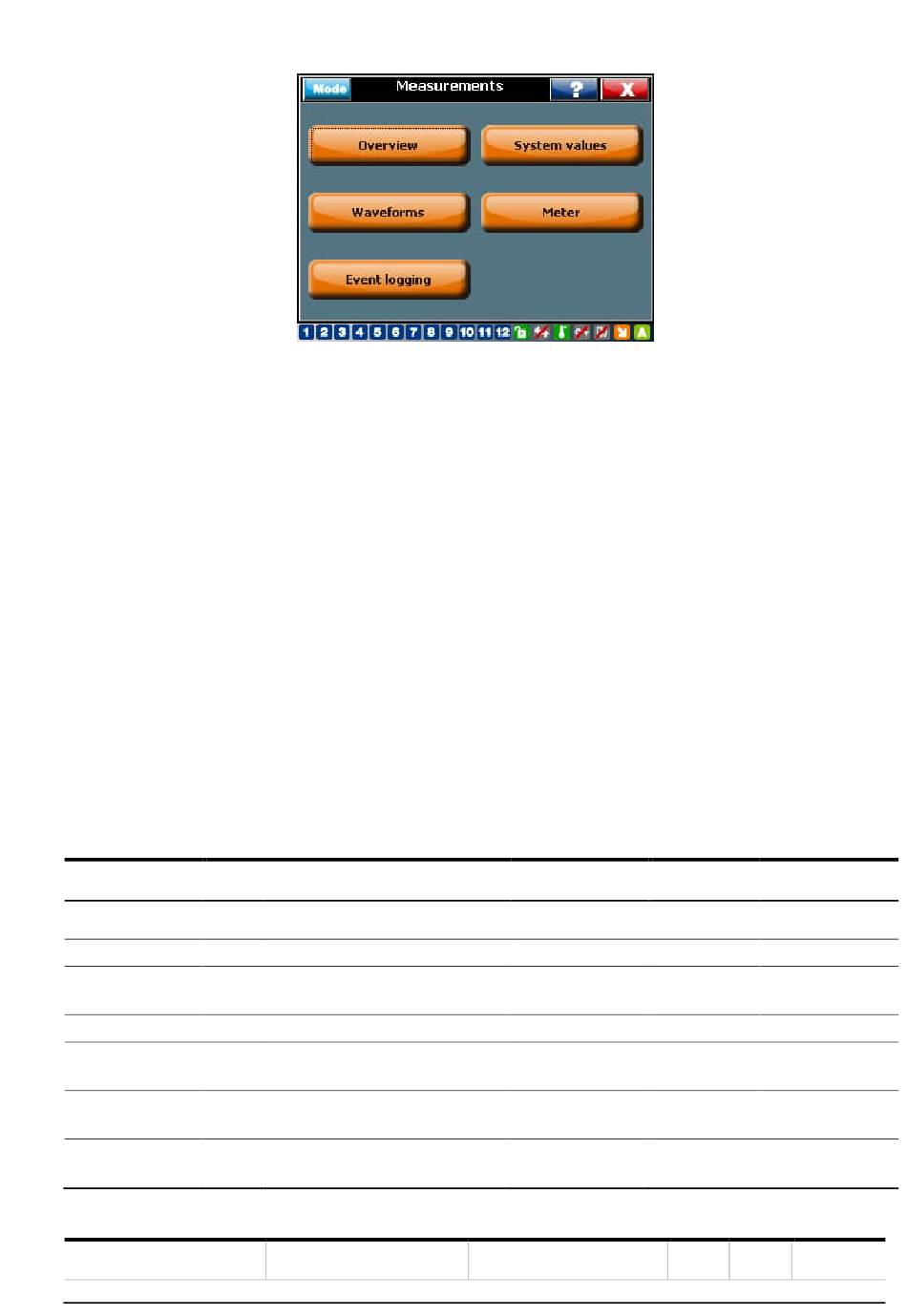

The overview submenu gives a complete list of all measurements.
System Values
Network measurements like voltage, current, Power, Energy and Temperature etc. For Three Phase Model RVT12-3P,
system values for each phase are available as well, for instance, the power factor for Phase 1, 2 and 3.
Waveform
System voltage and current (phase to phase or phase to neutral) can be displayed in Sine wave waveform.
Event Logging
This submenu allows the user to view the extreme values of some key parameters.
Meter
This function offers a possibility for the user to display three most concerned measurements in one screen. For in-
stance, three line voltages can be shown in one screen in a better resolution and better view. Detailed instructions for
this function can be found in 4.2.4.
4.2.1. Overview
Details on all available measurements through RVT:
Designation Unit
Voltage
Vrms V
V1 V
Frequency Hz
THDV %
V harm. Table
V harm. chart
STATUS
Approved
Table 1 Measurements overview
Description
Rms Voltage
Rms voltage at the fundamental
frequency
Fundamental voltage frequency
Total harmonic voltage distortion
on voltage
Voltage harmonics displayed in a
table
Voltage harmonics displayed in a
bar graph
SECURITY LEVEL
Public
PO WER FACTO R CON TR O LL ER RV T
Range
Up to 690Vac
Up to 690Vac
45Hz - 65Hz
0 - 300%
2nd-49th
2nd-49th
DOCUMENT ID
9AKK107045A9645
Accuracy Max value
6
± 1 % 10 V
6
± 1 % 10 V
± 0.5% 45Hz - 75 Hz
± 1 % 1000 %
See later in this paragraph
See later in this paragraph
REV. LANG. PAGE
D en 31/542
