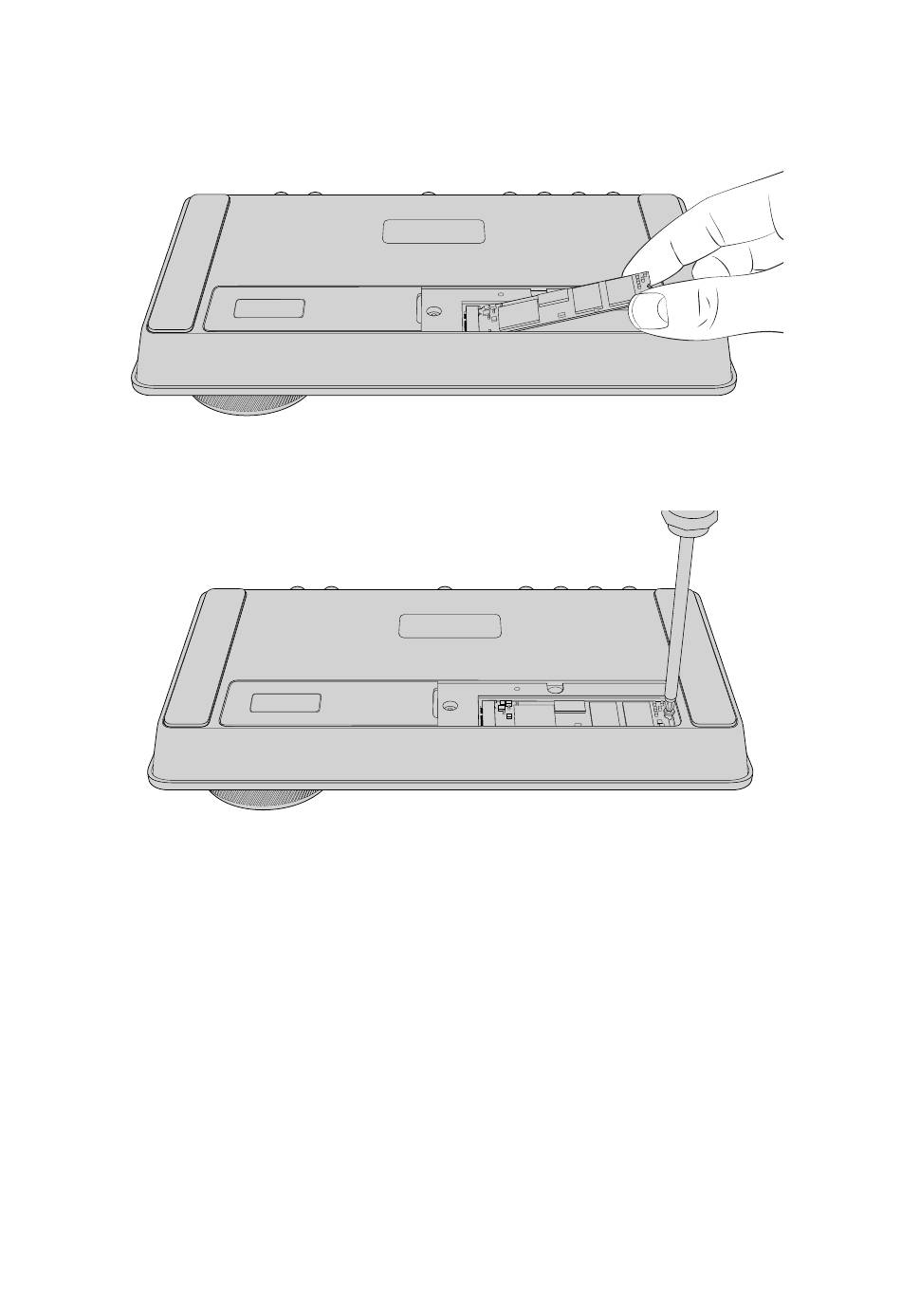

5 Remove the M.2 SSD from the packaging and slide the card into place in the PCIe slot. The
slot will pivot up to 30 degrees to help installation.
6 Push the card down lightly onto the heat pad and fasten the screw. You only need to tighten
enough to keep the M.2 SSD snug.
7 Replace the cover plate and screw in place.
8
Turn the unit right side up and reconnect your power and other cables.

Formatting The M.2 SSD

Once your M.2 SSD is installed you will need to format it.
1 When a recognized drive is installed, the 'M.2 SSD' icon in the upper toolbar displays
'format' instead of 'no drive'. Tap on the icon to open the format window.
2 A window will appear prompting you to format the internal M.2 SSD. Tap on 'format drive'.
This will erase any data on the M.2 SSD.
3 Formatting will begin. Once complete the internal M.2 SSD will be ready to use. Tap 'ok'.
Using the Optional Internal M.2 SSD 90
