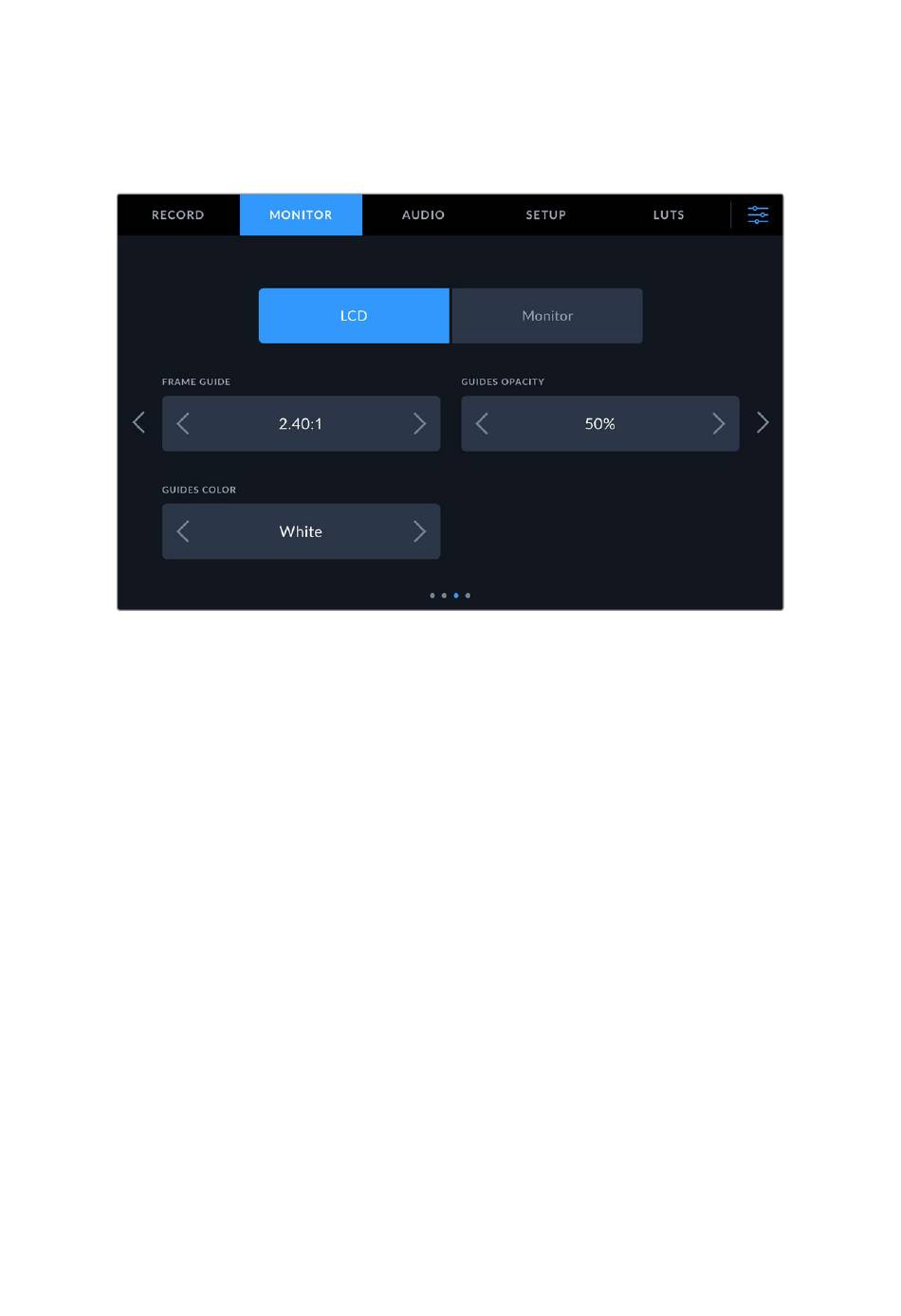

Monitor Page 3
The third page of monitor settings contains options for frame guides on the LCD and monitor
outputs including guides, opacity and color. These settings apply to both the LCD and monitor
outputs when frame guides are enabled.
Frame Guide
Guides provide a range of aspect ratios from various film, television and online standards.
Select your guide by tapping the left and right arrows. This will update the guide on both the
LCD and monitor outputs.
Guides Opacity
Reduce the appearance of the guides by lowering the opacity level or increase by raising the
level. The opacity will adjust both the LCD and monitor output overlays.
Guides Color
Select the color for the selected frame guide and grid overlays by tapping on the arrows. There
are five colors available including white, black, red, blue and green. This will adjust the color for
both the LCD and monitor outputs.
