Installing The M.2 SSD

HyperDeck Shuttle 4K Pro 2TB models ship with an internal M.2 SSD already installed. With
HyperDeck Shuttle 4K Pro, you can install your own M.2 SSD disk. Installing a M.2 SSD is easy
and only needs to be done once. You can access the cache location via a removable panel
underneath the unit. HyperDeck Shuttle 4K Pro s compatible with M.2 2280 SSDs. These SSDs
are 22 millimeters wide by 80 millimeters long.
To install the cache:
1 Disconnect your HyperDeck Shuttle 4K Pro from the power source. You can leave other
cables connected, but you may find it easier to remove them.

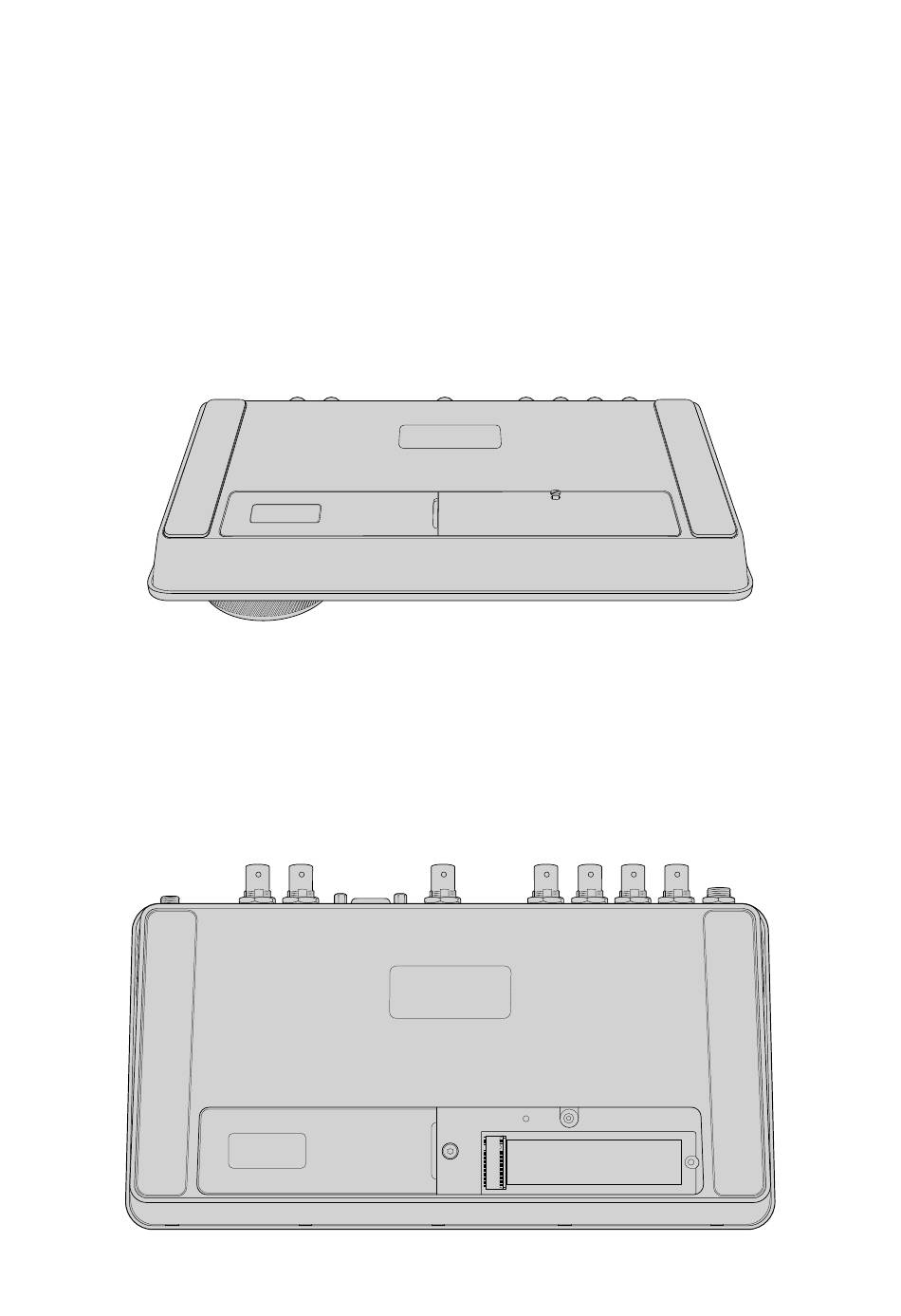

2 Turn the unit upside down and unfasten the screw from the cover plate to remove it.
3 Unfasten the screw.
4 HyperDeck Shuttle 4K Pro ships with a package of thermally conductive heat pads to fill
the air gaps between your PCIe flash disk and the unit. These work by transferring the heat
away from the PCIe flash disk to the HyperDeck Shuttle. There are 4 heat pads in the pack
to suit varying M.2 PCIe sizes as the width of the card is greater the higher the capacity.
Pick the best heat pad to suit your storage and attach to the underside of the HyperDeck.
Peel back the protective blue film on the motherboard heat pad.
