Using the Monitor Output

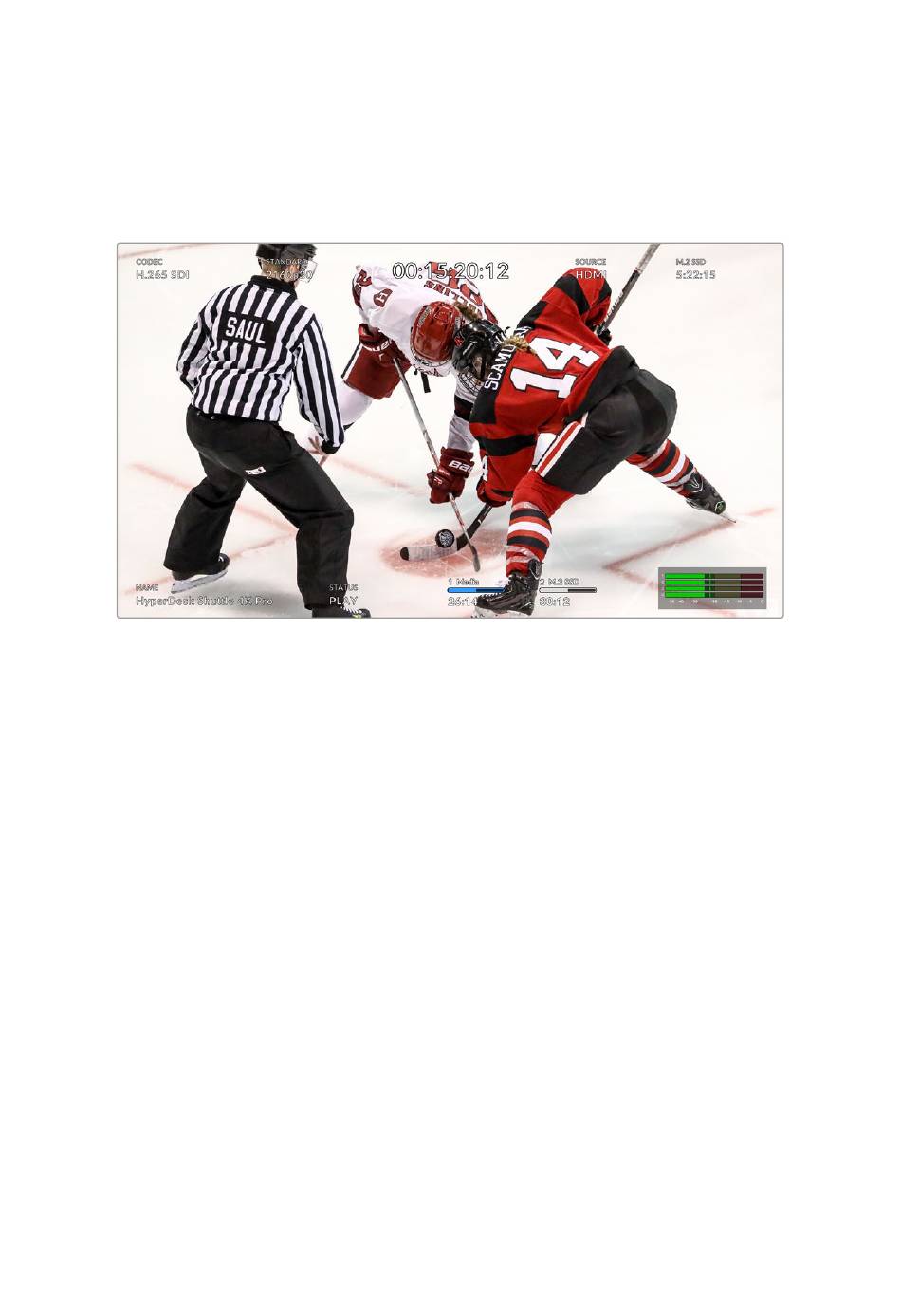

The monitor output is a fast way to visually check your recording or playback video, with
overlays displaying important status information such as the codec being used, the video and
signal standard, frame rate, timecode, file name, transport control status, storage media status,
and audio levels.
Monitor overlays can be turned on via the second page of the monitor settings or you can
remove them from display by turning 'status text' off. More information on monitor settings,
including turning on frame guides and other focus assist tools can be found in the 'settings'
section earlier in this manual.

Status Text Overlay

Below is a description of the information displayed.
Codec
Displays the codec selected via the LCD menu.
Standard
Displays the current clip's resolution and frame rate when in playback mode. If you are in record
mode, it will display the resolution and frame rate of the video connected to the currently
selected source.
Timecode
Displays the timecode present in your video clip during playback, or currently being recorded
via the video or timecode inputs. You can also select between displaying clip timecode or the
time counter for the timeline.
Source
Displays the currently selected SDI or HDMI source. If 'no signal' appears, it means a valid
signal is not detected.
