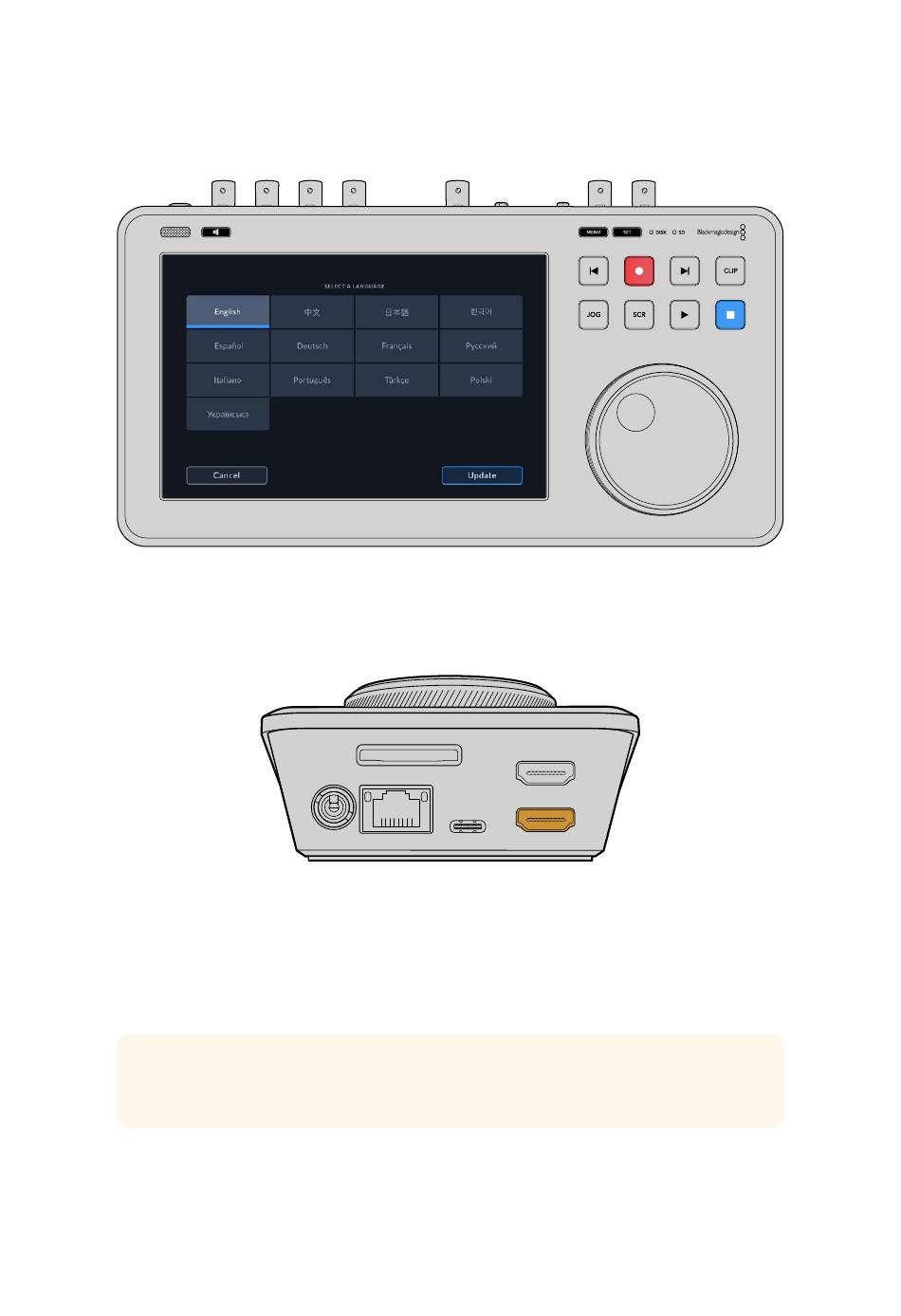

Once powered, the HyperDeck Shuttle 4K Pro touchscreen display will prompt you to select
your language. To select your language, tap on the language option followed by 'update'. The
main window will now appear.

Connecting Video and Audio

To connect video to your HyperDeck Shuttle HD, plug an HDMI video source into the HDMI
input on the rear panel.
Connect your destination equipment to the HDMI output. For example, an ATEM Mini switcher
or an HDMI television.
The HDMI output is also used to view the settings menu when changing settings for your
HyperDeck. This is because the settings menu is viewed via video overlay on the HDMI output.
More information about the menu settings can be found in the 'changing settings' section later
in this manual.
TIP If you cannot see your input video source on the connected display, you may be in
playback mode. Press the record button to enable record mode.
SD CARD
+ 12V DC
ETHERNET EXT DISK
HDMI OUT
HDMI IN
Getting Started 6
