The input re-sync only does something if the video input is not locked to the same reference as
the HyperDeck. But in this case, the HyperDeck output is the reference source to the camera
and the HyperDeck is locked to its video reference input. If you have multiple HyperDecks all
locked together by looping the reference connections, then all cameras and HyperDecks will
be locked as a single group. Then if one of the HyperDecks in a group has a non-sync source,
such as a computer, then that one input will be resynchronized, but the other sources won't
need anything.
The re-sync is automatic so you can just connect sources and it will work. The input re-sync
feature can be extremely powerful, however, it's important to know when it's going to do
something and what it will do. Try some experiments with multiple HyperDecks and multi-
cam editing software to see how it works! It's a fantastic way to do program production that's
very fast.

Monitor Settings

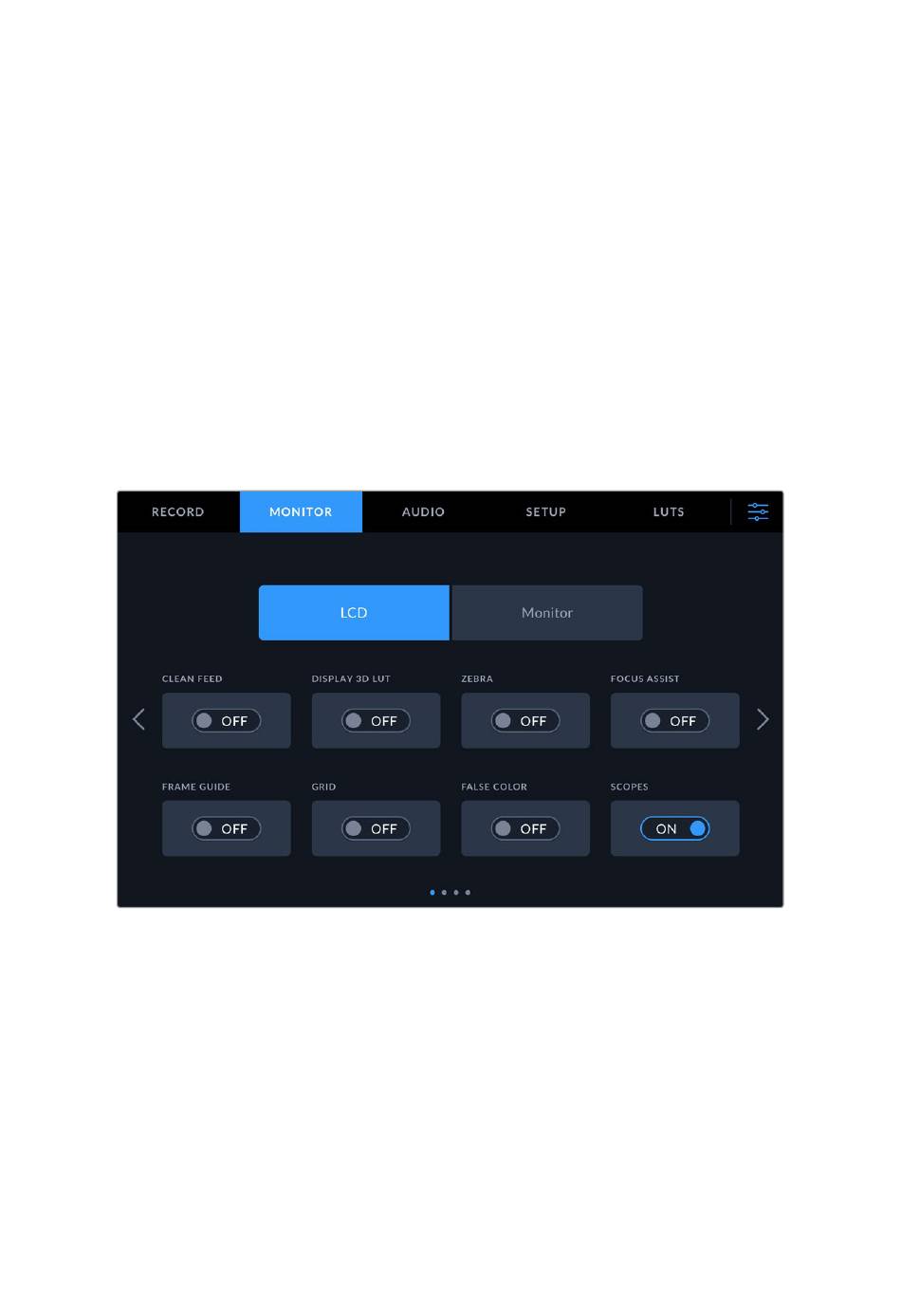

The 'monitor' tab lets you toggle the monitor options as well as Display 3D LUT and Scopes.
The settings are divided into four pages and can be set for the LCD touchscreen and the
dedicated HDMI and SDI monitor outputs.
Tap on LCD or Monitor to toggle the options on or off the selected output
These include:
Clean Feed
Turn clean feed 'on' to disable all status text and overlays for the LCD display and monitor
output. This option is a quick way to turn off all the outputs at once.
Display 3D LUT
Toggles display LUTs on and off to your LCD or monitor SDI. The toggle appears disabled when
no LUT is active. For information on how to set a LUT, see the LUTs section later in this manual.
Settings 43
