Monitor Channels
When recording more than two channels, you can select a second pair of channels you want to
see on the front panel via the monitor channels option. This setting also sets which channels of
audio will play back through the front panel speaker and headphones connection.
Audio Meters
You can choose from two different audio meter display types.
PPM PPM meters, or 'peak program meters' displays a 'peak hold' feature that momentarily holds
the signal peaks and a slow fall back so you can easily see where your audio is peaking.
VU The VU meter, or 'volume units' meter, averages out short peaks and troughs in your audio
signal. If you are using VU metering, adjust the input levels on the HyperDeck Shuttle 4K Pro
so that the meter peaks at the 0db indicator on the audio meter. This maximizes the signal to
noise ratio and ensures your audio is at the highest quality. If your audio peaks beyond the
0dB indicator there is a high risk of sound distortion.
Both VU and PPM meters are available at reference levels of -18dB or -20dB so you can monitor
your audio to suit different international broadcasting standards.
Headphone Level
If you are using headphones, adjust the volume using the slider.
Speaker Level
Adjust the speaker volume using the slider. The default level is 50%.

Setup Settings

The setup tab provides access to network, timecode and reference settings as well as setting
the function of the internal M.2 SSD.

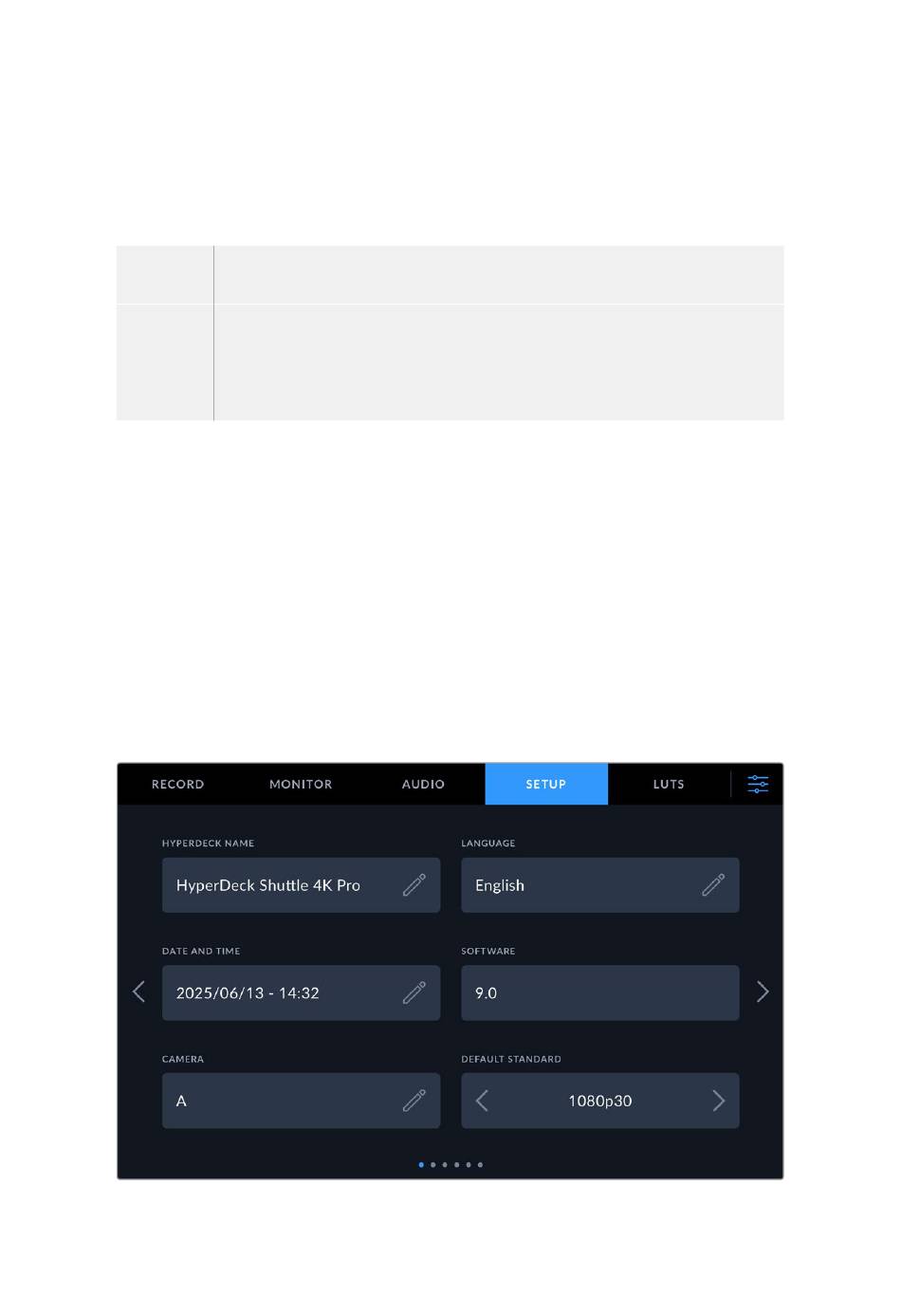

Setup Page 1
Add your HyperDeck name and network settings on the Setup tab
Settings 49
