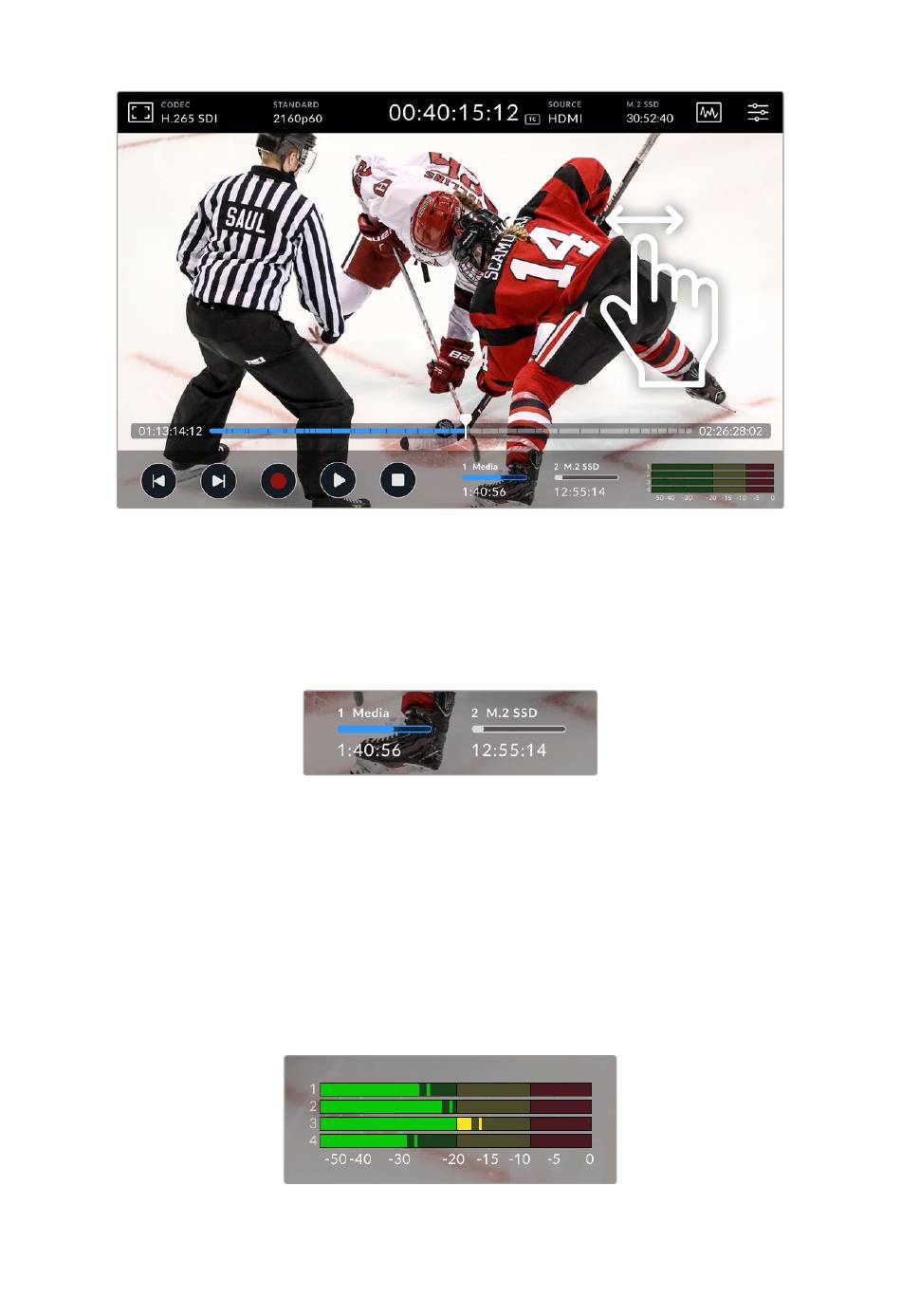

Swipe left or right for precision control
Storage Indicators
The storage indicators display the status of the media slots including record duration available.
The first represents the SD card slot on the rear of the HyperDeck. The second drive icon
displays the active USB flash disk connected via the 'ext disk' connector on the rear panel,
internal M.2 SSD when set to 'network storage' or network location connected via Ethernet.
Your active drive is used for playback and recording. Once a drive is filled, recording will spill
over to the next drive, ensuring you don't miss a frame.
For more information on storage indicators, see the 'storage media' section later in this manual.
Audio Meters
On screen audio meters display four audio channels of any source. Channels 1 and 2 will always
appear first followed by a second pair of channels, which are usually 3 and 4. Using the monitor
channels settings in the audio menu, you can select a different pair of channels to monitor. For
more information, refer to the audio tab in the dashboard menu section later in this manual.
The audio meters will display your current audio as a VU or
PPM audio monitor. Tap on the audio meters to adjust levels
On screen icons let you see the status of your
storage at a quick glance
