Reference Source
Select your reference source from the three options.
Auto 'Auto' mode will default to external if there is a signal connected to the 'ref in'
connection on the rear panel. If there is no reference connected, it will default to
the input SDI or HDMI source.
Input Select 'input' if your source has embedded reference that you want to sync to.
An example of this would be where your tape based deck may have a genlock
source directly connected.
External If you have an external reference device, for example the Blackmagic Sync
Generator, connected via the 'ref in' connection on the rear, select 'external'.
Reference Timing
Reference timing can be adjusted if you are archiving from analog tape decks and you need
frame synchronization. The reference adjustment is in samples so you can get an extremely
accurate timing adjustment down to the sample level.
Adjust the number of lines and pixels by tapping the arrow to the left to decrease or the arrow
to the right to increase.

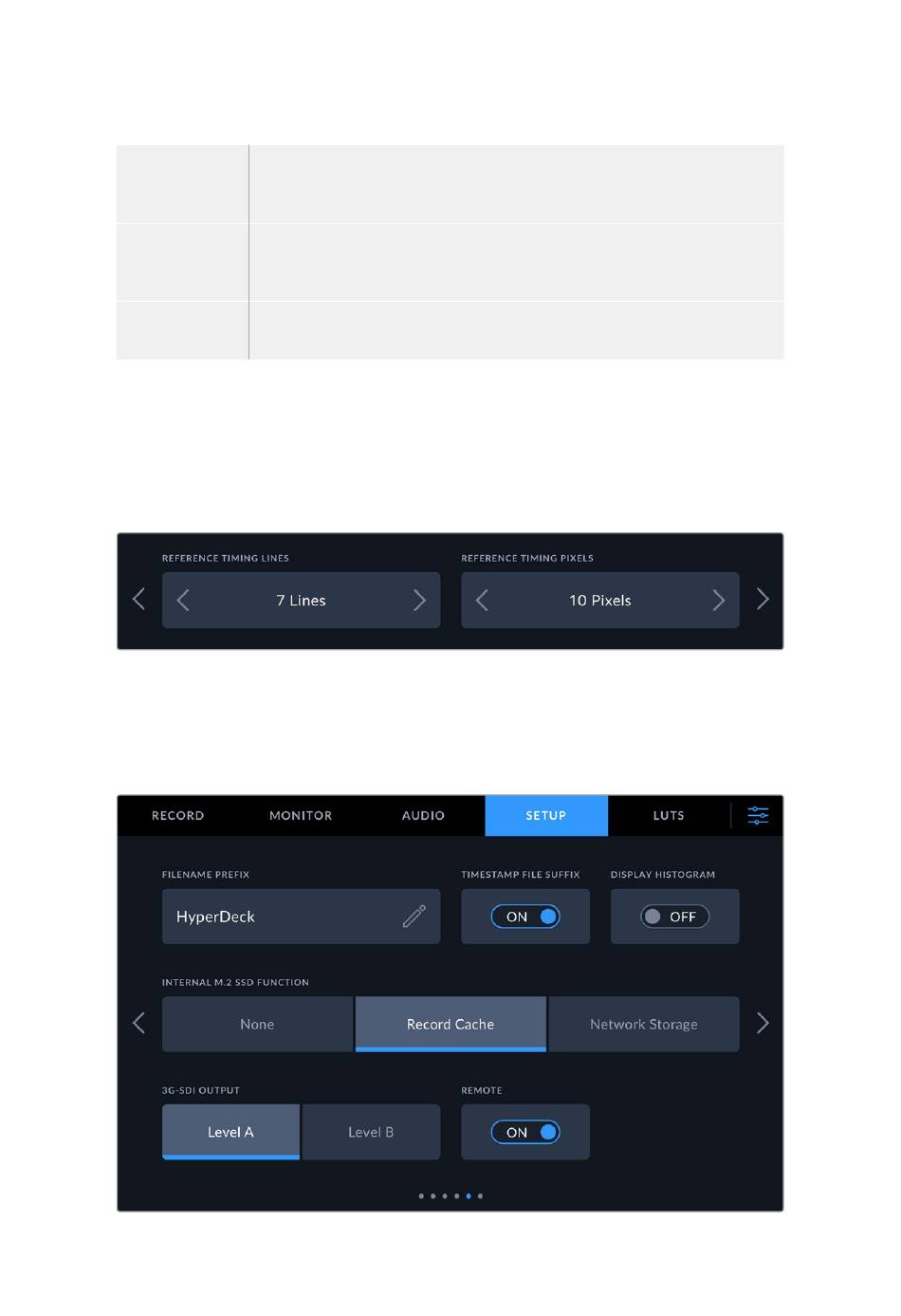

Tap on the arrows to increase or decrease your timing lines and pixels.
Setup Page 5
Using the fifth page of the setup menu you can modify the filename prefix, set the internal M.2
SSD function and turn on remote to allow control of the HyperDeck from another disk recorder.
Settings 55
