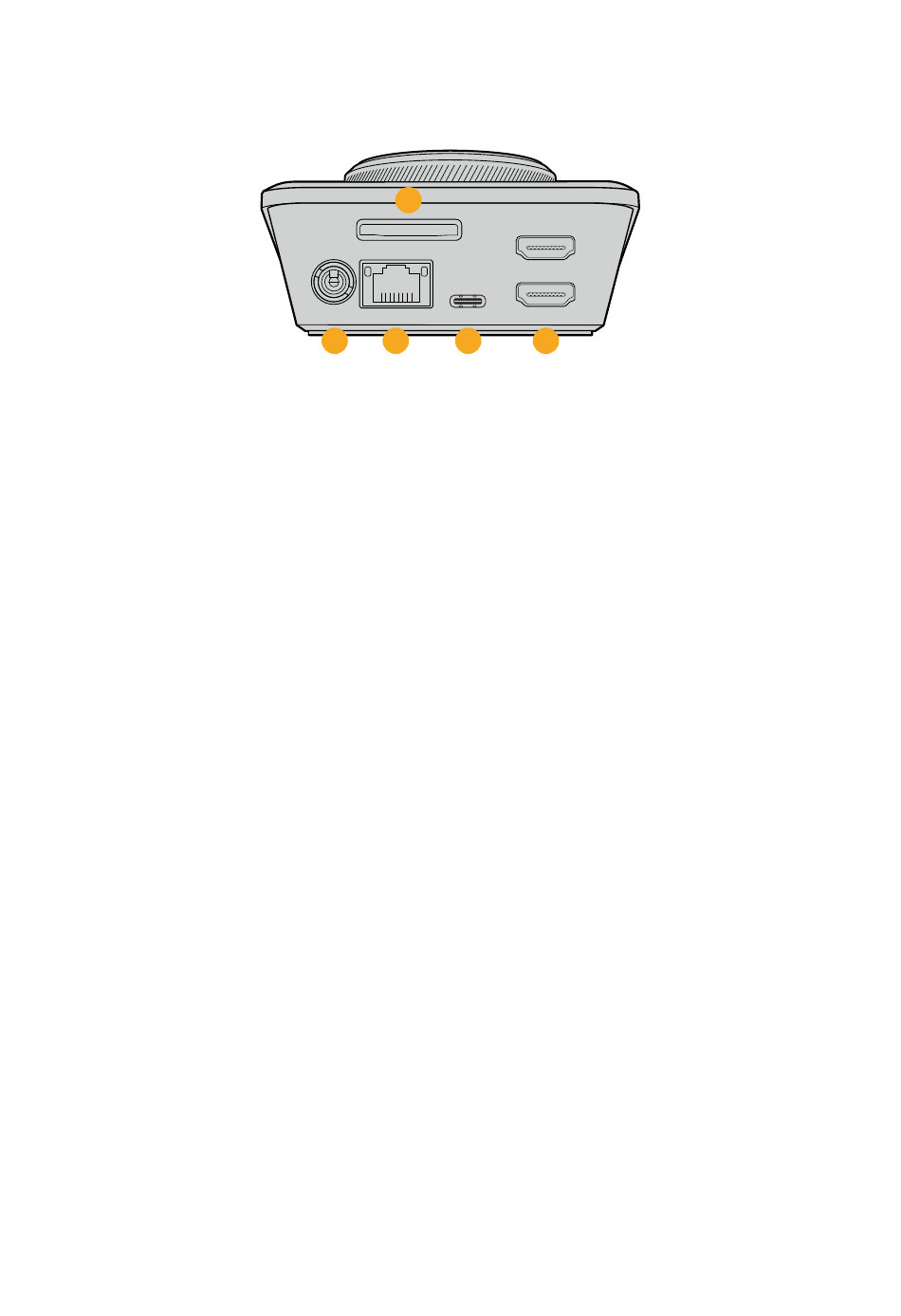

Rear Panel

1 Power
HyperDeck Shuttle HD is powered via an AC plug pack. The supplied power cable included
features a locking connector to prevent disconnection, but you can also use any 36W 12V
power cable to power the HyperDeck Shuttle HD.
2 SD Card
Insert SD cards into the slot for recording and playback.
3 Ethernet
The Ethernet port lets you connect to your network for recording to network locations, fast
ftp transfers and http transfers via the web media manager. In addition you can remotely
control the unit using REST API or the HyperDeck Ethernet Protocol. For more details on
transferring files via the web media manager or an FTP client, see the 'transferring files
over a network' section later in this manual.
When connected to the same network shared with an ATEM switcher, you can also control
your HyperDeck using the ATEM switcher or an ATEM hardware panel.
4 Ext Disk
Connect a flash disk to the USB-C connector so you can record to external disks at up to
5Gb/s. You can also connect to multi port USB-C hubs or Blackmagic MultiDock 10G to
connect one or multiple SSDs.
5 HDMI
Connect the HDMI output to HDMI televisions, monitors or even a switcher, such as ATEM
Mini Extreme. The HDMI output is also used to view the menu overlay.
2
SD CARD
+ 12V DC
ETHERNET EXT DISK
1 3 4
HDMI OUT
HDMI IN
5
