Getting Started

Getting started with your HyperDeck Shuttle is as easy as connecting power, plugging in a
video source, inserting an SD card or external media, then pressing record!
This section of the manual shows how to get started using your HyperDeck Shuttle.

Plugging in Power

To power your HyperDeck Shuttle, plug the supplied power adapter into the power input on
the rear panel. Tightening the locking ring secures the power cable to prevent accidental
disconnection.

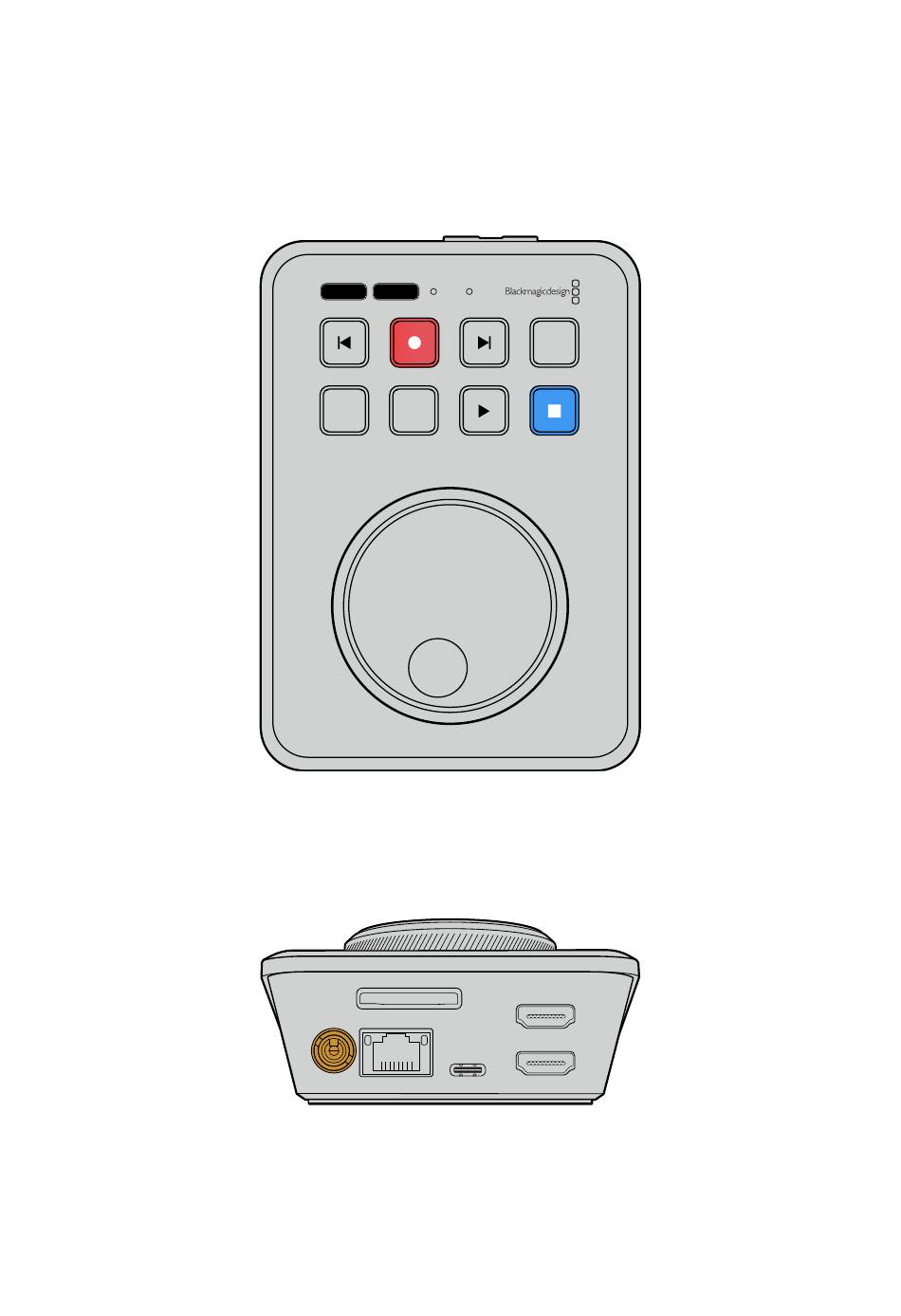

Secure the power adapter into HyperDeck Shuttle HD's power input
MENU SET
DISK SD
JOG SCR
SD CARD
+ 12V DC ETHERNET EXT DISK
CLIP
HDMI OUT
HDMI IN
Getting Started 5
