Record Settings

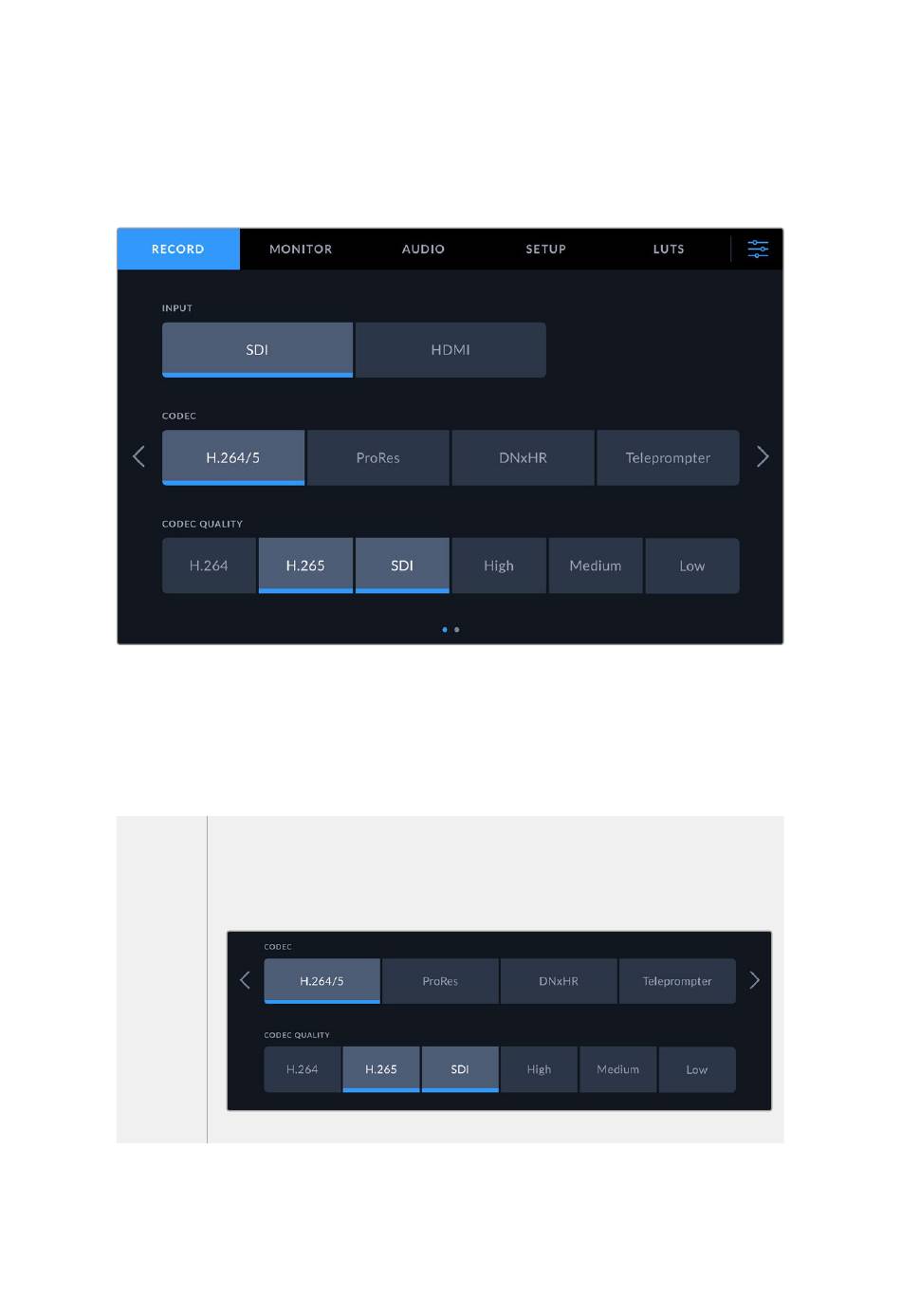

Use the 'record' tab to select your input and choose your codec and quality settings along with
trigger record options.
Record Page 1
Input
Once your source is connected, tap on SDI or HDMI.
Codec and Quality
With HyperDeck Shuttle 4K Pro, you can record compressed video using H.264, H.265, Apple
ProRes or DNx codecs. For each codec, there are different quality settings you can choose to
record to.
H.264/5 If you select H.264/5 as your recording codec there are four different quality settings
available: SDI, high, medium and low. High quality is the perfect choice for when you want
the highest quality with the least amount of compression. Low provides a much smaller file
size as the file is more compressed. Before selecting the quality, make sure you tap on H.264
or H.265, H.264 can be used when recording 1080p or lower resolutions.
Settings 39
