Monitor Overlay
Tap on the monitor icon on the left to access the monitor overlay settings. These settings
let you select and modify the appearance of overlay options including zebra, focus peaking,
guides, grid, false color, contrast, brightness and saturation. This is especially useful when using
the HyperDeck Shuttle 4K Pro as a field recorder.
Zebra
Zebra mode will help you to achieve the optimum exposure by displaying diagonal lines over
the areas of content that exceed the set zebra level. To enable zebra mode, toggle the switch to
on. Use the slider or the arrows to the left and right of the percentage icon to select your zebra
level. A level of 100% will mean any area of the image displaying diagonal lines is overexposed.

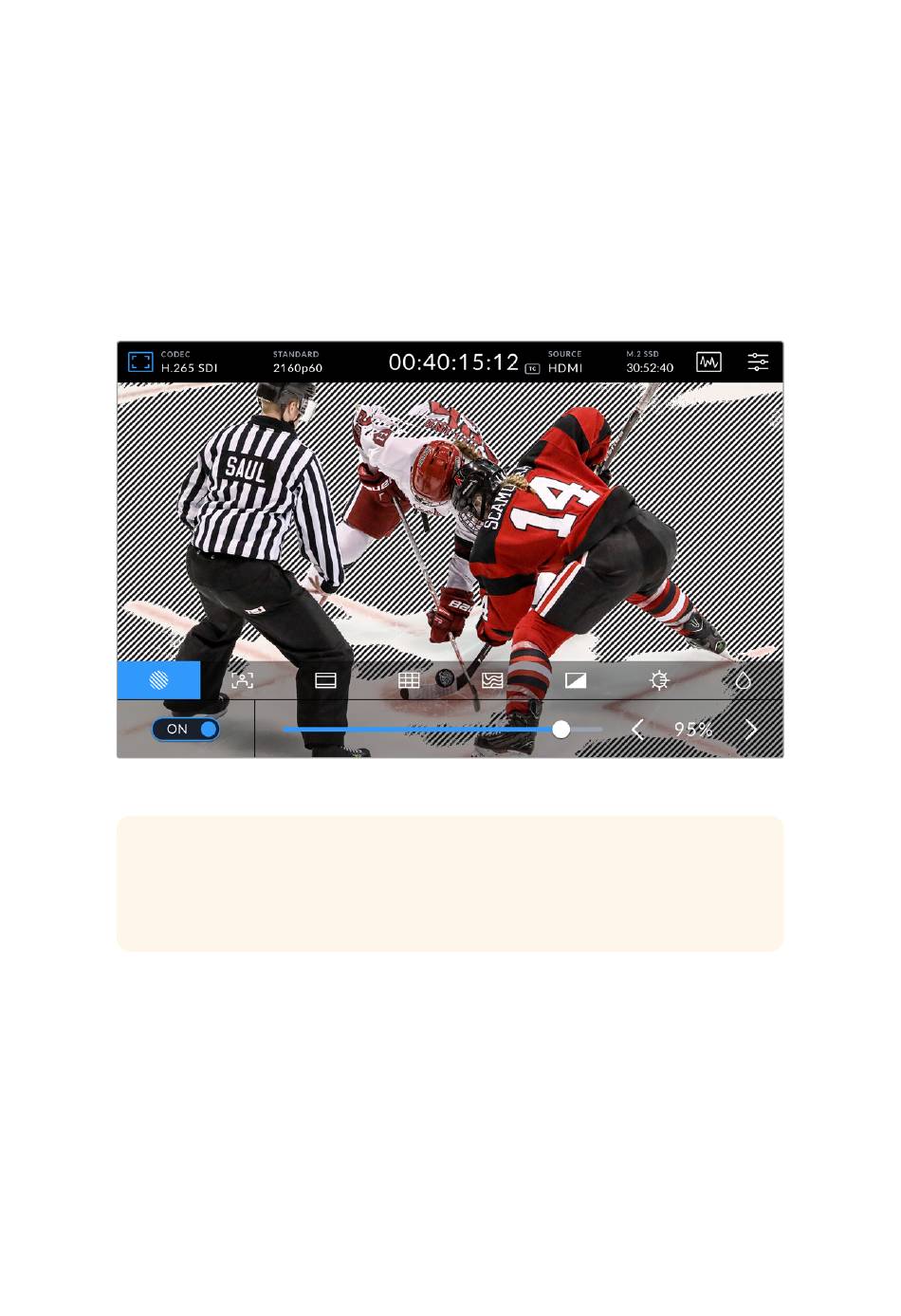

Use the slider or arrow to select your zebra percentage
TIP You can also set the zebra to highlight areas of your image that represent specific
video levels on a waveform, for example setting the zebra for 50% means you can
visually identify which regions of your image will appear at approximately 50% on a
waveform scope.
Focus Assist
Focus assist gives you powerful tools to help focus your image fast. Focus assist displays
edge lines on the sharpest areas of the image. To turn on focus assist, toggle the switch to on.
Sensitivity settings let you change how strong the lines are using values from 1-100. In images
with lots of detail and high contrast, the lines can be distracting, so in these conditions you can
move the slider to between 1 and 50.
Alternatively, for low contrast shots with less detail, move the slider towards 100 so the lines
are stronger and easier to see. If you find lines are too visually intrusive, you can select
'peaking' instead. For more information on how to set peak levels, see 'monitor settings' later in
this manual.
Using HyperDeck Shuttle 4K Pro 27
