LUTs

Display LUTs can be especially helpful when using the HyperDeck Shuttle 4K Pro as a field
recorder. They work by telling the unit what color and luminance output to display. This can
be useful for when you are using the 'film' dynamic range on your camera which has an
intentionally undersaturated, 'flat' appearance. By applying a display LUT, you can get an idea
of what your video will look like after it has been graded. 17 point, 33 point and 65 point .cube
LUT files are supported.

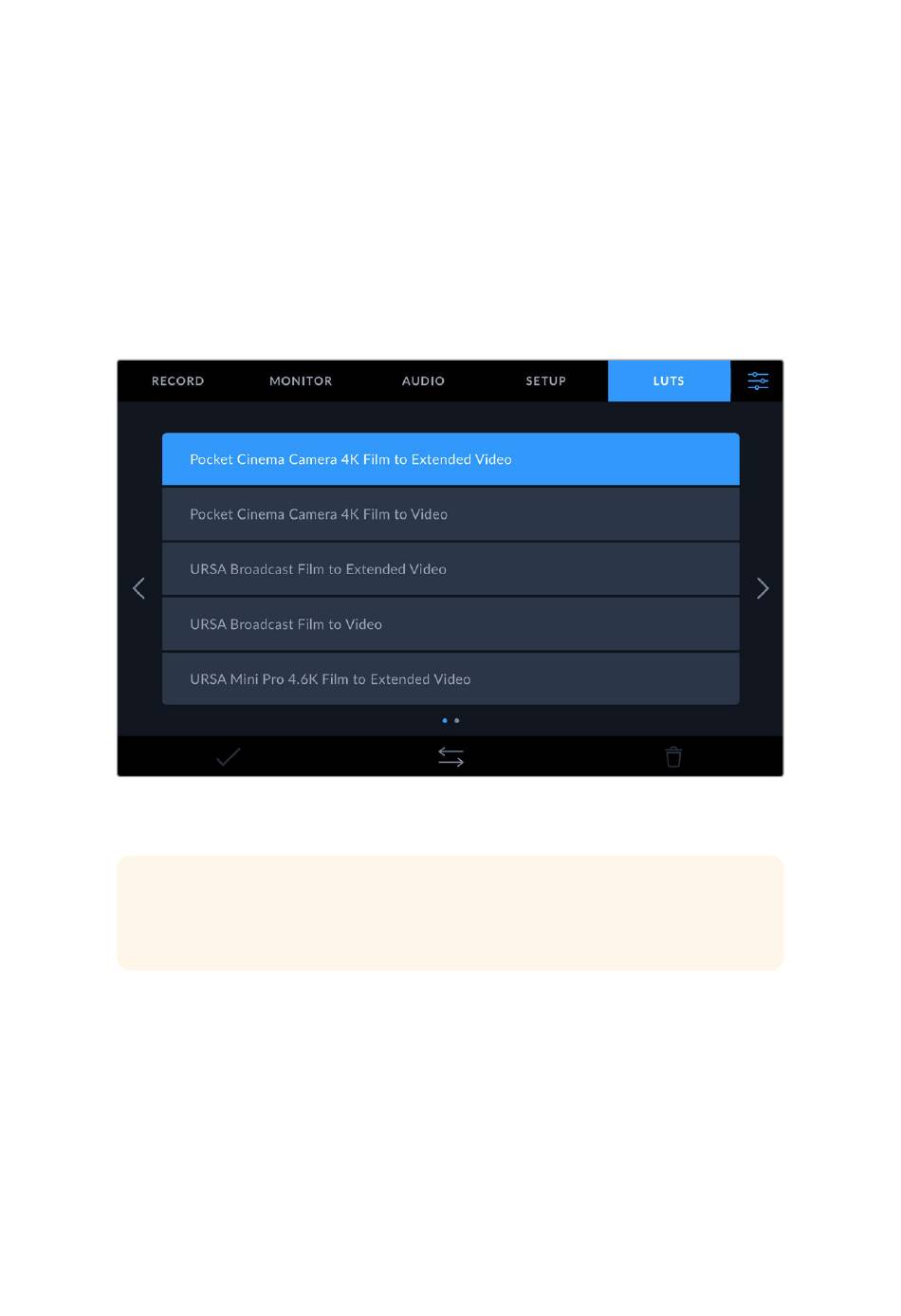

Display LUTs can be applied to the LCD display as well as the monitor out. To view a LUT you
first need to select your active LUT. In the LUT menu, tap on the LUT you want to use, it will
highlight blue. Tap the tick icon at the bottom. A vertical blue line will appear to the left of the
LUT name to confirm the LUT is active.
You can now press the '3DLUT' button on the front of the panel to display the selected LUT.
The button will illuminate when selected. Press the button again to toggle it off.
TIP You can also toggle the display LUT on the LCD and Monitor SDI via the 'monitor'
tab in the touchscreen menu. For more information, see the 'monitor settings' earlier in
this manual.
You are not limited to using the preloaded display LUTs either, you can import or
export your own!
To import a LUT:
1 On the LUTS tab, tap on the double head arrow icon at the bottom center of the display.
2 Under manage LUT, tap on 'import LUT'.
3 Select the storage media where the LUT is located and tap 'import'.
Settings 59
