Using the Optional Internal M.2 SSD

The internal M.2 SSD feature on HyperDeck Shuttle 4K Pro can be used as for recording
internally allowing other hardware and software, such as DaVinci Resolve to use the media over
a network.

Choosing Network Storage

Installing an M.2 SSD enables HyperDeck Shuttle 4K Pro to record broadcast quality video
internally. M.2 SSDs are very fast and can record the highest resolution with the lowest
compression.
By connecting HyperDeck Shuttle 4K Pro to a network, the unit becomes a disk recorder and
a shared storage solution. For example, with support for M.2 SSDs up to 8TB of storage, the
HyperDeck can serve as a central hub for multiple computers on the same network. This means
editors, colorists and other team members can access and work on growing files instantly,
saving time and boosting collaboration. You can even use the HyperDeck's internal M.2 SSD
storage for multi camera recording with DaVinci Resolve replay!

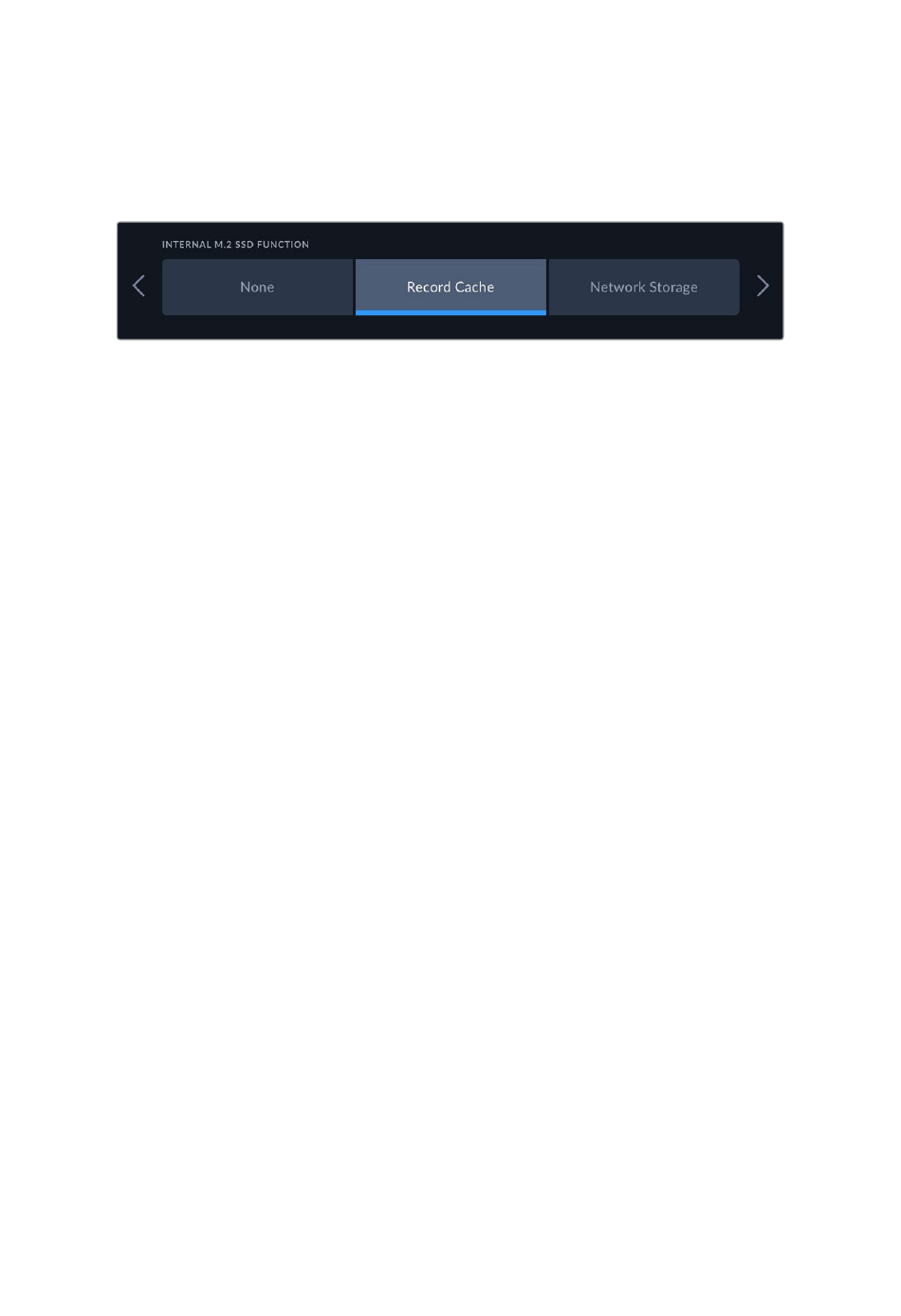

Choosing Record Cache

If you don't need to share the recordings over a network, or need to record on slower external
media you can use the 'record cache' setting. The cache works as short term storage, recording
your video and audio to the internal M.2 PCIe flash disk before transferring the files to your
selected media in 5 second segments. These 5 second segments then make up a single
continuous file on your storage media.
Even if you turn your HyperDeck Shuttle 4K Pro off, any files recorded prior that weren't
transferred to a SD card or external disk will still be there!
