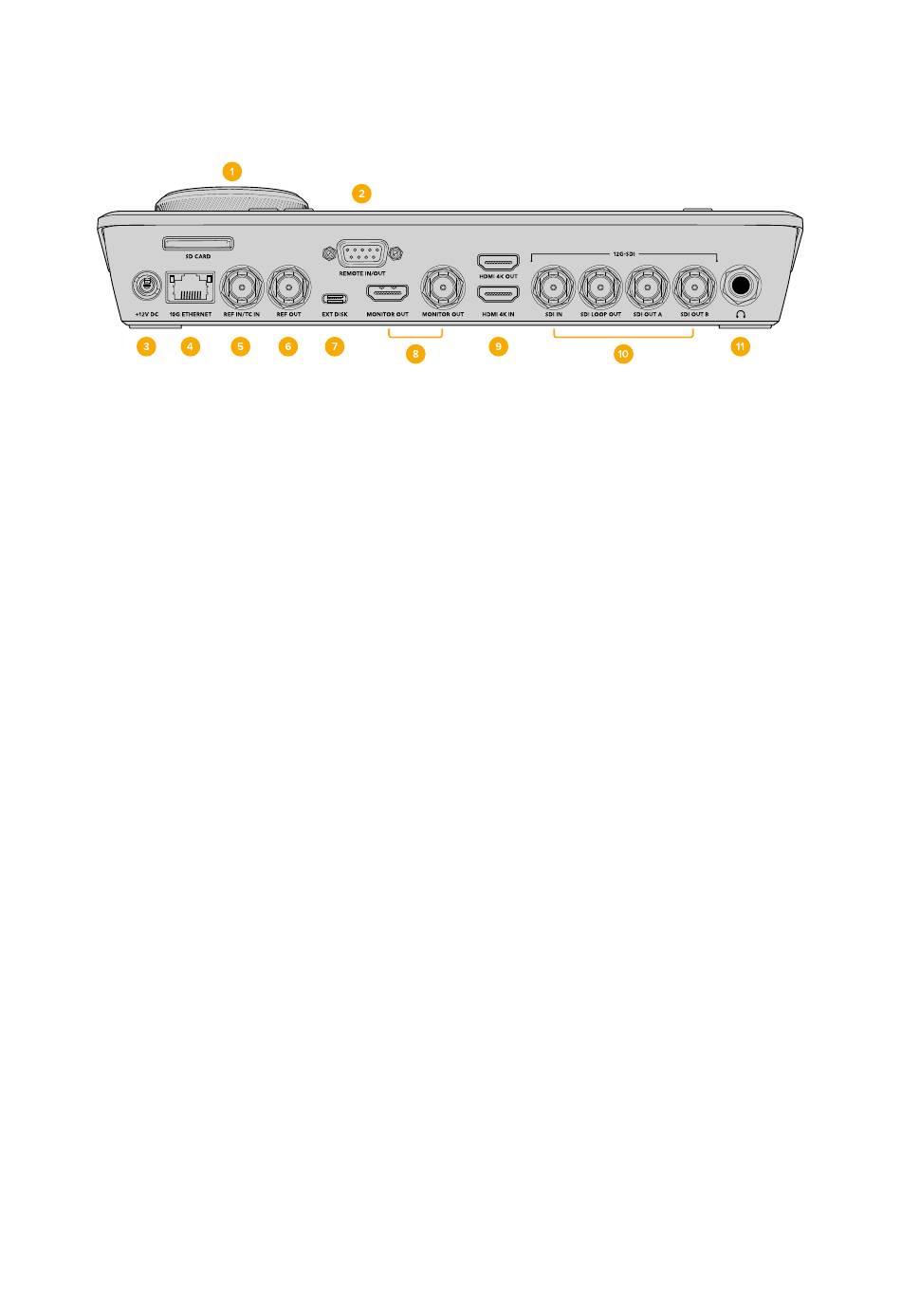

HyperDeck Shuttle 4K Pro Rear Panel

1 SD Card
Insert SD cards into the slot for recording and playback.
2 Remote
HyperDeck Shuttle 4K Pro features an RS-422 DE-9 connector for remote in. When remote
is enabled, you can mirror the transport controls from one HyperDeck to another. When
the HyperDeck Shuttle 4K Pro has the remote setting enabled it can be controlled by a
connected HyperDeck Studio Pro or Extreme model disk recorder.
3 Power
HyperDeck Shuttle 4K Pro is powered via an AC plug pack. The supplied power cable
included features a locking connector to prevent disconnection, but you can also use any
60W 12V power cable to power the HyperDeck Shuttle 4K Pro.
4 Ethernet
A 10Gb/s Ethernet connection lets you connect directly to your network for recording and
playback with Blackmagic Cloud Store or other network location. Access media recorded
onto SD cards, external disks or the optional internal M.2 SSD via the web media manager,
SMB file sharing or an FTP client for fast transfers or control the unit remotely using
HyperDeck Ethernet Protocol.
Connect to the same network as an ATEM Switcher and you can use your HyperDeck
for playback using the HyperDecks palette in ATEM Software Control or via an ATEM
broadcast panel. For more details on transferring files via an FTP client, see the
'transferring files over a network' section later in this manual.
5 Reference In and Timecode In
Connect a reference or timecode BNC to the 'ref in/tc in' connection on the rear to receive
external reference or timecode. To use external an external timecode source, select via the
second page of the setup menu. You can also connect a reference signal to the reference
input and sync your HyperDeck to an external master sync source.
6 Reference Out
HyperDeck Shuttle 4K Pro features a built in sync generator that generates stabilized black
burst and tri-sync video reference signals. This means you can connect your HyperDeck's
reference output to other video equipment's reference input and lock them to a master
reference signal generated by your HyperDeck.
