Using HyperDeck Shuttle 4K Pro

HyperDeck Shuttle 4K Pro models include a large 7 inch LCD touchscreen for live monitoring as
well as a menu for setting your codec, overlay and even teleprompter setup.
The HyperDeck Shuttle 4K Pro 2TB also includes 2 terabytes of pre installed media so you
can start recording straight away. The following section of the manual details the touchscreen
features including monitor overlays and the internal network storage.

Touchscreen Features

The intuitive 7 inch display lets you view and select many of the HyperDeck Shuttle 4K
Pro functions directly from the touchscreen display including accessing the menu and
storage media.

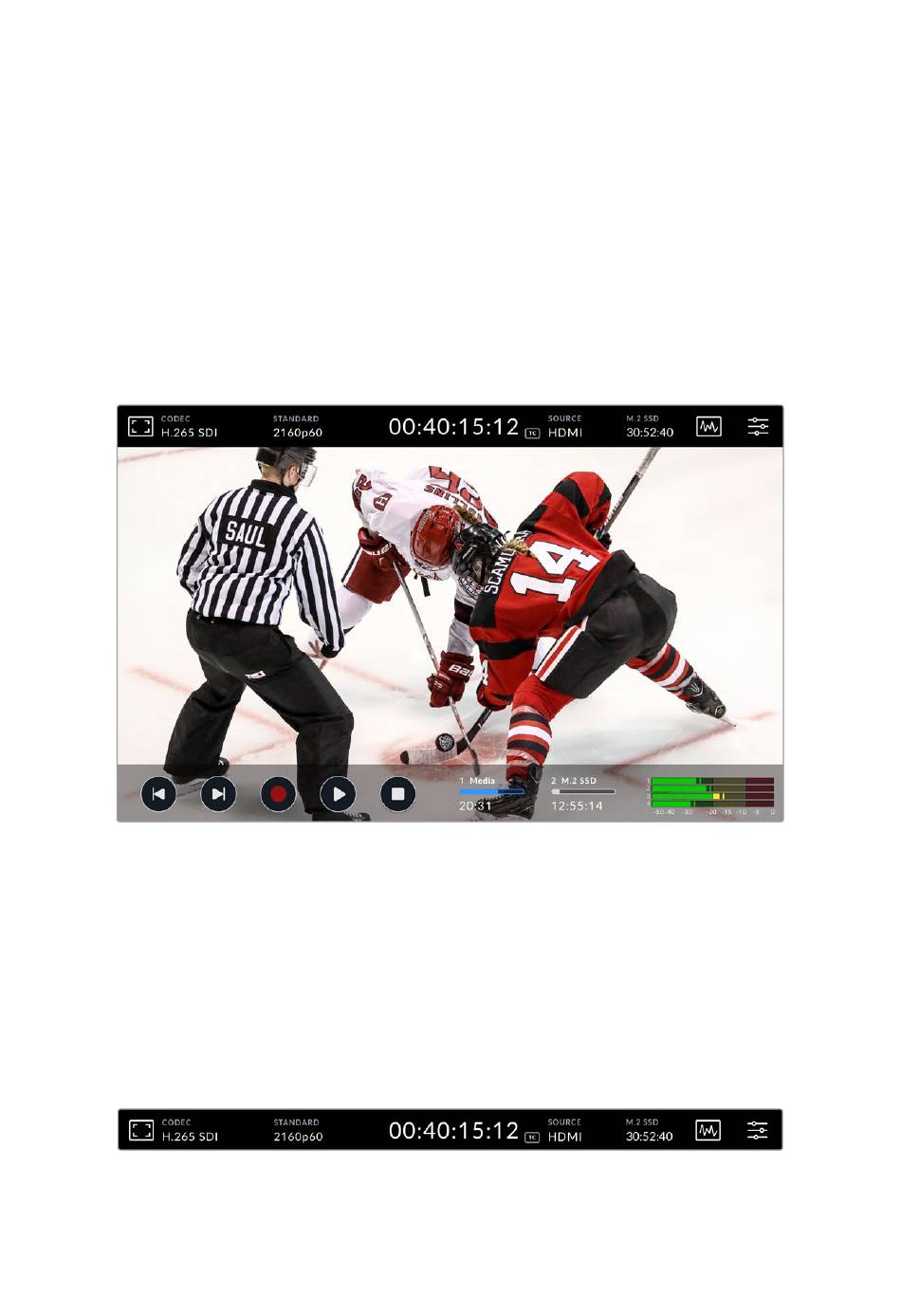

The interactive touchscreen display lets you view and select options directly from the screen
The touchscreen display includes an upper and lower toolbar. These toolbars display settings
and status information, for example the current source, or the clip currently being recorded or
played. Settings can also be adjusted by tapping on their relevant icons, for example to change
the source, tap on the 'source' icon and then tap on one of the source options.
Indicators show the current status for items such as the source video standard and frame rate,
timecode, media record time remaining, audio levels and transport controls.
The lower toolbar can be hidden or revealed by swiping the touchscreen up or down.

Upper Toolbar

Navigate directly to the related menu options by tapping 'source' or 'codec'.
