Zebra
Tap the 'zebra' setting on to enable zebra guides. When your zebra guides are on, diagonal
lines with appear to let you know what areas may be clipped.
Focus Assist
Toggle focus assist 'on' to view the focus assist overlay lines. Focus assist type and color
options can be set under LCD or monitor outputs.
Frame Guides
To see frame guide overlays for different film, television and online aspect ratios, toggle on
frame guides. To choose which frame guide is displayed tap on the monitor overlays icon on
the home screens and select from the available options including 2.40:1, 2:1 and 16:9.
Grid
To see one of three grid options to assist with framing, toggle 'grid' on. Grid options include
thirds, center dot and crosshair. Toggle grid on or off. To set the desired grid, tap on the menu
icon in the top right corner to return to the LCD display and tap on the 'monitor overlays' option.
False Color
The 'false color' setting toggles the appearance of false color exposure assistance on the LCD
touchscreen. For more information on false color options, see the 'upper toolbar' section earlier
in this manual.
You can also turn on the display options for the LCD by tapping on the monitor overlays icon on
the home screen. More information on selecting frame guides and other monitor overlays can
be found earlier in this manual under upper toolbar features.

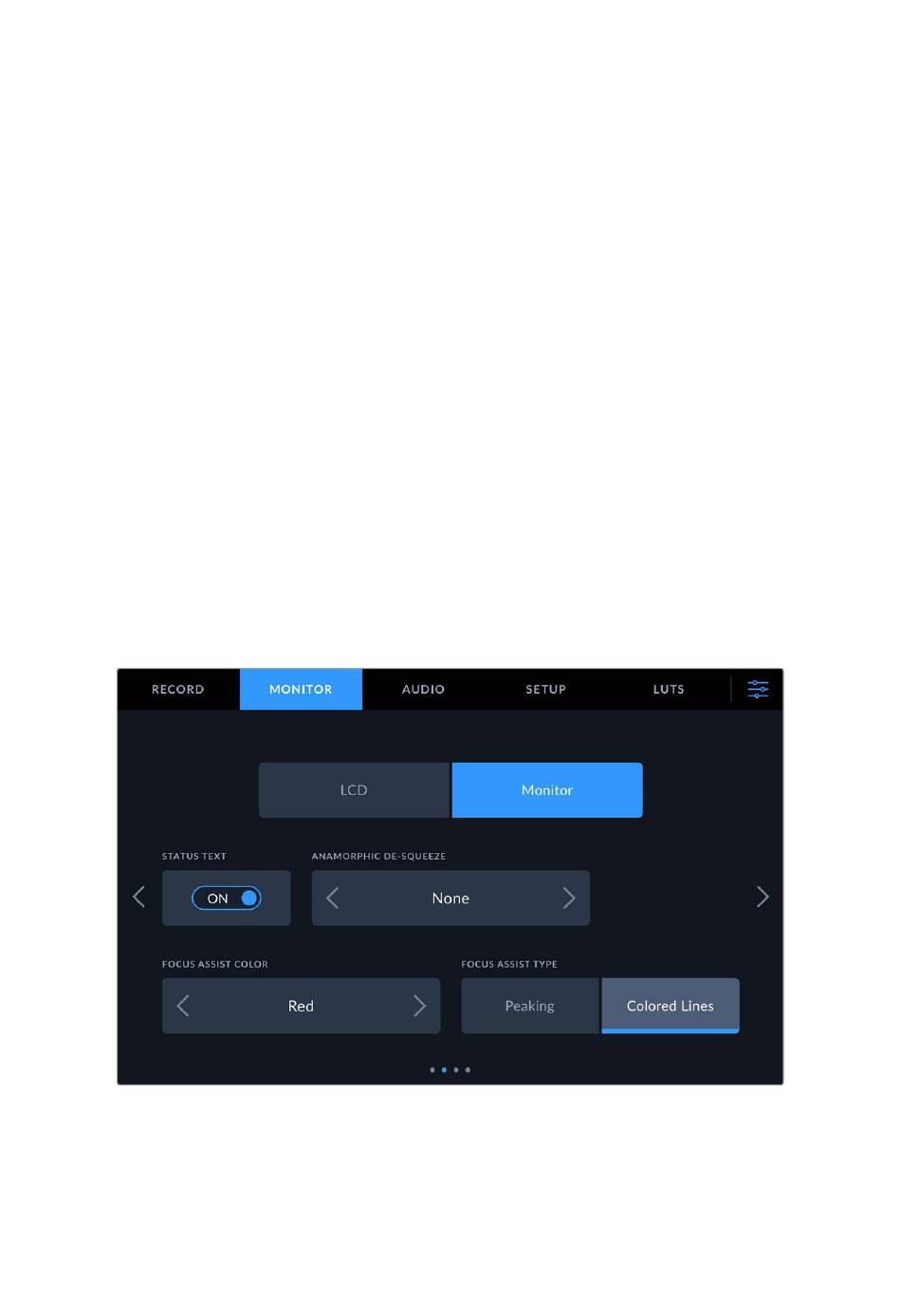

Monitor Page 2
You can adjust the appearance of focus assistance settings using the focus assist color and
type settings. These options affect the look of for both the LCD display and the monitor output.
