Storage Menu - Blackmagic Design Hyperdeck Shuttle Hd Installations- Und Bedienungsanleitung

Recorded Audio Channels
HyperDeck Shuttle HD can record up to 8 channels of PCM audio at a time. To select the number
of channels to record, expand the recorded audio channels list and select 2, 4 or 8 channels.
If the codec is set to H.264, you can also select 2 channels of AAC audio so you can upload
recordings directly to YouTube.

Storage Menu

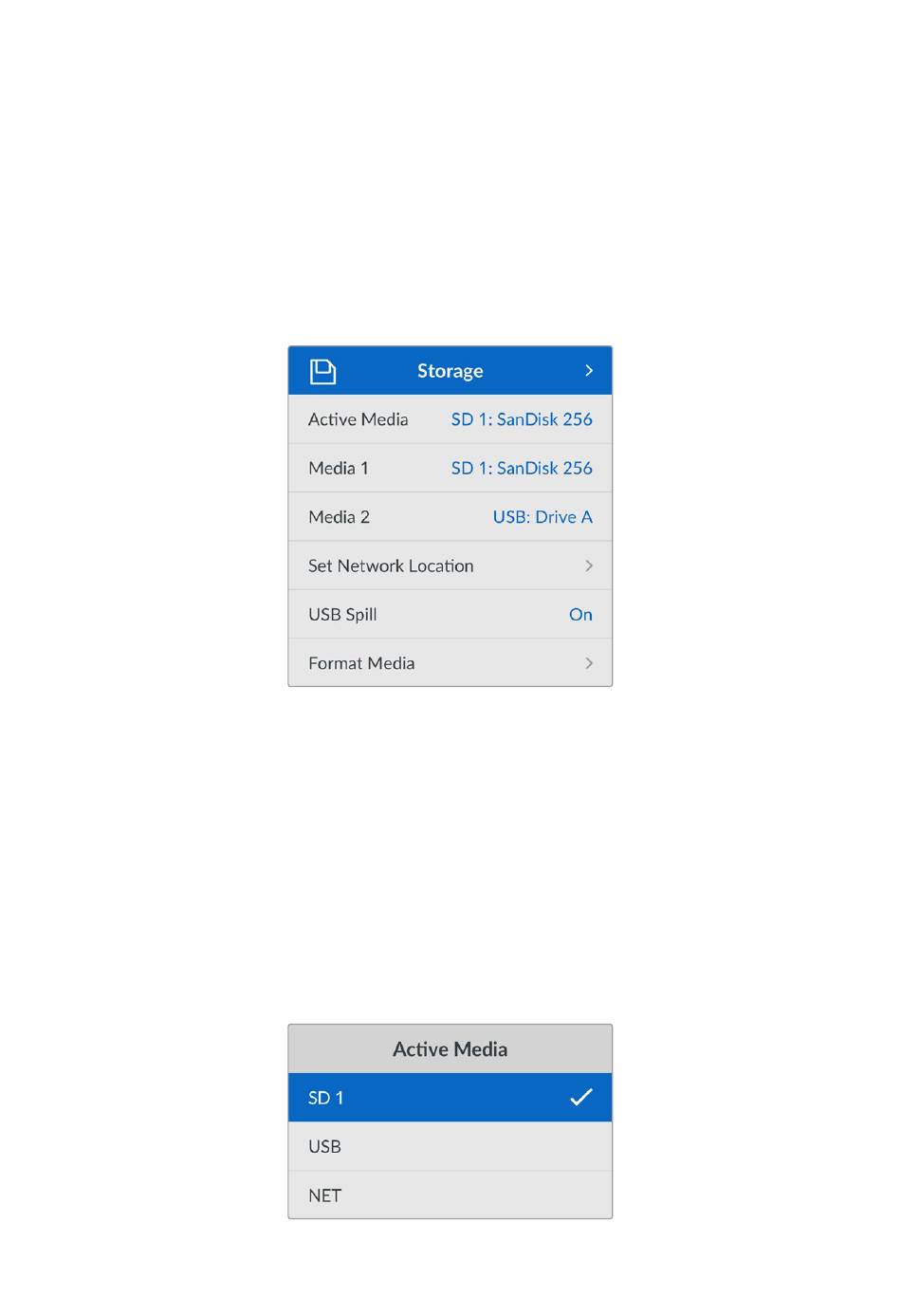

Connected media will appear in the storage settings. Media 1 will list the name of the connected
SD card and media 2 will display any USB flash disk plugged into to the ext disk connector.
When using a USB hub, such as Blackmagic MultiDock 10G, the active disk is displayed.
Active Media
When using HyperDeck Shuttle you can connect one SD card, multiple external drives and
network locations all at once. This means you can access terabytes of recording space all from
the one HyperDeck Shuttle disk recorder!
If you only have a single SD card or drive connected, it is your active media for all playback
and recording. If you are using more than one you can select which one you want to use for
recording and playback.
Selecting your active media:
1 Using the search dial, highlight 'active media' in the storage menu and press the
flashing set button.
2 Attached media will appear in the list. Using the search dial select the media you
want to record to.
Settings 16
