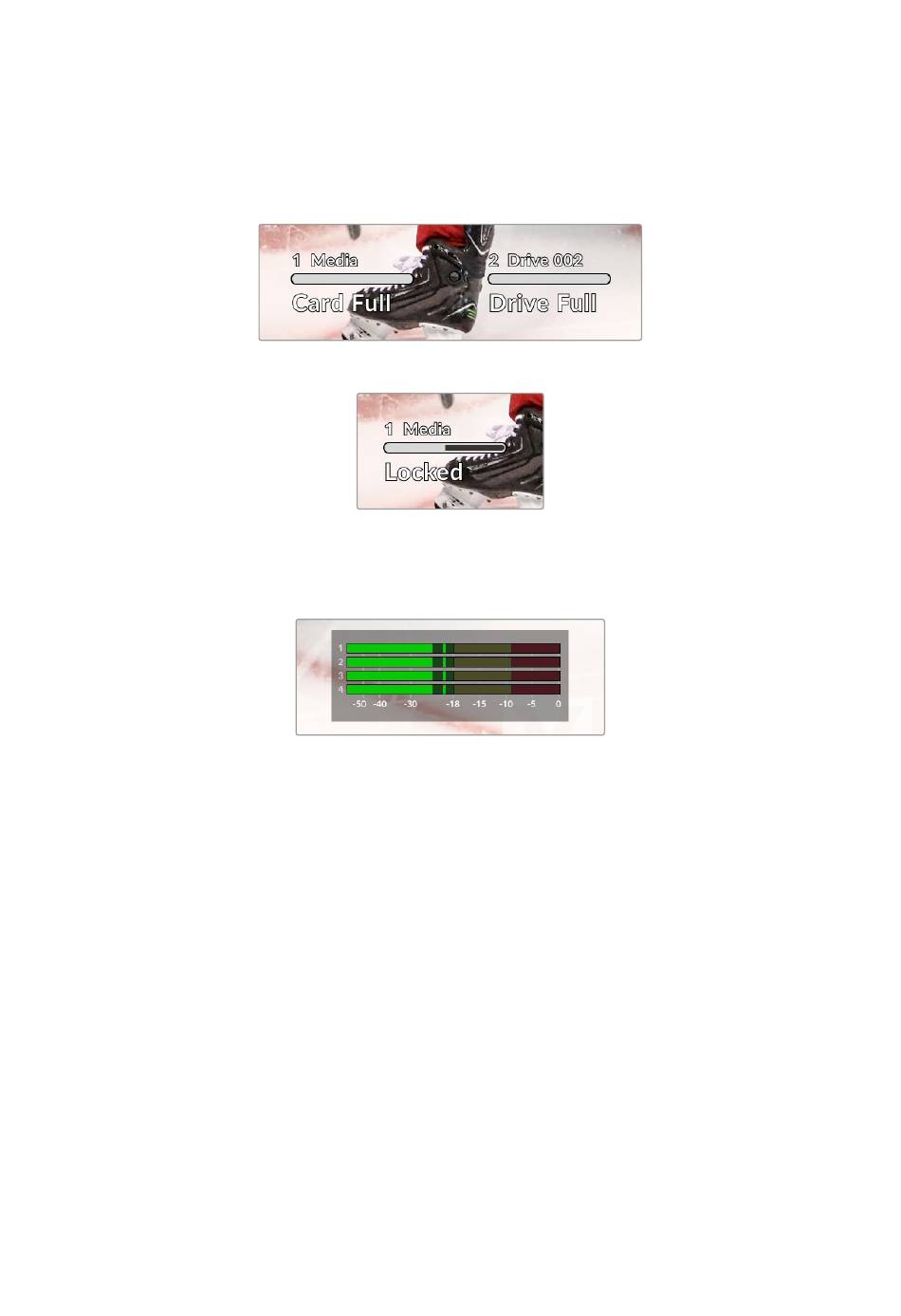

Slot status
'No card' and 'no drive' will display if there is no media connected to that media slot.
Once an SD card, USB drive or the M.2 SSD disk is full, the icon will display 'card full' or
'drive full' so you know it's time to swap out the storage media. If you have an external disk
connected, the recording will spill over once the SD card is full.
A locked drive will be shown with 'locked' under the progress bar.
Audio Meters
On screen audio meters will display 4 channels of audio. These can be set to either PPM or VU
meters via the audio tab of the LCD menu.
To select which channels you want to monitor, or to change to a different audio meter, use
the audio tab of the LCD menu. For more information, refer to the 'settings' section earlier in
this manual.
Using the Monitor Output 73
