Set Network Location
HyperDeck Shuttle can play HD media from Blackmagic Cloud and other network access
storage via Ethernet.
To connect to a network folder:
1 Using the search dial and set button, select 'set network location'. A local network search
dialog will appear.
2 Any servers found on your local network will appear in a list. Highlight the server name
using the search dial and press 'set' to select. A list of available shares on the server will
appear. Using the search dial highlight the share you want to select and press 'set' and
continue until the folder you want to use is displayed at the top of the screen.

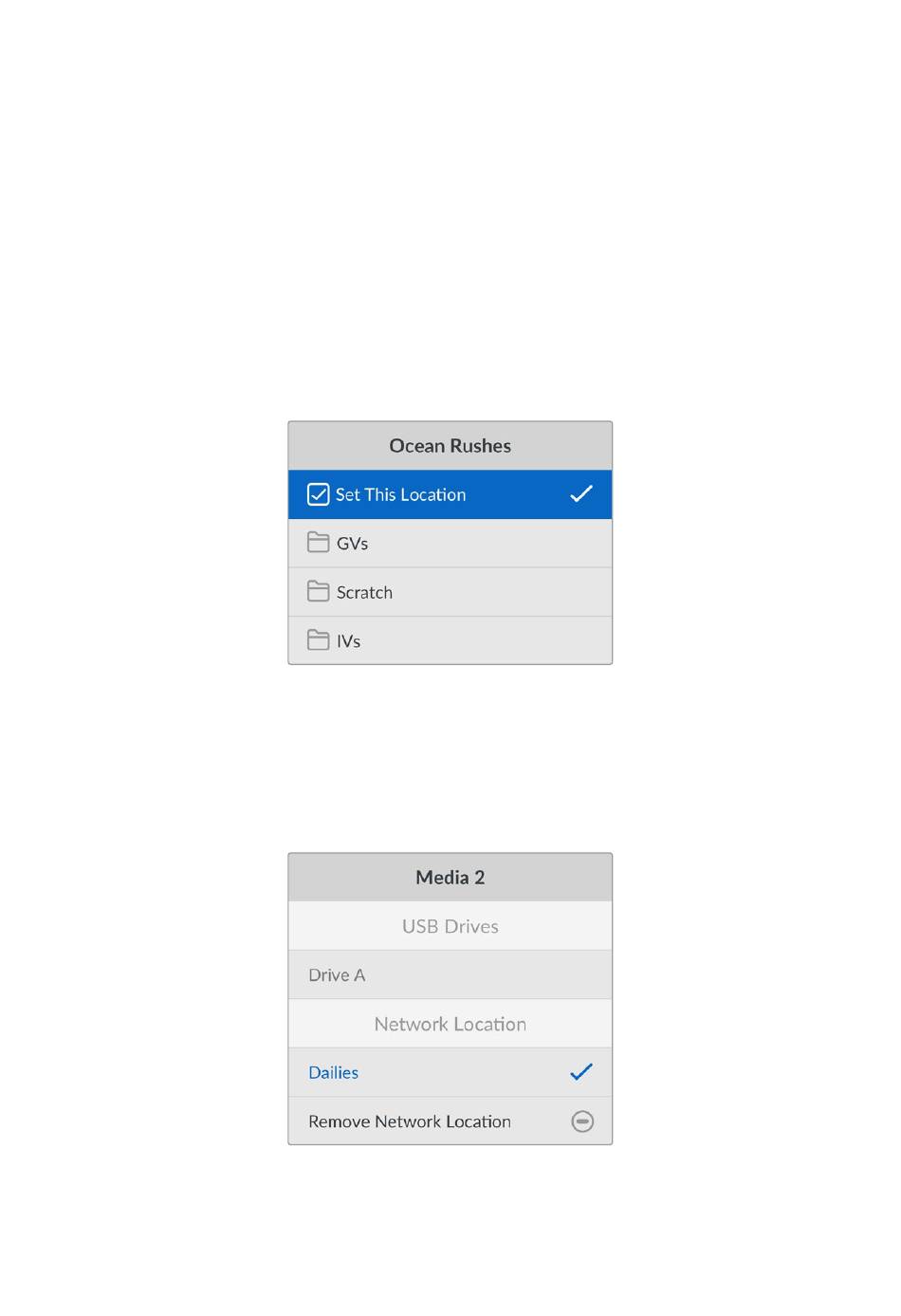

3 The folder name will now appear at the top of the LCD screen. To select this folder for
recording and playback use the search dial to select 'set this location' and press set. A tick
will appear to the right.
4 Once connected, the location will appear in the media 2 storage list under network locations.
The second media slot on HyperDeck Shuttle disk recorders is allocated for both USB and
connected network folders. To select between connected USB drives and network location,
select 'media 2' from the storage media menu and press the flashing 'set' button. From the
media 2 list select the storage you want to use and press set button. You will now be returned
to the storage menu. You can also remove network locations using the media 2 menu and
selecting 'remove network location' at the bottom of the menu.
