Playback controls include record, stop, play and loop.

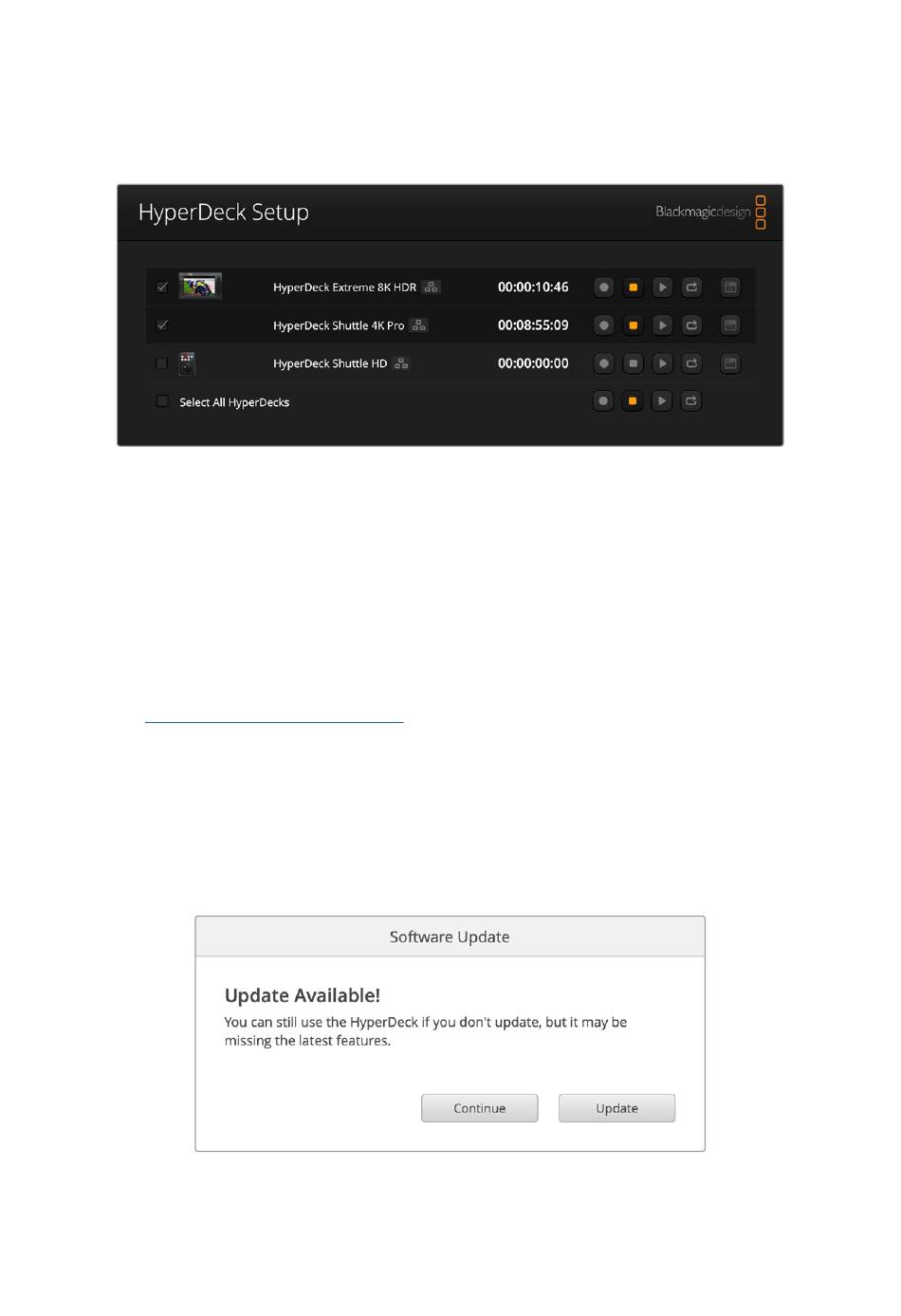

To press play on multiple HyperDeck disk recorders on your network at the same time:
1 Click the checkbox beside each HyperDeck you want to control.
2 Click on the play button. You can also loop playback by clicking on the loop icon.
To control all the HyperDecks on your network tick the 'select all HyperDecks' checkbox
and then use the transport controls to the right.
It's worth noting that this network control may not be as precise as using remote control
via RS-422.

Updating the Internal Software

To update the internal software:
1 Download the newest Blackmagic HyperDeck Setup installer from
www.blackmagicdesign.com/support.
2 Run the Blackmagic HyperDeck Setup installer on your computer and follow the onscreen
instructions.
3 After installation is complete, connect your HyperDeck Shuttle to the computer via the USB
or Ethernet connector on the rear panel.
4 Launch Blackmagic HyperDeck Setup and follow any onscreen prompt to update
the internal software. If no prompt appears, the internal software is up to date and there is
nothing further you need to do.
Blackmagic HyperDeck Setup 105
