Install feed hopper 9 and outlet hopper 31 by bolts and hardware. Connect safety wires 87 with engine, pull out
the reset pin on the switch (left side on switch) for start.
FILLING THE ENGINE OIL
During transport, the engine of the machine is without oil, therefore it must be topped up before the first start-
up. Only use fresh oil in accordance with the recommendation for lubricating the engine (see the technical data
table):
Place the machine on a level, horizontal surface.
•

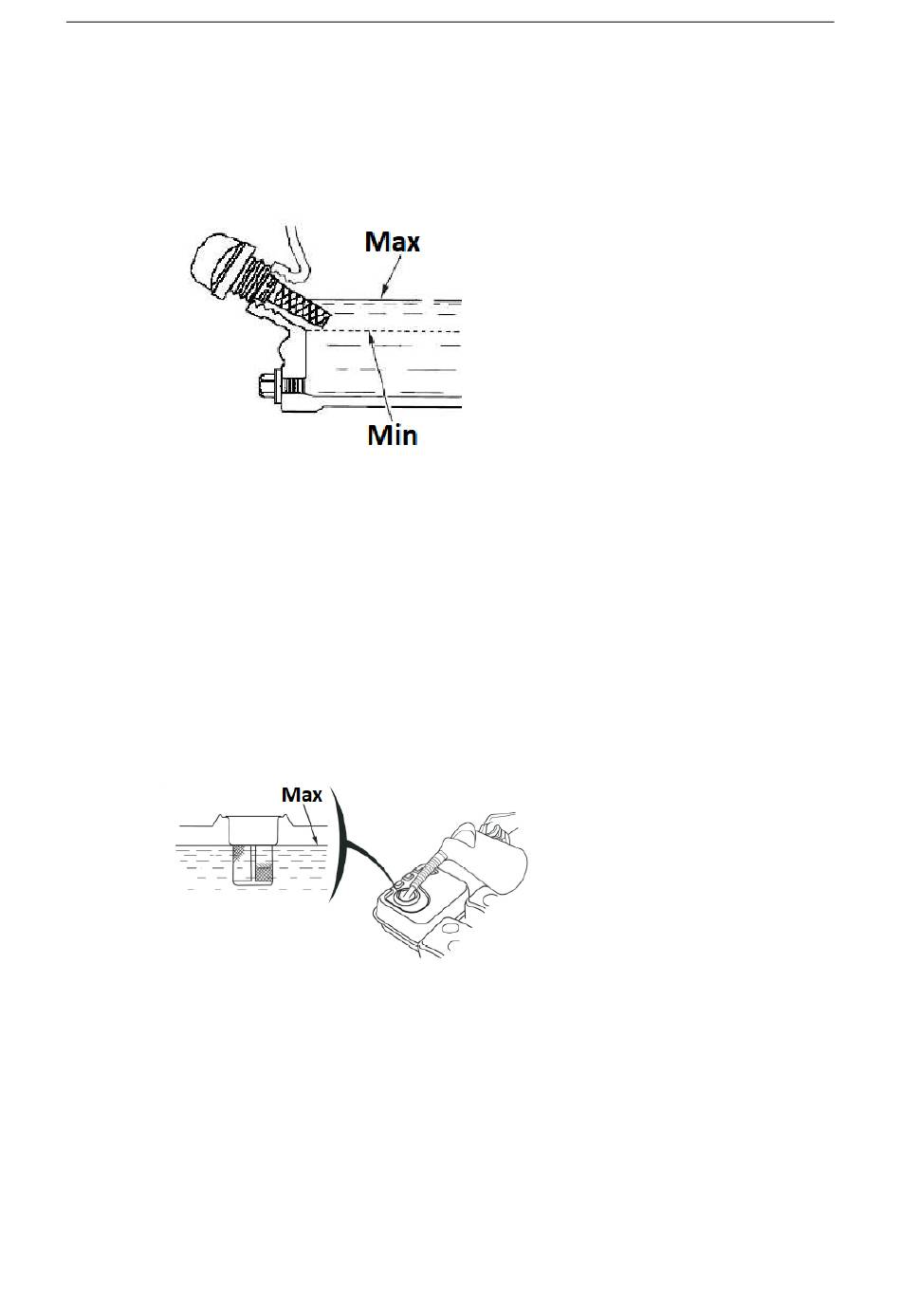

• Unscrew the orange engine oil filler cap (with a built-in dipstick - see the above picture) and
pour oil through its opening (use a funnel, for example), taking care not to pour more than the
permissible level (marked field on the dipstick), which we check on the dipstick of the cap after
it is fixed in the hole.
• It is recommended to keep the level closer to the upper than the lower acceptable limit. In case
of overflowing beyond the permissible level, excess oil can be sucked out through the plug hole.
ATTENTION: operating the engine with the wrong oil level can lead to engine damage! Check
the engine oil level before each machine operation when the engine is still cold.
REFUELING
ATTENTION: The engine of the device is adapted only to burn unleaded gasoline without oil admixtures. The use
of other fuel that is not fresh and with too high an ethanol content or of low quality can lead to engine failure.
Refuel only with the engine off, paying close attention not to spill fuel over the engine, especially when it is hot
- risk of fire! If the engine is warmed up, wait at least 2 minutes before refueling.
Place the machine on a level, horizontal surface.
•
• The fuel tank is located on the top of the unit.
Unscrew the fuel filler cap (with the dispenser icon). Do not pull out the strainer filter inside the
•
opening!
Refill fuel through the plug opening - the maximum fuel level in the tank should not exceed the
•
upper limit of the red level gauge in the strainer filter, i.a. reach the bottom of the filler neck as
max.
BATTERY CONNECTION
CAUTION: Be careful not to connect the battery in reverse polarity, as this will short circuit the battery charging
system!
• Connect the positive/red (+) cable to the starter solenoid terminal (A).
