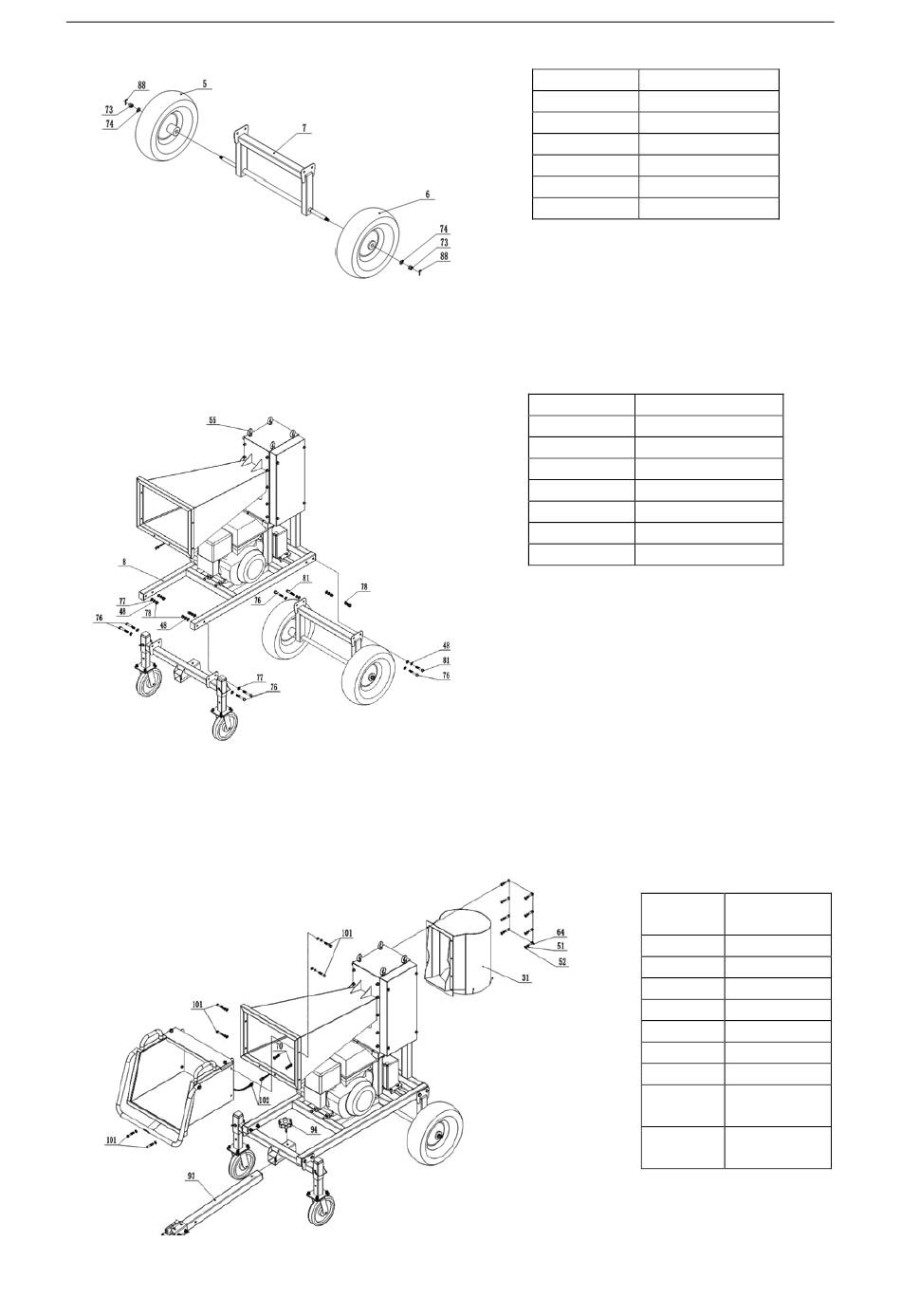

Install the left and right tires 5 and 6 onto the back wheel frame 7 with hardware and wait for the next

installation step.

D. Front wheels/ back wheel frame/main frame assembly

At least two eyebolts 55 should be selected as the main lifting points, lift main frame 8 slowly to a height of

50-70cm above the ground with a lifting device with a lifting capacity of over 1000kg, paying attention to

safety. As shown in the above figure, Front wheels and back wheel frame can be fixed on the main frame 8

by hardware.

Outlet hopper/ upper part of feed hopper/main frame assembly

Part description

Back wheel frame

Part description

Spring washer

Eyebolt – for lifting

Spring washer
