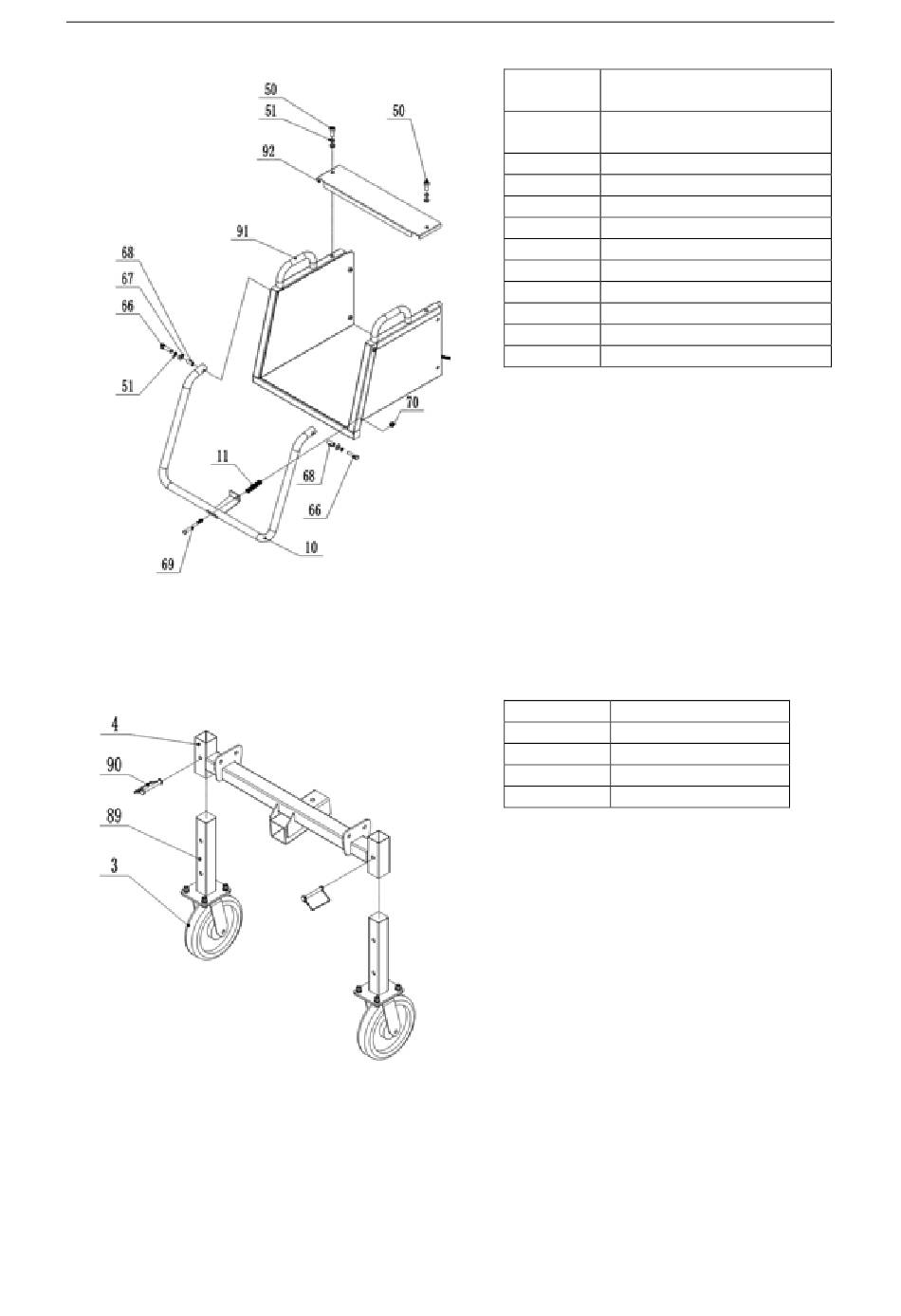

Firstly, install the safety bar 10 as shown in the figure by hardware and spring to fix it onto the upper part of
feed hopper 91.Then install top cover for upper part of feed hopper 92 onto the upper part of feed hopper
91 by bolt 50, and wait for the next installation step.
B. Front wheels assembly
Install front wheel foot 89 as shown in the figure onto the front wheel frame 4 by D-pin 90, and wait for the
next installation step.
C. Back wheel frame assembly
EN
Part
Part description
number
Top cover for upper part of
92
feed hopper
91
Upper part of feed hopper
70
Lock nut
69
Bolt
68
Bushing
67
Washer
66
Bolt
51
Spring washer
50
Bolt
11
Spring
10
Safety bar
Part number
90
89
4
3
Part description
D-pin
Front wheel foot
Front wheels frame
Omni-directional wheel
