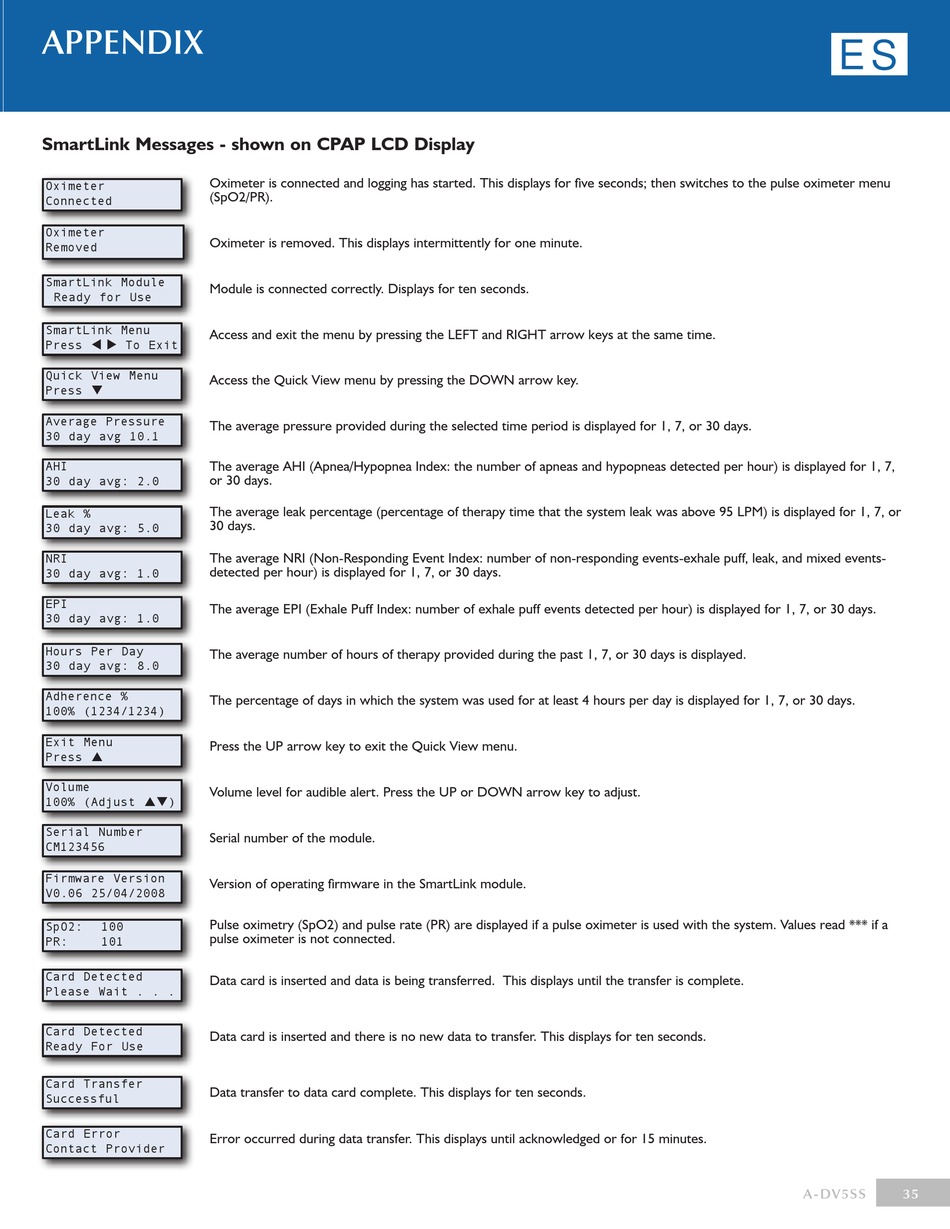

SmartLink Messages - shown on CPAP LCD Display
Oximeter is connected and logging has started. This displays for five seconds; then switches to the pulse oximeter menu
Oximeter
(SpO2/PR).
Connected
Oximeter
Oximeter is removed. This displays intermittently for one minute.
Removed
SmartLink Module
Module is connected correctly. Displays for ten seconds.
Ready for Use
SmartLink Menu
Access and exit the menu by pressing the LEFT and RIGHT arrow keys at the same time.
Press   To Exit
Quick View Menu
Access the Quick View menu by pressing the DOWN arrow key.
Press 
Average Pressure
The average pressure provided during the selected time period is displayed for 1, 7, or 30 days.
30 day avg 10.1
The average AHI (Apnea/Hypopnea Index: the number of apneas and hypopneas detected per hour) is displayed for 1, 7,
AHI
or 30 days.
30 day avg: 2.0
The average leak percentage (percentage of therapy time that the system leak was above 95 LPM) is displayed for 1, 7, or
Leak %
30 days.
30 day avg: 5.0
The average NRI (Non-Responding Event Index: number of non-responding events-exhale puff, leak, and mixed events-
NRI
detected per hour) is displayed for 1, 7, or 30 days.
30 day avg: 1.0
EPI
The average EPI (Exhale Puff Index: number of exhale puff events detected per hour) is displayed for 1, 7, or 30 days.
30 day avg: 1.0
Hours Per Day
The average number of hours of therapy provided during the past 1, 7, or 30 days is displayed.
30 day avg: 8.0
Adherence %
The percentage of days in which the system was used for at least 4 hours per day is displayed for 1, 7, or 30 days.
100% (1234/1234)
Exit Menu
Press the UP arrow key to exit the Quick View menu.
Press 
Volume
Volume level for audible alert. Press the UP or DOWN arrow key to adjust.
100% (Adjust )
Serial Number
Serial number of the module.
CM123456
Firmware Version
Version of operating firmware in the SmartLink module.
V0.06 25/04/2008
Pulse oximetry (SpO2) and pulse rate (PR) are displayed if a pulse oximeter is used with the system. Values read *** if a
SpO2: 100
pulse oximeter is not connected.
PR: 101
Card Detected
Data card is inserted and data is being transferred. This displays until the transfer is complete.
Please Wait . . .
Card Detected
Data card is inserted and there is no new data to transfer. This displays for ten seconds.
Ready For Use
Card Transfer
Data transfer to data card complete. This displays for ten seconds.
Successful
Card Error
Error occurred during data transfer. This displays until acknowledged or for 15 minutes.
Contact Provider
