[g] Original width sensor (DWS)
The DWS uses a photo interrupter which is integrated with a light emitting diode and a photo transistor. When there is an original, the lever-type
actuator interrupts the optical path.
The circuit composed of Q12, R100, R29, and R47 is the connector disconnection sense circuit. When the connectors are not disconnected, the
base voltage (5V) of Q12 is divided by R100 and the LED of the photo interrupter to be about 1.2V, conducting the transistor.
At that time, the photo transistor is turned off under "paper empty" state, and the collector current of Q12 flows into R47.
Therefore, the signal DWS turns HIGH by the value (about 4.5V) obtained by dividing +5V with R49 and R47. When in "Paper present," the photo
interrupter turns ON and the collector current of Q12 flows into the photo interrupter. As a result, signal DWS turns LOW.
On the other hand, when a connector is disconnected, the base voltage of Q12 becomes +5V, turning off the transistor. Therefore, signal DWS turns
LOW and it is judged as "Paper present."
Signals are inputted through the noise filter composed of R33 and C21 to the gate array (IC7 54 pin).
Original width
sensor DWS
[h] Open/close switch (AUOD, FGOD, TGOD) input circuit (TGOD --- SF-A56 only)
This circuit senses open/close of the ADF unit, the paper feed guide, and the reverse guide, and is connected with three microswitches. Any switch
is closed when its open/close section is closed.
The FGOD directly opens/closes the power to the paper feed motor and the paper feed solenoid. If the FGOD is not closed, the power is not
supplied to the paper feed motor and the paper feed solenoid.
The AUOD and the TGOD are connected in series to +24V, and directly close the power to the drive sections except for the paper feed motor and
the paper feed solenoid. That is, the power is supplied to the drive sections except for the paper feed motor and the paper feed solenoid only when
the two switches (AUOD, TGOD) are closed.
When the paper feed guide open/close switch is turned on, +24V is applied to the cathode of ZD7, supplying the base current to Q8, conducting Q8,
supplying an open/close signal (a close signal in this case) to IC7 57 pin.
Operations in the other open/close switch circuits are the same as above, and each open/close signal is inputted to IC7.
R44 and C40 form a snubber circuit which absorbs an induced voltage generated when the open/close switch is opened during rotation of the DC
motor.
ADF open/close
switch AUOD
Reverse guide
open/close switch
TGOD
Paper feed guide
open/close switch
FGOD
TLP1240(C5)
1
CN3-7
VCC
2
VOUT
CN3-9
3
GND CN3-8

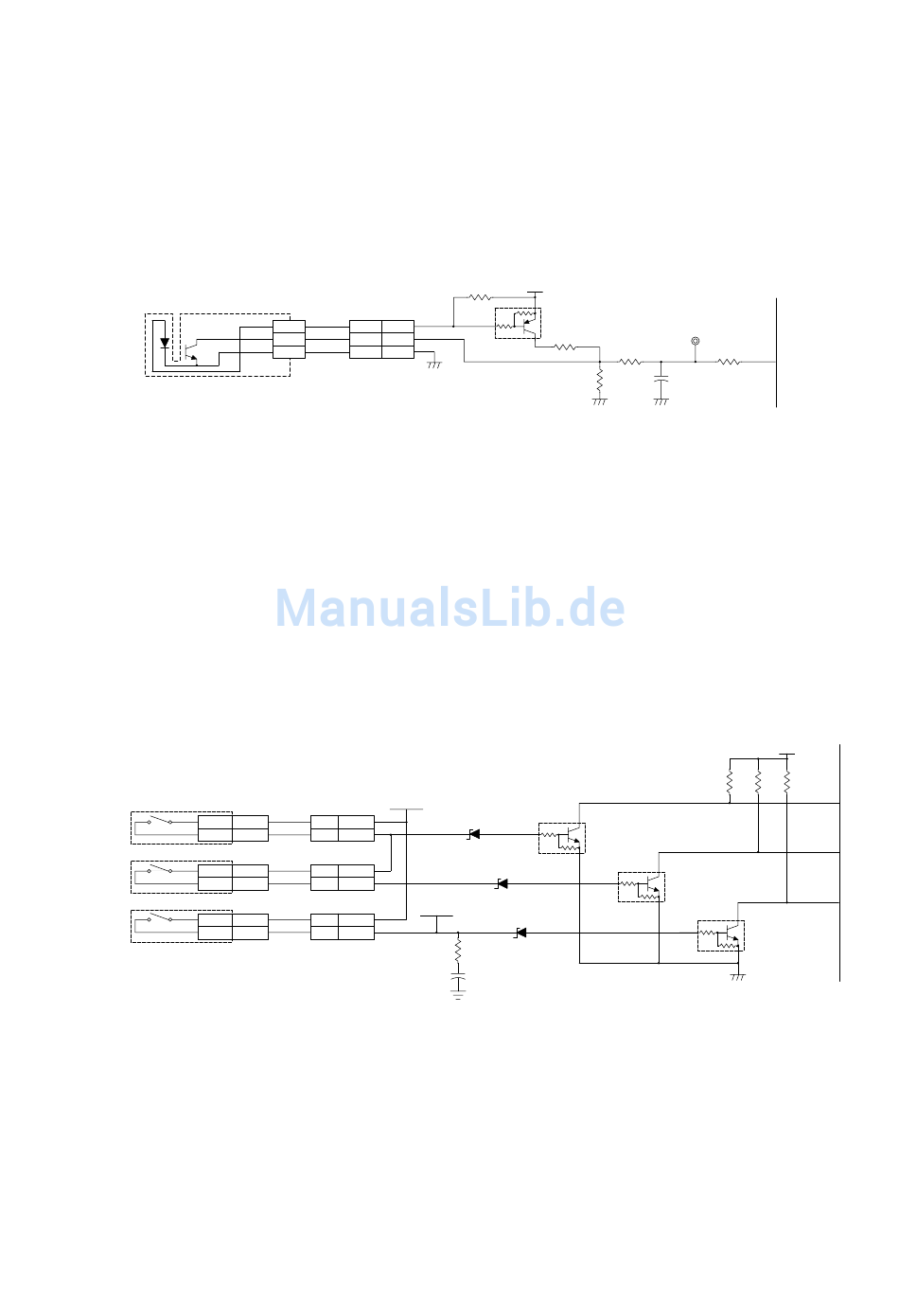

Original width sensor input circuit
2
DC+24V DC+24V
CN30-2 CN5-8
1
CN30-1 AUOD CN5-7 AUOD
1
CN31-1 AUOD CN7-1 AUOD
2
TGOD TGOD
CN31-2 CN7-2
2
CN29-2 DC+24V CN5-6 DC+24V
1
CN29-1 FGOD CN5-5 FGOD
Open/close switch input circuit
