History Function - ECOLAB Versatronic Betriebsanleitung

Browse pen views

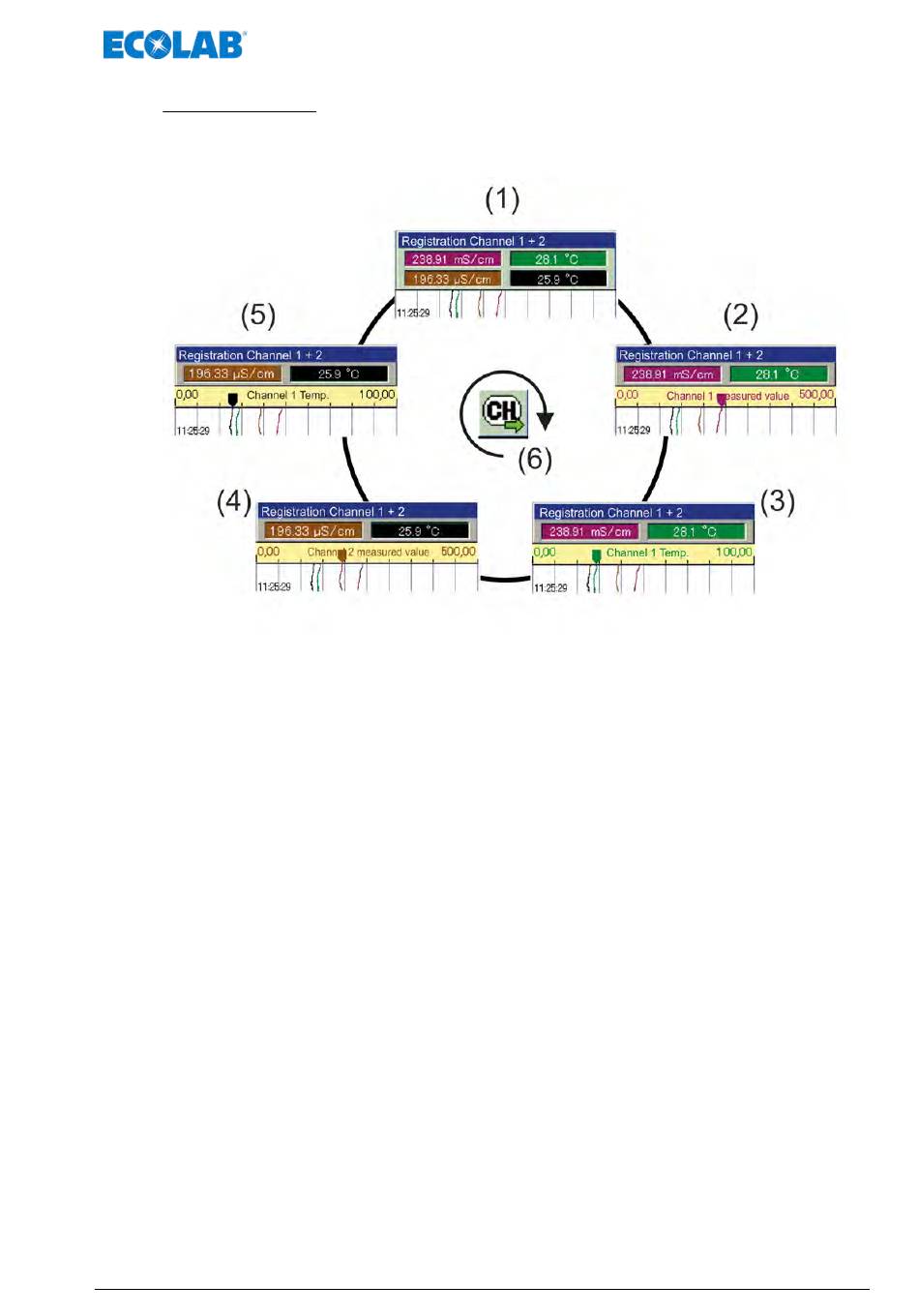

The sequence of views that are displayed when repeatedly pressing the button "Channel
forwarding" in succession, can be taken from the following chart.
Fig. 47: Browse pen views
1 General line recorder view
2 Pen view measured value channel 1
3 Pen view temperature channel 1
9.5.2

History function

The history feature is only available in the registration function. It allows you to view all the
recorded data in the ring memory on the device screen.
The "history" button in the operating window of the group opens the history.
The view can be brought into the desired shape using a scroll and zoom function.
n Scroll:
The chart can be scrolled forward and backward using "scrolling".
n Zoom:
The time range can be compressed in the display with the "Zoom".
You can view the measurement curves over a longer period in one section of the
screen.
Use "Exit" to leave the histories view and the display returns to the operating window of
the corresponding group.
4 Pen view measured value channel 2
5 Pen view temperature channel 2
6 Channel forwarding
101
Use
417102269 Rev. 2-08.2020
