Device Info; Ethernet Info - ECOLAB Versatronic Betriebsanleitung

Device menu

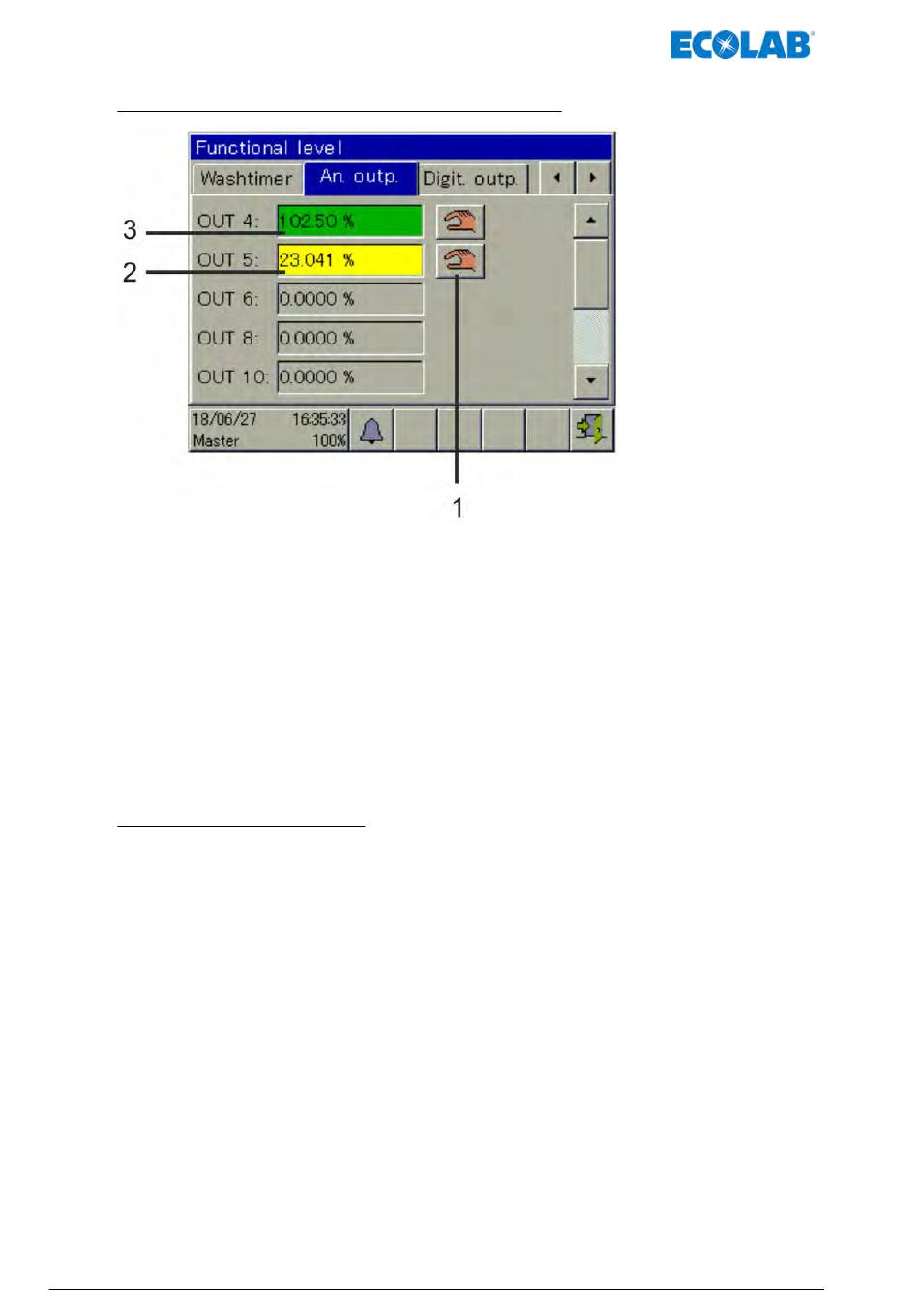

Example view of analogue outputs at functional level
Fig. 89: Analogue outputs view
(1) "Manual Mode" button
(2) Yellow background: Manual mode OFF
When "manual mode" is turned off, the output immediately assumes its configuration
value. The output display goes back to yellow.
10.7

Device info

For monitoring and for diagnostic purposes, extensive data about the hardware and
software of the device, as well as current analogue and binary values, can be found under
"Device Info".
Menu items of the device info
n General:
Information on the motherboard, device software and Ethernet configuration
Slots:
n
Overview equipping the option slots, display of diagnostic and version information of
the installed option boards
n Inputs/outputs:
Overview of all analogue and binary values of the inputs and outputs of the device
n Functions:
This menu is particularly useful for functional checks for configuration changes.
Contains detailed information of all internal functions (mathematical / logical, flow,
threshold, timer, washing timer, meters and controllers) and their current status.
n

Ethernet Info:

Statistics of Ethernet communication for diagnosis by trained personnel
