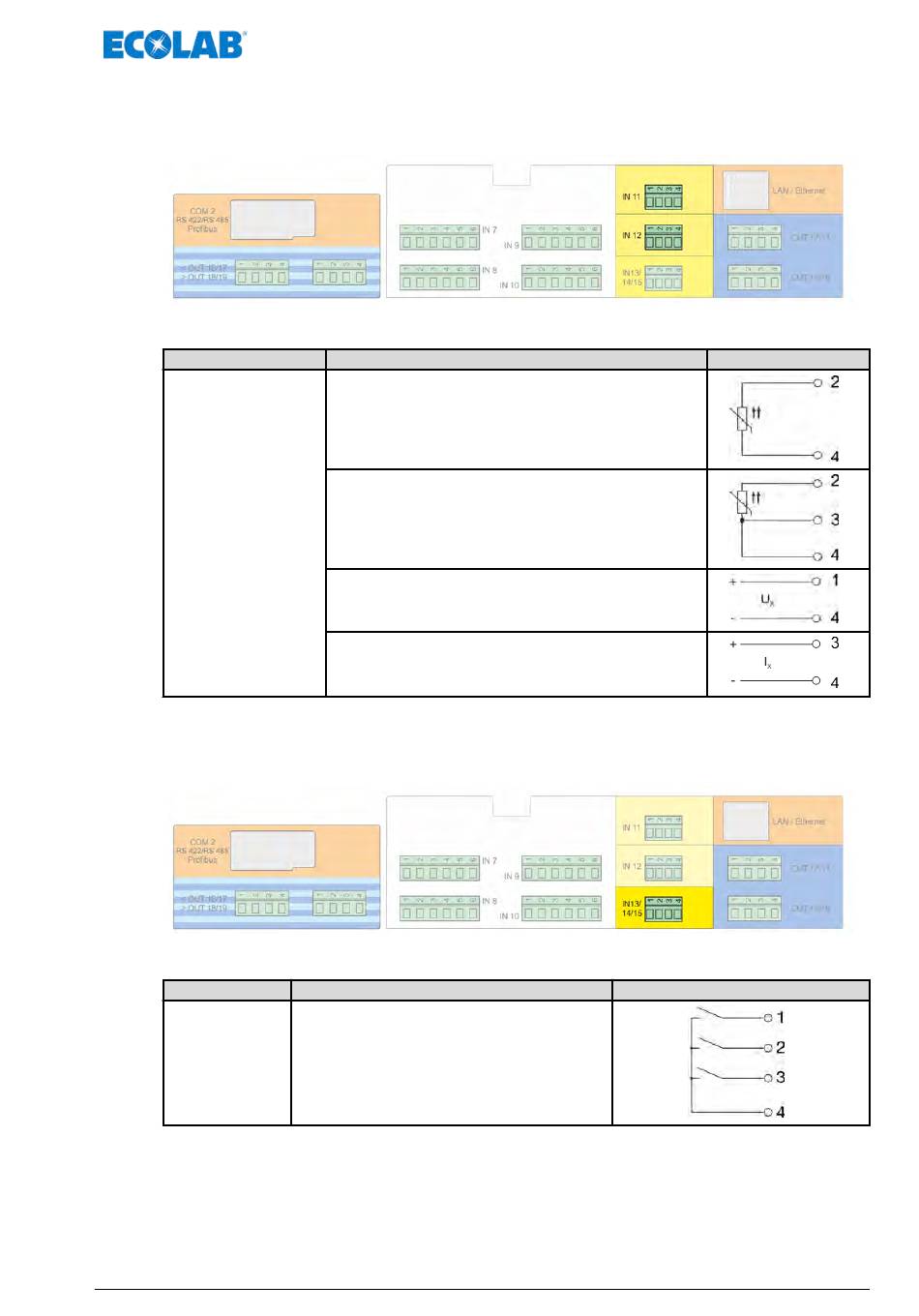

7.7

Wiring diagrams option boards

7.7.1

Option boards analogue inputs (universal inputs)

Slot
IN 11
IN 12
7.7.2

Binary input option boards

Plug / terminal
IN 13/14/15
Connection option
Resistance Thermometer
2-wire circuit
Pt100 / Pt1000
Resistance thermometer
3-wire circuit
Pt100 / Pt1000
Standard signal
Voltage 0 to 10 V
Standard signal
Current 0 (4) to +20 mA
Connection option
3 × binary inputs
Symbol
71
Electrical connection
Symbol
