Electrical connection
7.6.4

Measurements via standard signal inputs (Cl, Cd, Pa ...)

Slot
IN 6
PWR OUT 24V
IN 11
OUT 14/15

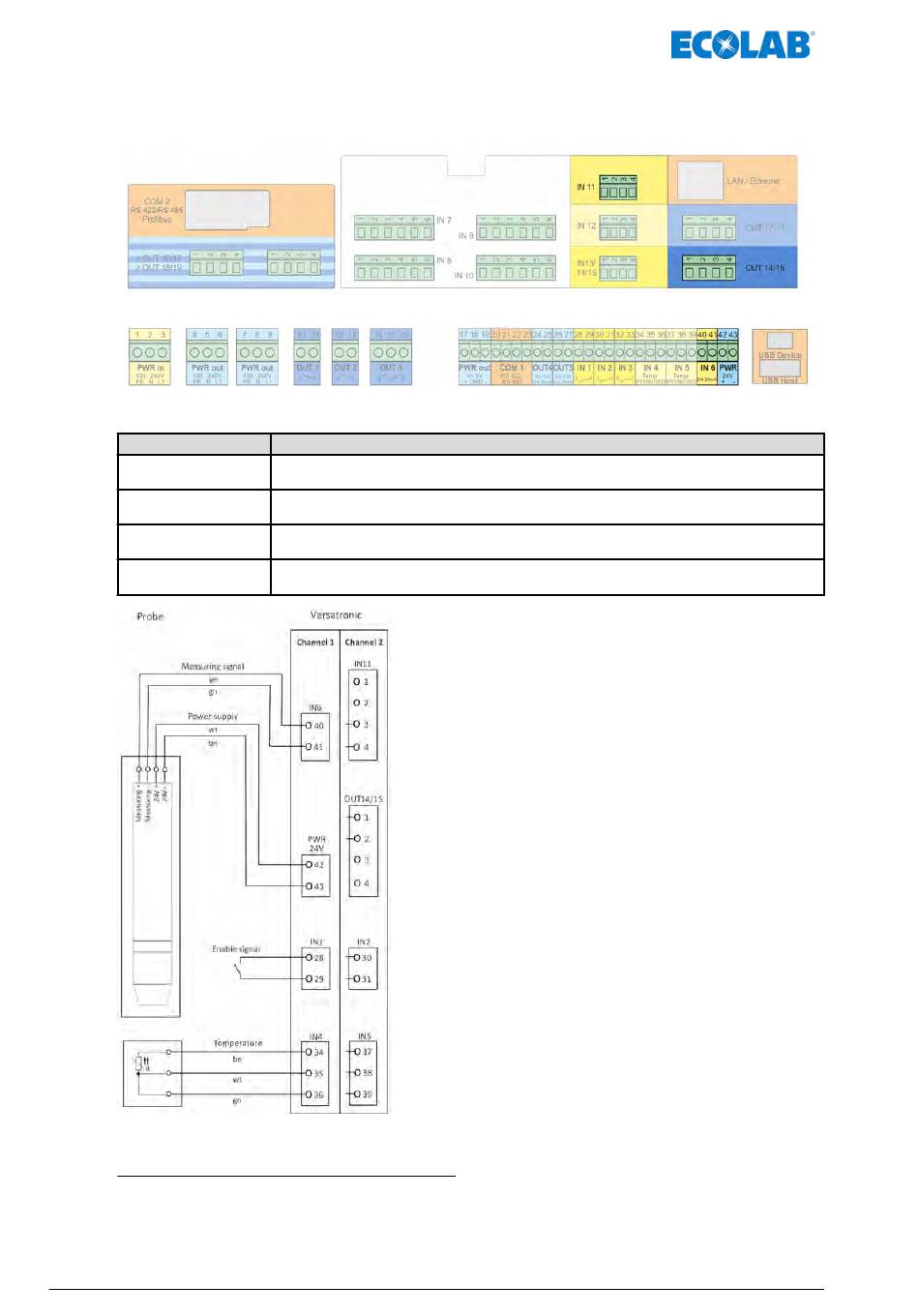

Fig. 27: Terminal connection diagram: Measurements via standard signal inputs
Connection diagrams for option boards: see operating instructions 417102269.
417102269 Rev. 2-08.2020
Option boards
Option/Connection option
40 = measuring signal + (ye)
41 = measuring signal - (gn)
42 = power supply + (wt)
43 = power supply Gnd (br)
3 = measuring signal + (ye)
4 = measuring signal - (gn)
1 = power supply + (wt)
2 = power supply Gnd (br)
70
