PC setup program
12.8.6

Mathematical formulas

Mathematical formulas must be created using the Ecolab PC Setup program.
When transferring data to the device, the formula is then loaded together with the setup in
Ecolab 'Versatronic' . For formulas that have already been loaded into the device, the
configuration data below the formula entry field may alternatively be adjusted on the
device.
Explanation of the configuration data for "Mathematical formulas":
Ä Chapter 12.8.6 'Mathematical formulas' on page 217.
See
Go to settings: Just Setup è Mathematical formulas è Formulas 1 to 8

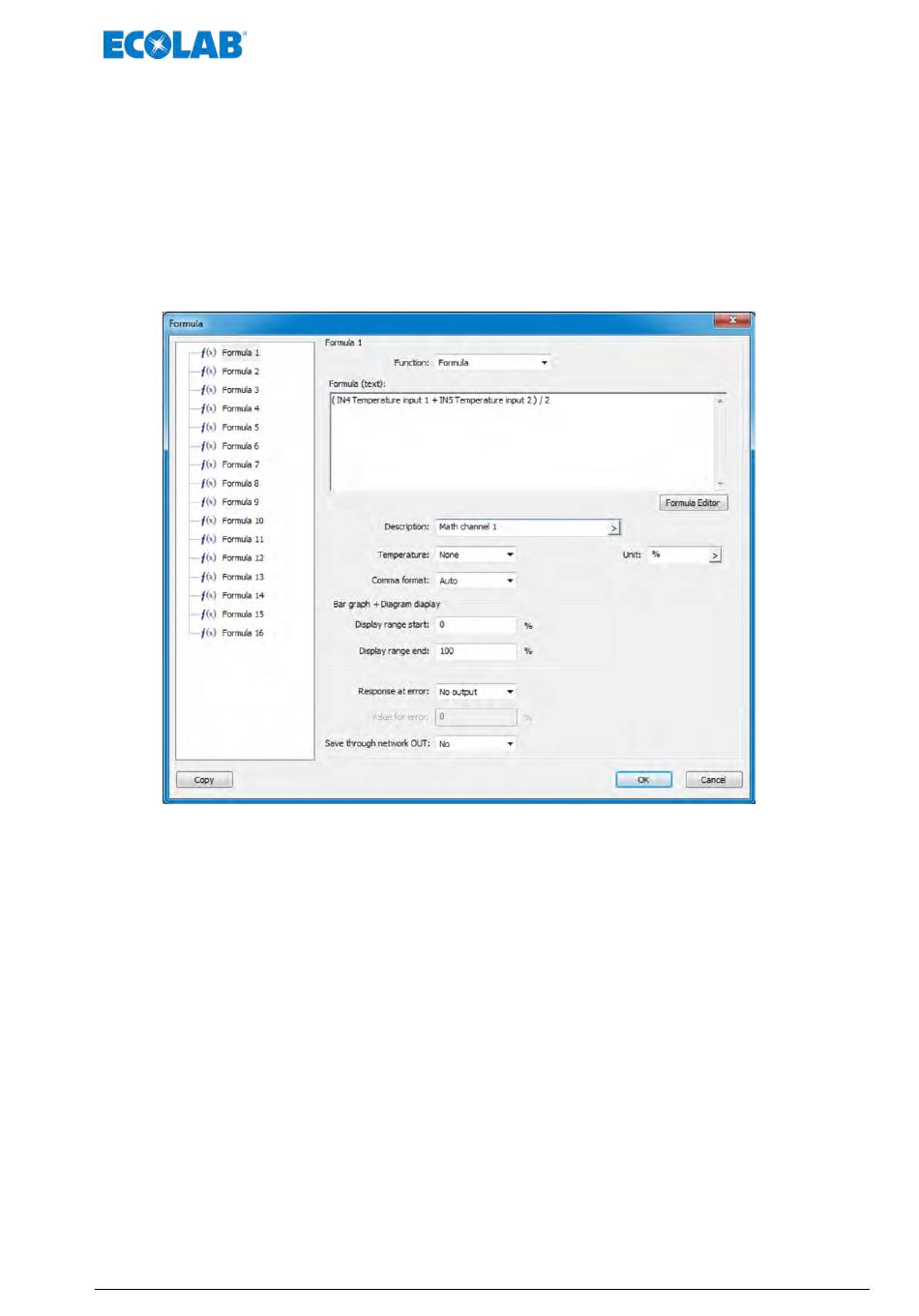

Fig. 125: Mathematical formulas
To create formulas, call the formula editor by clicking the button. With its help, you can
select variables from the analogue and binary selector and available operators to add
them to the respective "Add" button to the mathematical expression in the text window.
If required, the formula can also be edited by entering characters with the keyboard.
