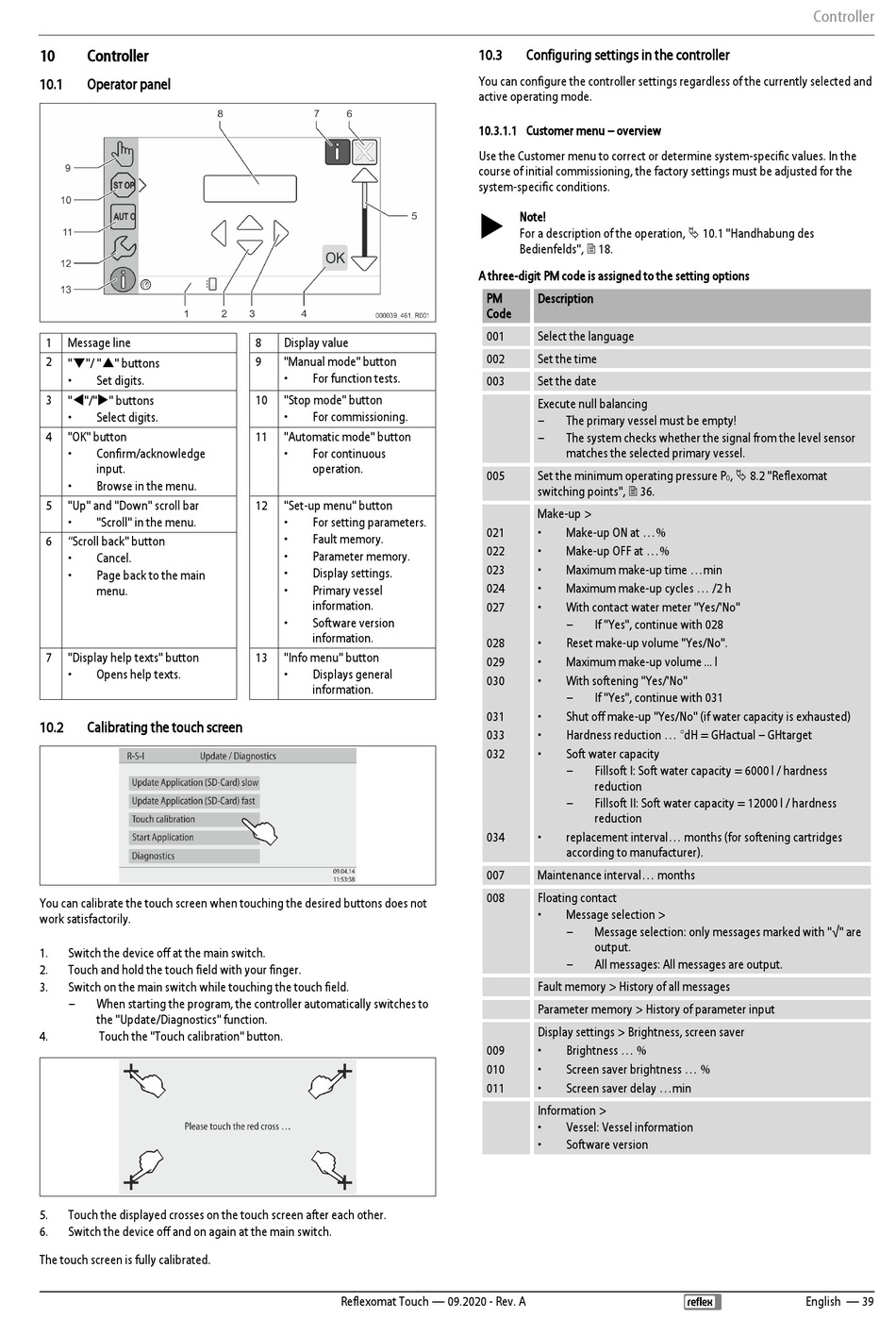

10
Controller
10.1
Operator panel
1
Message line
2
"▼"/ "▲" buttons
•
Set digits.
3
""/"" buttons
•
Select digits.
4
"OK" button
•
Confirm/acknowledge
input.
•
Browse in the menu.
5
"Up" and "Down" scroll bar
•
"Scroll" in the menu.
6
"Scroll back" button
•
Cancel.
•
Page back to the main
menu.
7
"Display help texts" button
•
Opens help texts.
10.2
Calibrating the touch screen
You can calibrate the touch screen when touching the desired buttons does not
work satisfactorily.
1.
Switch the device off at the main switch.
2.
Touch and hold the touch field with your finger.
3.
Switch on the main switch while touching the touch field.
–
When starting the program, the controller automatically switches to
the "Update/Diagnostics" function.
4.
Touch the "Touch calibration" button.
5.
Touch the displayed crosses on the touch screen after each other.
6.
Switch the device off and on again at the main switch.
The touch screen is fully calibrated.
8
Display value
9
"Manual mode" button
•
For function tests.
10
"Stop mode" button
•
For commissioning.
11
"Automatic mode" button
•
For continuous
operation.
12
"Set-up menu" button
•
For setting parameters.
•
Fault memory.
•
Parameter memory.
•
Display settings.
•
Primary vessel
information.
•
Software version
information.
13
"Info menu" button
•
Displays general
information.
Reflexomat Touch — 09.2020 - Rev. A
10.3
Configuring settings in the controller
You can configure the controller settings regardless of the currently selected and
active operating mode.
10.3.1.1 Customer menu – overview
Use the Customer menu to correct or determine system-specific values. In the
course of initial commissioning, the factory settings must be adjusted for the
system-specific conditions.
Note!
For a description of the operation, 10.1 "Handhabung des
Bedienfelds", 18.
A three-digit PM code is assigned to the setting options
PM
Description
Code
001
Select the language
002
Set the time
003
Set the date
Execute null balancing
–
The primary vessel must be empty!
–
The system checks whether the signal from the level sensor
matches the selected primary vessel.
005
Set the minimum operating pressure P
switching points", 36.
Make-up >
021
•
Make-up ON at ...%
022
•
Make-up OFF at ...%
023
•
Maximum make-up time ...min
024
•
Maximum make-up cycles ... /2 h
027
•
With contact water meter "Yes/'No"
–
If "Yes", continue with 028
028
•
Reset make-up volume "Yes/No".
029
•
Maximum make-up volume ... l
030
•
With softening "Yes/'No"
–
If "Yes", continue with 031
031
•
Shut off make-up "Yes/No" (if water capacity is exhausted)
033
•
Hardness reduction ... °dH = GHactual – GHtarget
032
•
Soft water capacity
–
Fillsoft I: Soft water capacity = 6000 l / hardness
reduction
–
Fillsoft II: Soft water capacity = 12000 l / hardness
reduction
034
•
replacement interval... months (for softening cartridges
according to manufacturer).
007
Maintenance interval... months
008
Floating contact
•
Message selection >
–
Message selection: only messages marked with "√" are
output.
–
All messages: All messages are output.
Fault memory > History of all messages
Parameter memory > History of parameter input
Display settings > Brightness, screen saver
009
•
Brightness ... %
010
•
Screen saver brightness ... %
011
•
Screen saver delay ...min
Information >
•
Vessel: Vessel information
•
Software version
Controller
, 8.2 "Reflexomat
0
English — 39
