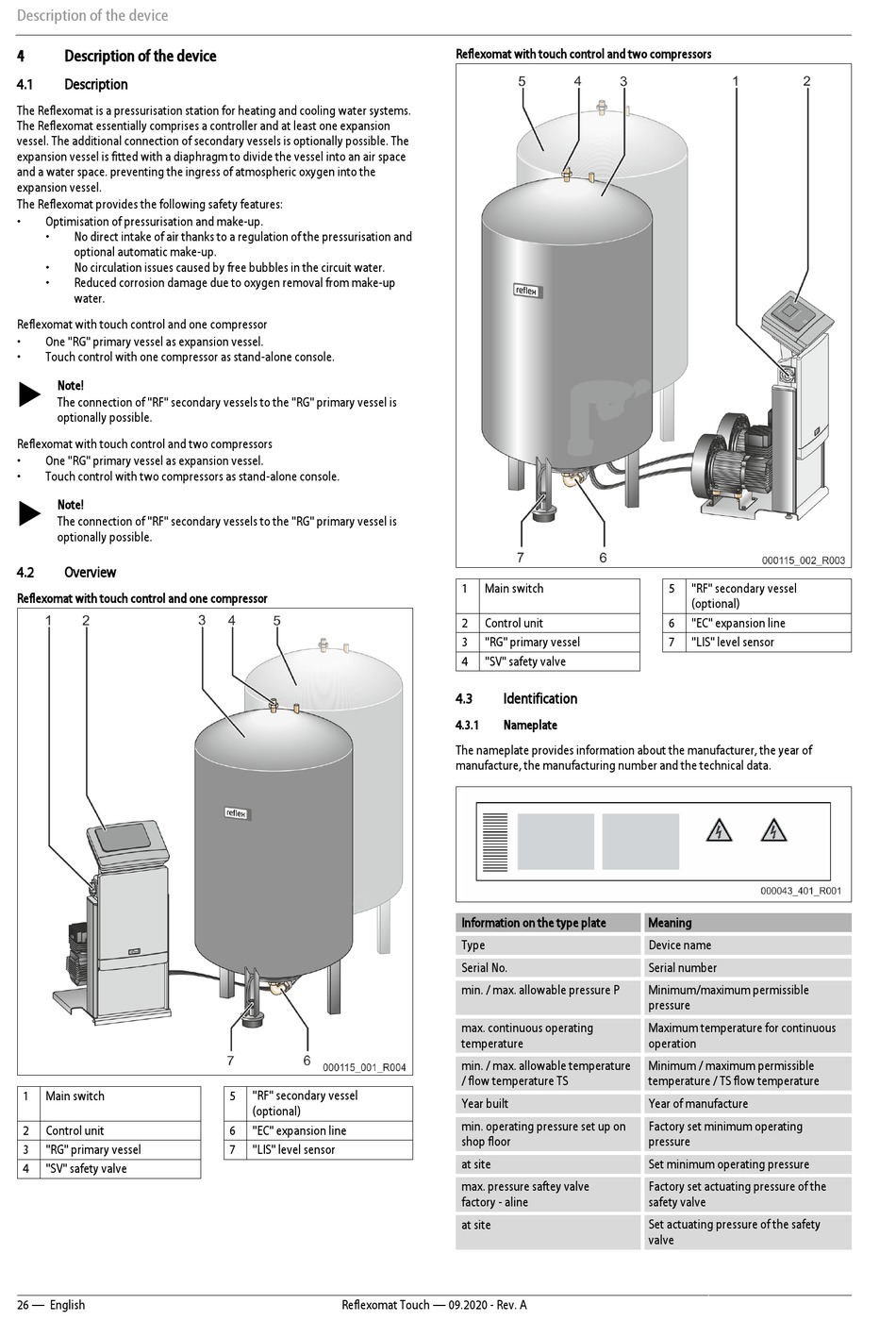

Description of the device
4
Description of the device
4.1
Description
The Reflexomat is a pressurisation station for heating and cooling water systems.
The Reflexomat essentially comprises a controller and at least one expansion
vessel. The additional connection of secondary vessels is optionally possible. The
expansion vessel is fitted with a diaphragm to divide the vessel into an air space
and a water space. preventing the ingress of atmospheric oxygen into the
expansion vessel.
The Reflexomat provides the following safety features:
•
Optimisation of pressurisation and make-up.
•
No direct intake of air thanks to a regulation of the pressurisation and
optional automatic make-up.
•
No circulation issues caused by free bubbles in the circuit water.
•
Reduced corrosion damage due to oxygen removal from make-up
water.
Reflexomat with touch control and one compressor
•
One "RG" primary vessel as expansion vessel.
•
Touch control with one compressor as stand-alone console.
Note!
The connection of "RF" secondary vessels to the "RG" primary vessel is
optionally possible.
Reflexomat with touch control and two compressors
•
One "RG" primary vessel as expansion vessel.
•
Touch control with two compressors as stand-alone console.
Note!
The connection of "RF" secondary vessels to the "RG" primary vessel is
optionally possible.
4.2
Overview
Reflexomat with touch control and one compressor
1
Main switch
2
Control unit
3
"RG" primary vessel
4
"SV" safety valve
26 — English
5
"RF" secondary vessel
(optional)
6
"EC" expansion line
7
"LIS" level sensor
Reflexomat Touch — 09.2020 - Rev. A
Reflexomat with touch control and two compressors
1
Main switch
2
Control unit
3
"RG" primary vessel
4
"SV" safety valve
4.3
Identification
4.3.1
Nameplate
The nameplate provides information about the manufacturer, the year of
manufacture, the manufacturing number and the technical data.
Information on the type plate
Type
Serial No.
min. / max. allowable pressure P
max. continuous operating
temperature
min. / max. allowable temperature
/ flow temperature TS
Year built
min. operating pressure set up on
shop floor
at site
max. pressure saftey valve
factory - aline
at site
5
"RF" secondary vessel
(optional)
6
"EC" expansion line
7
"LIS" level sensor
Meaning
Device name
Serial number
Minimum/maximum permissible
pressure
Maximum temperature for continuous
operation
Minimum / maximum permissible
temperature / TS flow temperature
Year of manufacture
Factory set minimum operating
pressure
Set minimum operating pressure
Factory set actuating pressure of the
safety valve
Set actuating pressure of the safety
valve
