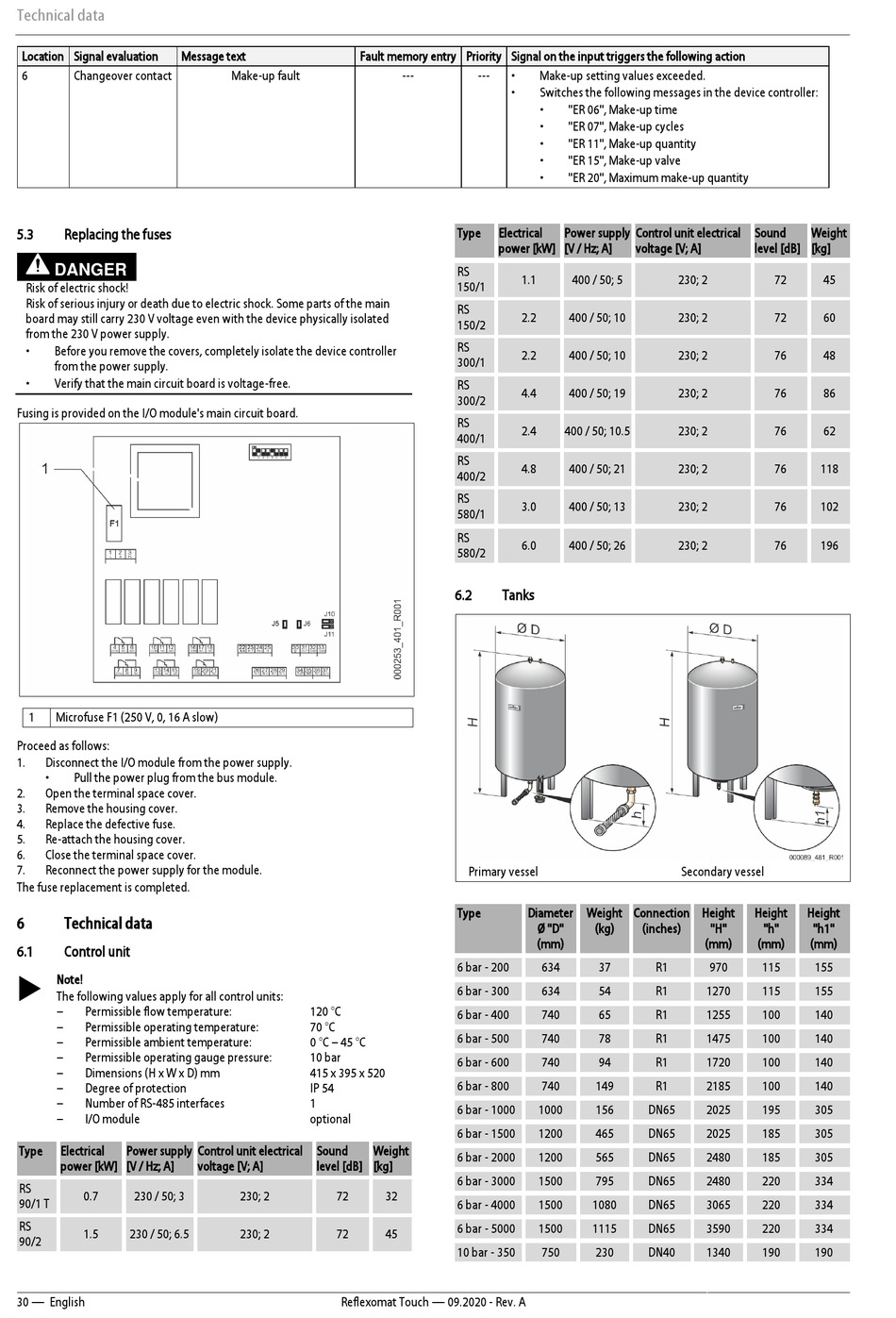

Reflex Reflexomat Touch RS 90/1 T Originalbetriebsanleitung Seite 30

Technical data
Location Signal evaluation Message text
6 Changeover contact
5.3 Replacing the fuses
DANGER
Risk of electric shock!
Risk of serious injury or death due to electric shock. Some parts of the main
board may still carry 230 V voltage even with the device physically isolated
from the 230 V power supply.
• Before you remove the covers, completely isolate the device controller
from the power supply.
• Verify that the main circuit board is voltage-free.
Fusing is provided on the I/O module's main circuit board.
1 Microfuse F1 (250 V, 0, 16 A slow)
Proceed as follows:
1. Disconnect the I/O module from the power supply.
• Pull the power plug from the bus module.
2. Open the terminal space cover.
3. Remove the housing cover.
4. Replace the defective fuse.
5. Re-attach the housing cover.
6. Close the terminal space cover.
7. Reconnect the power supply for the module.
The fuse replacement is completed.
6 Technical data
6.1 Control unit
 Note!
The following values apply for all control units:
– Permissible flow temperature:
– Permissible operating temperature:
– Permissible ambient temperature:
– Permissible operating gauge pressure:
– Dimensions (H x W x D) mm
– Degree of protection
– Number of RS-485 interfaces
– I/O module
Type Electrical Power supply
power [kW] [V / Hz; A]
RS
0.7 230 / 50; 3
90/1 T
RS
1.5 230 / 50; 6.5
90/2
30 — English
Fault memory entry Priority Signal on the input triggers the following action
Make-up fault
120 °C
70 °C
0 °C – 45 °C
10 bar
415 x 395 x 520
IP 54
1
optional
Control unit electrical Sound
voltage [V; A] level [dB]
230; 2 72
230; 2 72
Reflexomat Touch — 09.2020 - Rev. A
--- --- • Make-up setting values exceeded.
• Switches the following messages in the device controller:
•
•
•
•
•
Type Electrical
power [kW]
RS
1.1
150/1
RS
2.2
150/2
RS
2.2
300/1
RS
4.4
300/2
RS
2.4
400/1
RS
4.8
400/2
RS
3.0
580/1
RS
6.0
580/2
6.2 Tanks
Primary vessel
Type Diameter
Ø "D"
(mm)
6 bar - 200 634
6 bar - 300 634
6 bar - 400 740
6 bar - 500 740
6 bar - 600 740
6 bar - 800 740
6 bar - 1000 1000
6 bar - 1500 1200
Weight
6 bar - 2000 1200
[kg]
6 bar - 3000 1500
32
6 bar - 4000 1500
6 bar - 5000 1500
45
10 bar - 350 750
"ER 06", Make-up time
"ER 07", Make-up cycles
"ER 11", Make-up quantity
"ER 15", Make-up valve
"ER 20", Maximum make-up quantity
Power supply Control unit electrical
[V / Hz; A] voltage [V; A]
400 / 50; 5 230; 2
400 / 50; 10 230; 2
400 / 50; 10 230; 2
400 / 50; 19 230; 2
400 / 50; 10.5 230; 2
400 / 50; 21 230; 2
400 / 50; 13 230; 2
400 / 50; 26 230; 2
Secondary vessel
Weight Connection Height
(kg) (inches) "H"
(mm)
37 R1 970
54 R1 1270
65 R1 1255
78 R1 1475
94 R1 1720
149 R1 2185
156 DN65 2025
465 DN65 2025
565 DN65 2480
795 DN65 2480
1080 DN65 3065
1115 DN65 3590
230 DN40 1340
Sound Weight
level [dB] [kg]
72 45
72 60
76 48
76 86
76 62
76 118
76 102
76 196
Height Height
"h" "h1"
(mm) (mm)
115 155
115 155
100 140
100 140
100 140
100 140
195 305
185 305
185 305
220 334
220 334
220 334
190 190
