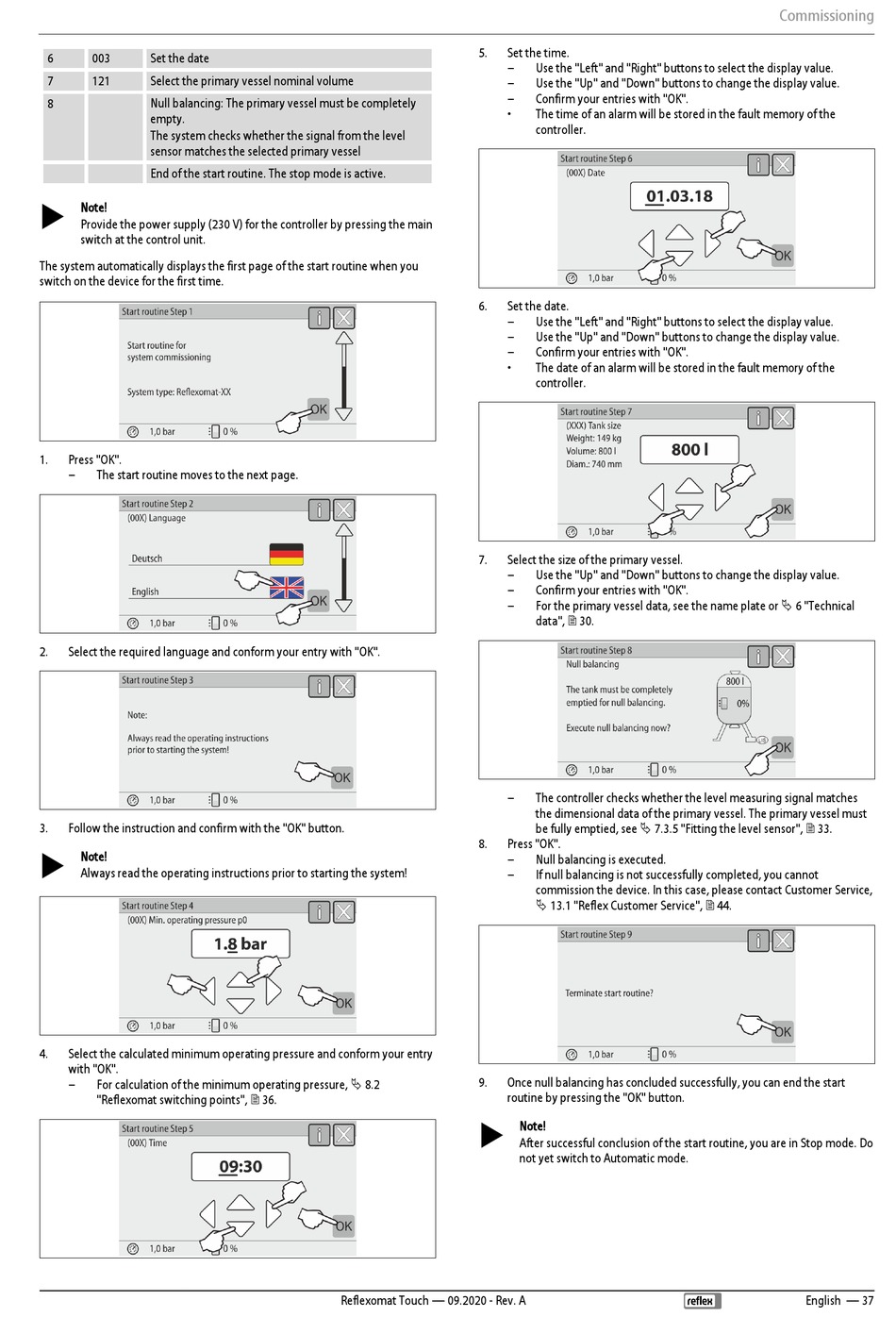

Reflex Reflexomat Touch RS 90/1 T Originalbetriebsanleitung Seite 37

6 003 Set the date
7 121 Select the primary vessel nominal volume
8 Null balancing: The primary vessel must be completely
empty.
The system checks whether the signal from the level
sensor matches the selected primary vessel
End of the start routine. The stop mode is active.

Note!
Provide the power supply (230 V) for the controller by pressing the main
switch at the control unit.
The system automatically displays the first page of the start routine when you
switch on the device for the first time.
1. Press "OK".
– The start routine moves to the next page.
2. Select the required language and conform your entry with "OK".
3. Follow the instruction and confirm with the "OK" button.
 Note!
Always read the operating instructions prior to starting the system!
4. Select the calculated minimum operating pressure and conform your entry
with "OK".
For calculation of the minimum operating pressure,  8.2
–
"Reflexomat switching points",  36.
5. Set the time.
–
–
–
•
6. Set the date.
–
–
–
•
7. Select the size of the primary vessel.
–
–
–
–
8. Press "OK".
–
–
9. Once null balancing has concluded successfully, you can end the start
routine by pressing the "OK" button.

Reflexomat Touch — 09.2020 - Rev. A
Use the "Left" and "Right" buttons to select the display value.
Use the "Up" and "Down" buttons to change the display value.
Confirm your entries with "OK".
The time of an alarm will be stored in the fault memory of the
controller.
Use the "Left" and "Right" buttons to select the display value.
Use the "Up" and "Down" buttons to change the display value.
Confirm your entries with "OK".
The date of an alarm will be stored in the fault memory of the
controller.
Use the "Up" and "Down" buttons to change the display value.
Confirm your entries with "OK".
For the primary vessel data, see the name plate or  6 "Technical
data",  30.
The controller checks whether the level measuring signal matches
the dimensional data of the primary vessel. The primary vessel must
be fully emptied, see  7.3.5 "Fitting the level sensor",  33.
Null balancing is executed.
If null balancing is not successfully completed, you cannot
commission the device. In this case, please contact Customer Service,
 13.1 "Reflex Customer Service",  44.
Note!
After successful conclusion of the start routine, you are in Stop mode. Do
not yet switch to Automatic mode.
Commissioning
