Installation

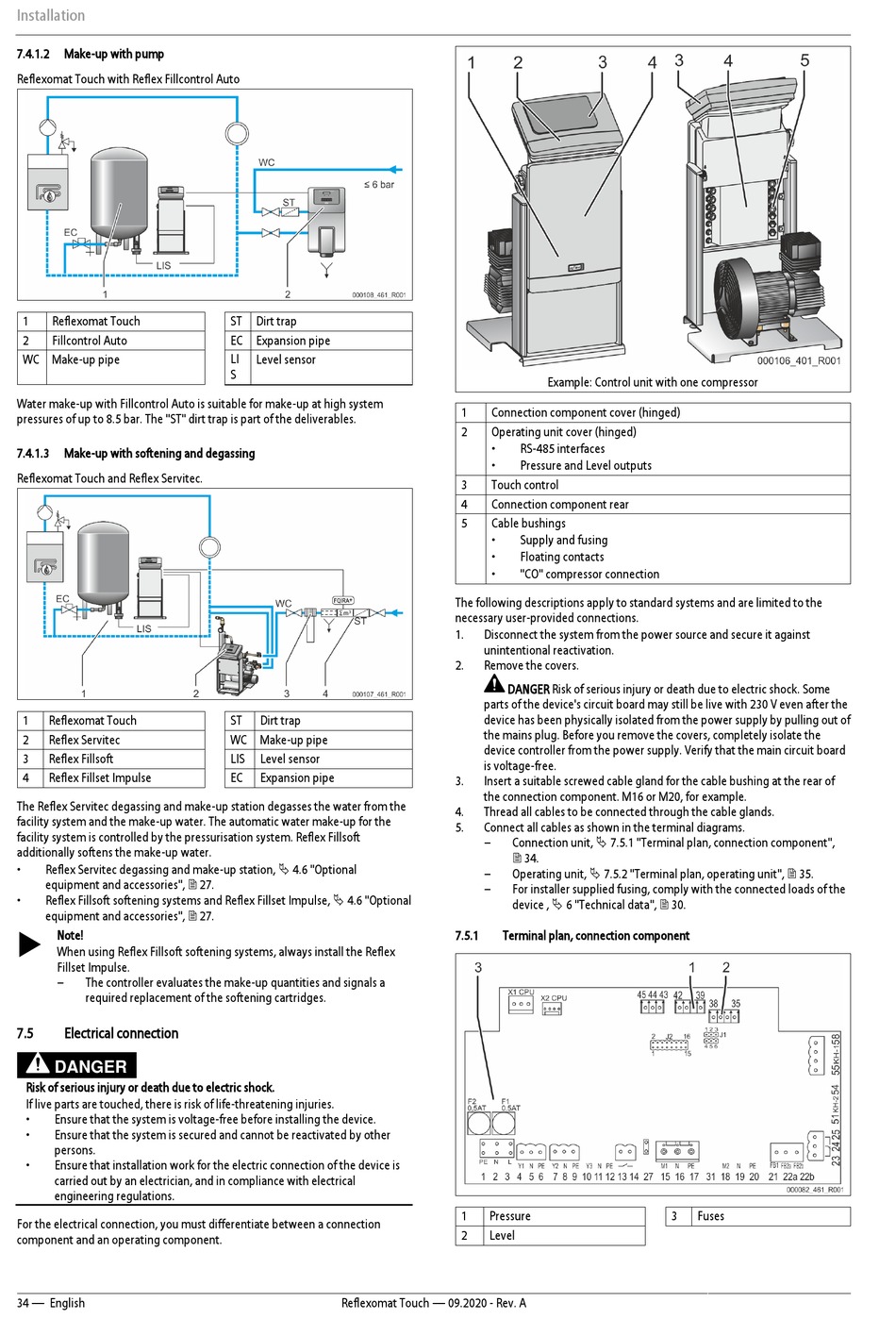

7.4.1.2
Make-up with pump
Reflexomat Touch with Reflex Fillcontrol Auto
1
Reflexomat Touch
2
Fillcontrol Auto
WC Make-up pipe
Water make-up with Fillcontrol Auto is suitable for make-up at high system
pressures of up to 8.5 bar. The "ST" dirt trap is part of the deliverables.
7.4.1.3
Make-up with softening and degassing
Reflexomat Touch and Reflex Servitec.
1
Reflexomat Touch
2
Reflex Servitec
3
Reflex Fillsoft
4
Reflex Fillset Impulse
The Reflex Servitec degassing and make-up station degasses the water from the
facility system and the make-up water. The automatic water make-up for the
facility system is controlled by the pressurisation system. Reflex Fillsoft
additionally softens the make-up water.
•
Reflex Servitec degassing and make-up station, 4.6 "Optional
equipment and accessories", 27.
•
Reflex Fillsoft softening systems and Reflex Fillset Impulse, 4.6 "Optional
equipment and accessories", 27.
Note!
When using Reflex Fillsoft softening systems, always install the Reflex
Fillset Impulse.
–
The controller evaluates the make-up quantities and signals a
required replacement of the softening cartridges.
7.5
Electrical connection
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the system is voltage-free before installing the device.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical
engineering regulations.
For the electrical connection, you must differentiate between a connection
component and an operating component.
34 — English
ST Dirt trap
EC Expansion pipe
LI
Level sensor
S
ST
Dirt trap
WC Make-up pipe
LIS
Level sensor
EC
Expansion pipe
Reflexomat Touch — 09.2020 - Rev. A
Example: Control unit with one compressor
1
Connection component cover (hinged)
2
Operating unit cover (hinged)
•
RS-485 interfaces
•
Pressure and Level outputs
3
Touch control
4
Connection component rear
5
Cable bushings
•
Supply and fusing
•
Floating contacts
•
"CO" compressor connection
The following descriptions apply to standard systems and are limited to the
necessary user-provided connections.
1.
Disconnect the system from the power source and secure it against
unintentional reactivation.
2.
Remove the covers.
DANGER Risk of serious injury or death due to electric shock. Some
parts of the device's circuit board may still be live with 230 V even after the
device has been physically isolated from the power supply by pulling out of
the mains plug. Before you remove the covers, completely isolate the
device controller from the power supply. Verify that the main circuit board
is voltage-free.
3.
Insert a suitable screwed cable gland for the cable bushing at the rear of
the connection component. M16 or M20, for example.
4.
Thread all cables to be connected through the cable glands.
5.
Connect all cables as shown in the terminal diagrams.
–
Connection unit, 7.5.1 "Terminal plan, connection component",
34.
–
Operating unit, 7.5.2 "Terminal plan, operating unit", 35.
–
For installer supplied fusing, comply with the connected loads of the
device , 6 "Technical data", 30.
7.5.1
Terminal plan, connection component
1
Pressure
2
Level
3
Fuses
