4.3.8.7 Layout G
The power supply (24 V~ 50/60 Hz ±10% or 32 V
pedal.
The power is regulated by a variable voltage between 0 and 5 V (see Figure 11 on page 23).
Power adjustment
variable voltage
0-5 V 1mA
4.3.8.8 Layout H
The power supply (32 V
consent is provided by the pedal. The power is regulated by a variable voltage between 0 and
10 V (see Figure 12 on page 23).
Power adjustment
variable voltage
0-10V 1mA
10 K 1/8 W 1%
resistance
Fuse holder, fuse and pedal
are not included in the
Mectron supply
Pedal
+ +
- -
82 K 1/8 W 1%
resistance
1 2
9 16
8 7 6 5 4 3 2 1

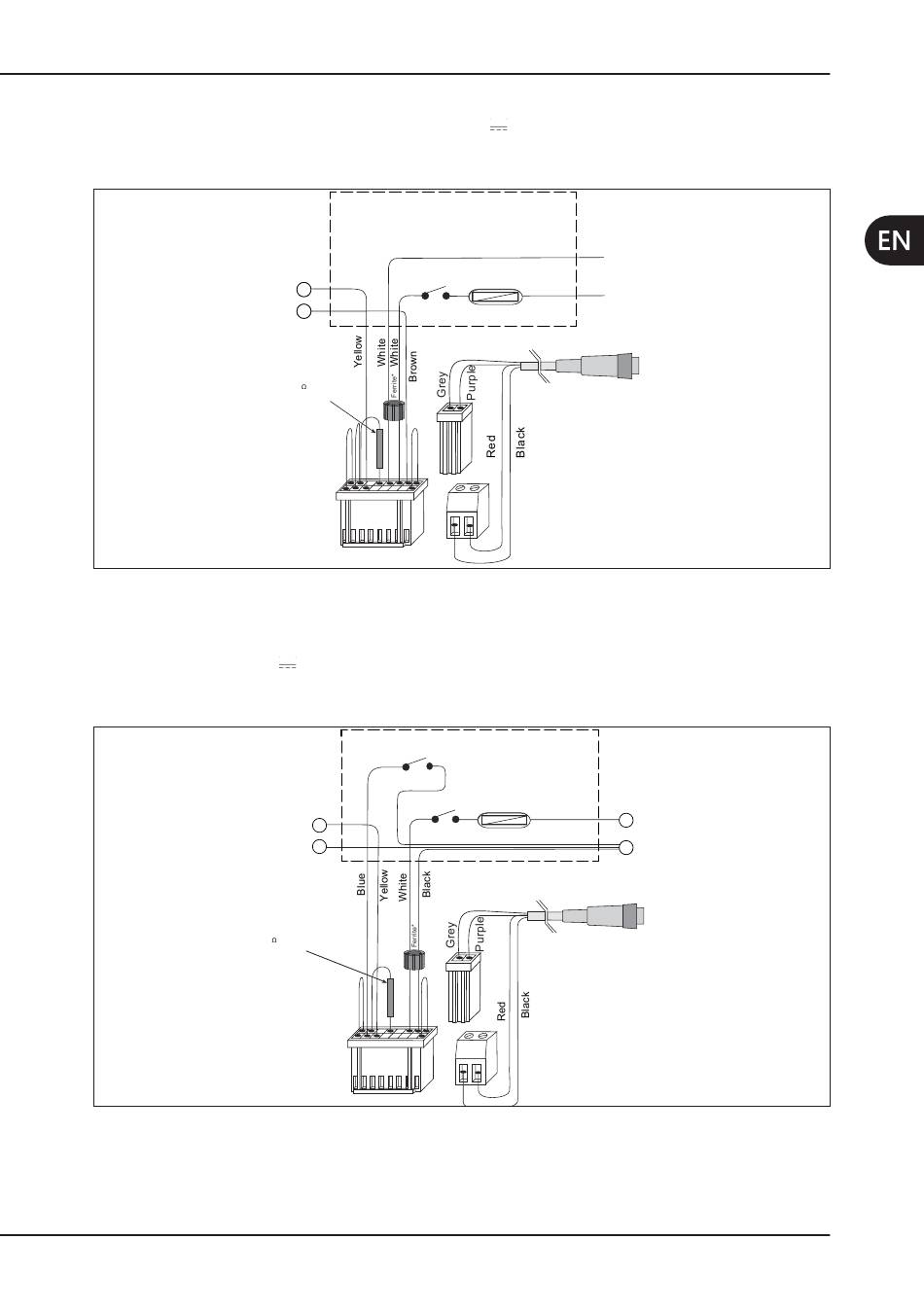

Figure 11 – Layout G
±10%) is provided by contact with the instrument tray and negative
Pedal
+
Instrument tray
-
1 2
9 16
8 7 6 5 4 3 2 1
Figure 12 – Layout H
INSTALLATION
±10%) and consent are provided by the
Power supply
24 Vac ± 10% 50/60 Hz
Fuse
or 32 Vdc ± 10%
Minimum 40W
T 2 A
Scaler handpiece cord
Fuse holder, fuse,
pedal and instrument
tray not included in
the Mectron supply
Fuse
+
Power supply
32 Vdc ± 10%
T 2 A
-
Minimum 40W
Scaler handpiece cord
23
