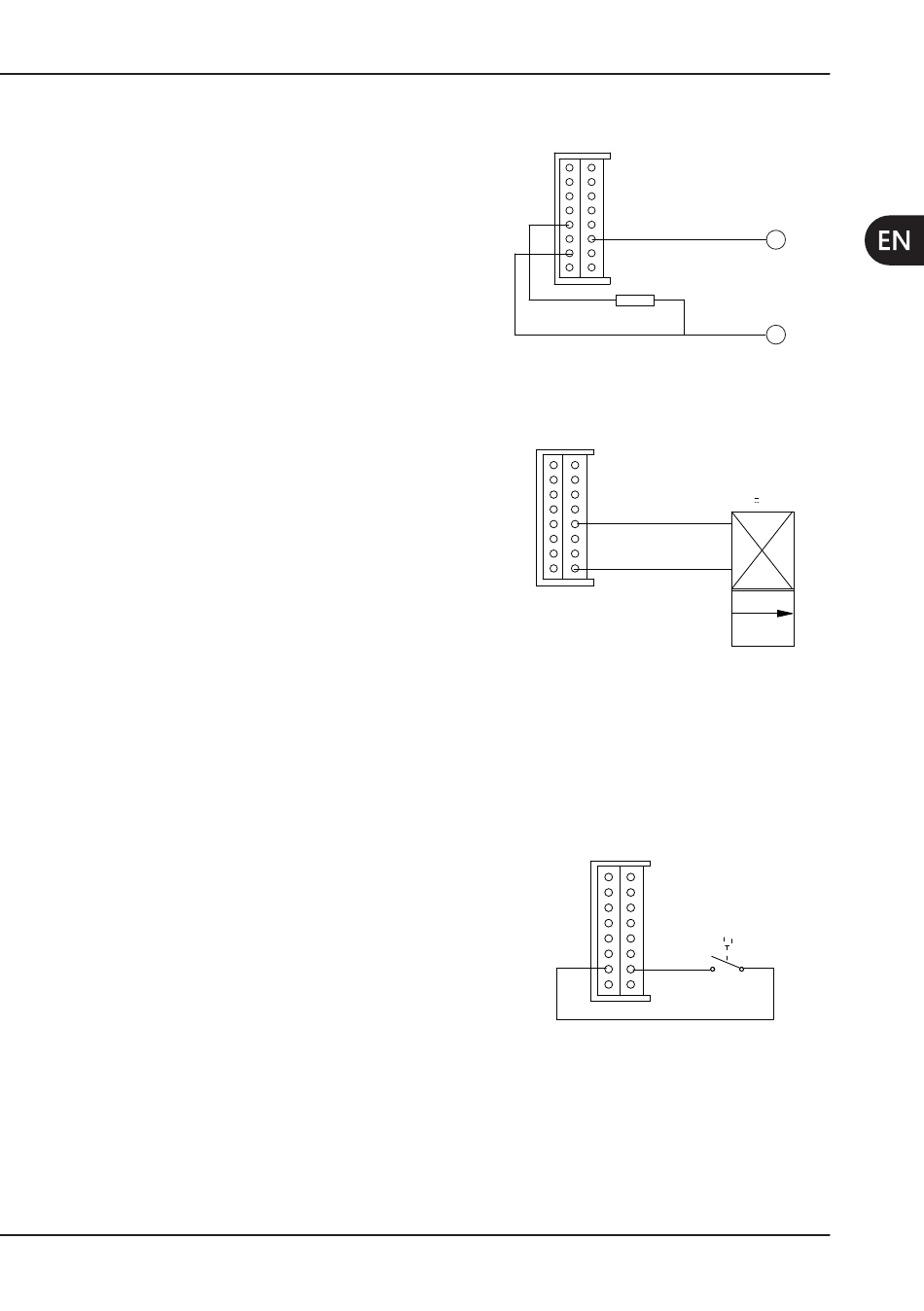

4.3.3.5 0-10 V Power Regulation
The power can be modulated with a var-
iable voltage between 0 and 10 Volts ap-
plied between pins 6 and 10 (ground).
Connect a 10 kOhm, 1/8W, 1% resistance
between pins 12 and 10.
4.3.4 Solenoid Valve Control
The COMPACT PIEZO LED provides an
enabling in output for a solenoid valve
on the handpiece irrigation circuit. The
output distributes 24V with maximum
power 2.5W.
4.3.5

Enabling

These connections allow the activation of the operating cycle. For these connections too, there
are different configurations to suit the different types of dental units.
4.3.5.1 Enabling of Pedal with Negative Signal
The pedal must be connected to pins 10
and 7.
INSTALLATION
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
10 kOhm 1/8W, 1%
resistance
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
+
0-10V 1mA
-
Solenoid valve
(optional)
24V 2,5W
Pedal
