COMPACT PIEZO LED

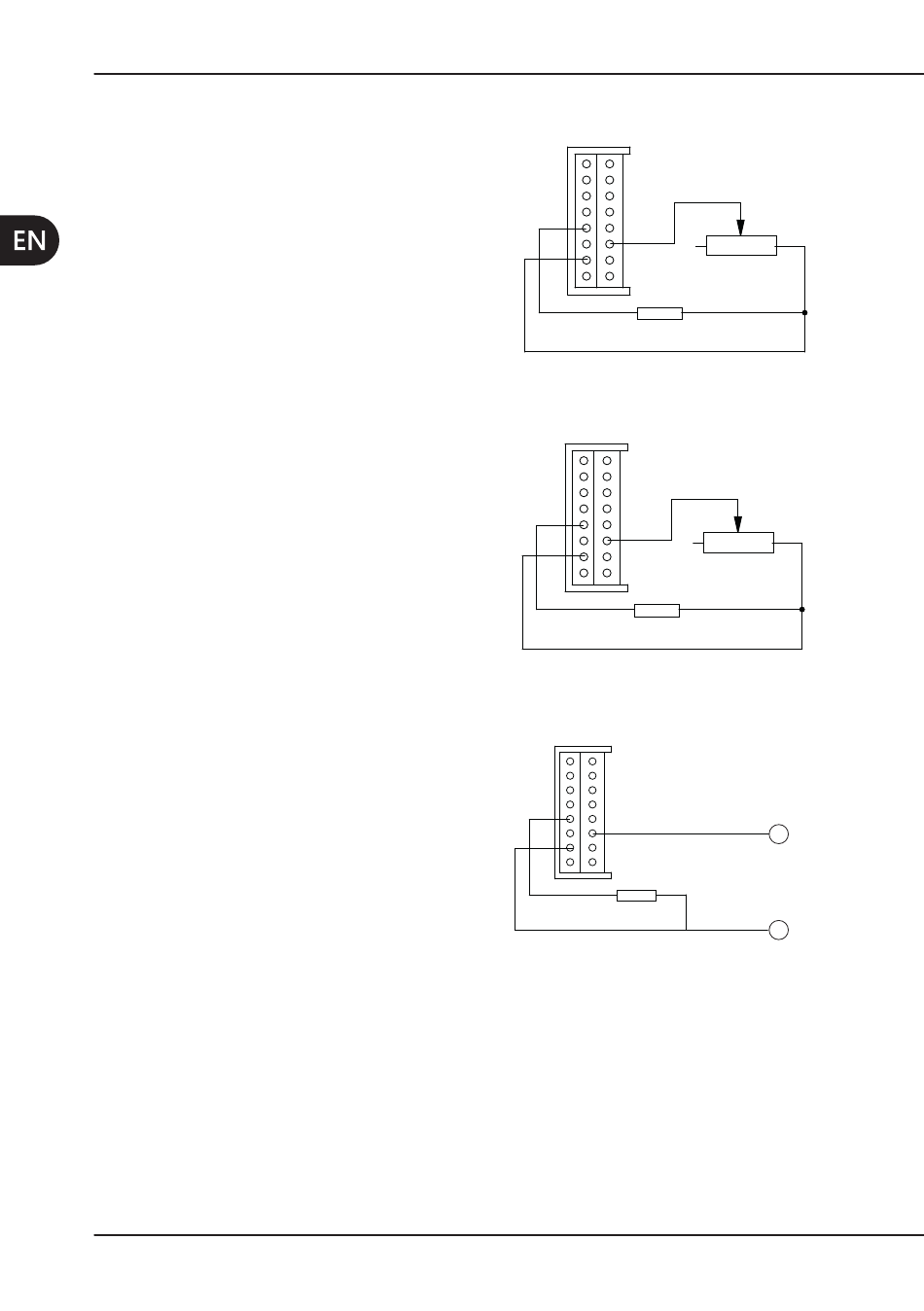

4.3.3.2 Power Regulation with 10 kOhm Potentiometer
Connect the 10 kOhm potentiometer
between pins 6 and 10 and a 20 kOhm,
1/8W, 1% resistance between pins 12 and
10.
The maximum power corresponds to re-
sistance 0.
4.3.3.3 Power Regulation with 4.7 kOhm Potentiometer
Connect the 4.7 kOhm potentiometer
between pins 6 and 10 and a 39 kOhm,
1/8W, 1% resistance between pins 12 and
10.
The maximum power corresponds to re-
sistance 0.
4.3.3.4 0-5 V Power Regulation
The power can be modulated with a var-
iable voltage between 0 and 5 Volts ap-
plied between pins 6 and 10 (ground).
Connect a 82 kOhm, 1/8W, 1% resistance
between pins 12 and 10.
16
16
1
10 kOhm linear
15
2
potentiometer
14 3
13 4
12 5
11 6
7
10
8
9
20 kOhm 1/8W, 1%
resistance
16
1
4,7 kOhm
15
2
linear potentiometer
14 3
13 4
12 5
11 6
7
10
8
9
39 kOhm 1/8W, 1%
resistance
16
1
15
2
14 3
13 4
12 5
11 6
7
10
8
9
82 kOhm 1/8W, 1%
resistance
+
0-5V 1mA
-
