COMPACT PIEZO LED
4.3.8.1 Layout A
The power supply (24 V~ 50/60 Hz ±10% or 32 V
pedal.
The power is regulated by a 2.2KΩ linear potentiometer (see Figure 5 on page 20).
2,2 KΩ linear
potentiometer
Solenoid valve
(optional)
24 V
2,5W maximum
4.3.8.2 Layout B
The power supply (24 V~ 50/60 Hz ±10% or 32 V
instrument tray and consent is provided by the pedal. The power is regulated by a 2.2KΩ linear
potentiometer (see Figure 6 on page 20).
2,2 KΩ linear
potentiometer
Solenoid valve
(optional)
24 V
2,5W maximum
20
Fuse holder, fuse and pedal
are not included in the
Yellow
Pedal
Yellow
Green
Green
1 2
9 16
8 7 6 5 4 3 2 1

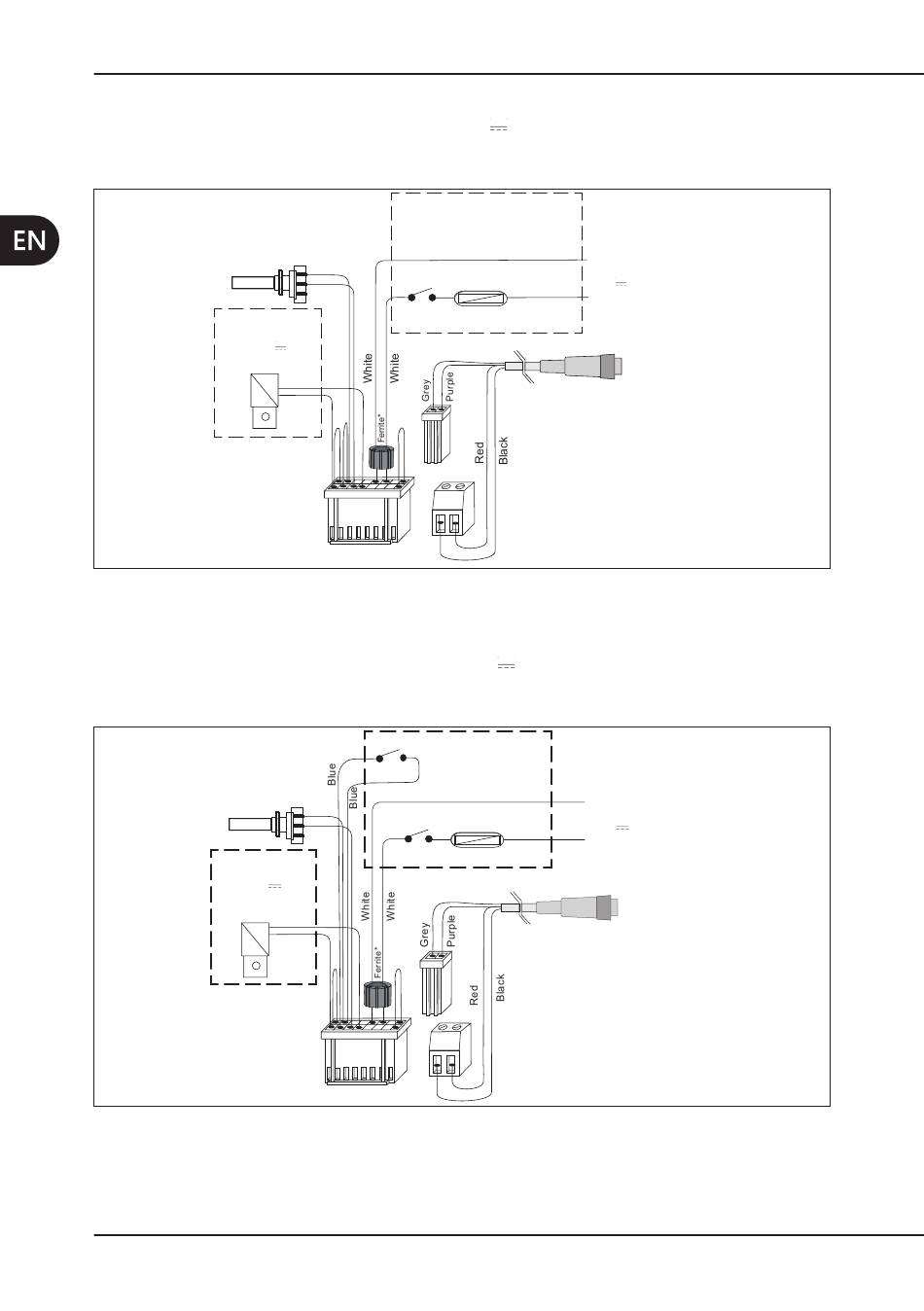

Figure 5 – Layout A
Fuse holder, fuse,
pedal and instrument
tray not included in
Pedal
the Mectron supply
Yellow
Instrument tray
Yellow
Green
Green
1 2
9 16
8 7 6 5 4 3 2 1
Figure 6 – Layout B
±10%) and consent are provided by the
Mectron supply
Power supply
24 V ~ 50/60 Hz or
Fuse
32 V
Minimum 40VA
T 2 A
Scaler handpiece cord
±10%) is provided by contact with the
Power supply
24 V ~ 50/60 Hz or
Fuse
32 V
Minimum 40VA
T 2 A
Scaler handpiece cord
