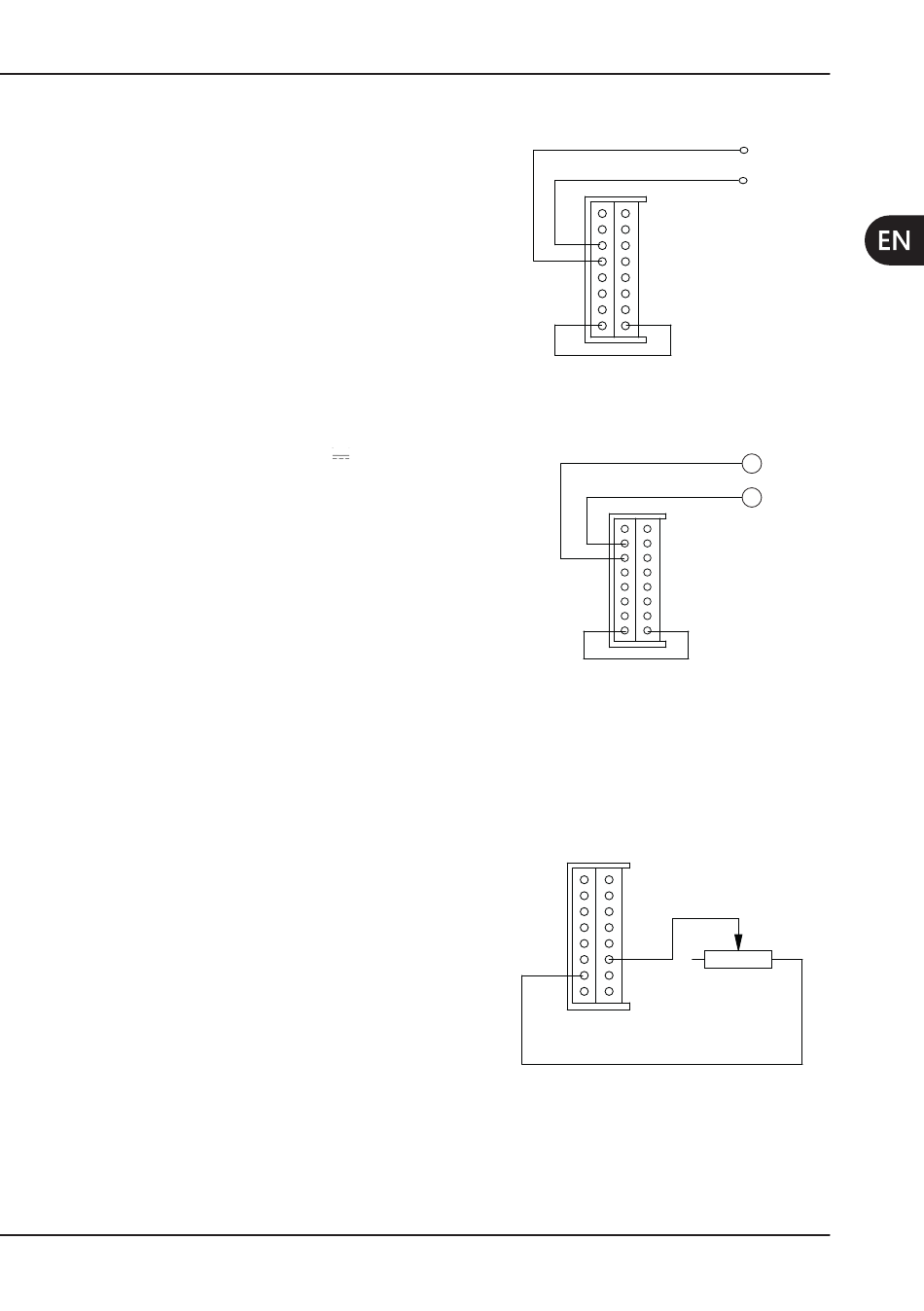

4.3.1 Alternate 24V Power Supply
To power the module at 24V~ 50/60 Hz
connect pins 13 and 14 (see Figure 3 on
page 14 and Table 5 on page 14).
Connect pins 8 and 9 to insert the bypass
capacity present on the board to filter
any disturbances on the power supply.
Observe the voltage and current values
indicated on the plate.
4.3.2 Direct 32V Power Supply
To power the module at 32V
the power supply positive on pin 14 and
the negative on pin 15.
Connect pins 8 and 9 to insert the bypass
capacity present on the board to filter
any disturbances on the power supply.
Observe the voltage and current values
indicated on the plate.
4.3.3 Power Regulation
The COMPACT PIEZO LED piezoelectric mod-
ule allows regulation of the handpiece power
by means of the controls on the dental unit,
4.3.3.1 Power Regulation with 2.2 kOhm Potentiometer
Connect the 2.2 kOhm potentiometer
between pins 6 and 10. The maximum
power corresponds to resistance 0, and
minimum to resistance 2.2 kOhm.
