4 Mounting / Installation

4.1

Assembling the Handle

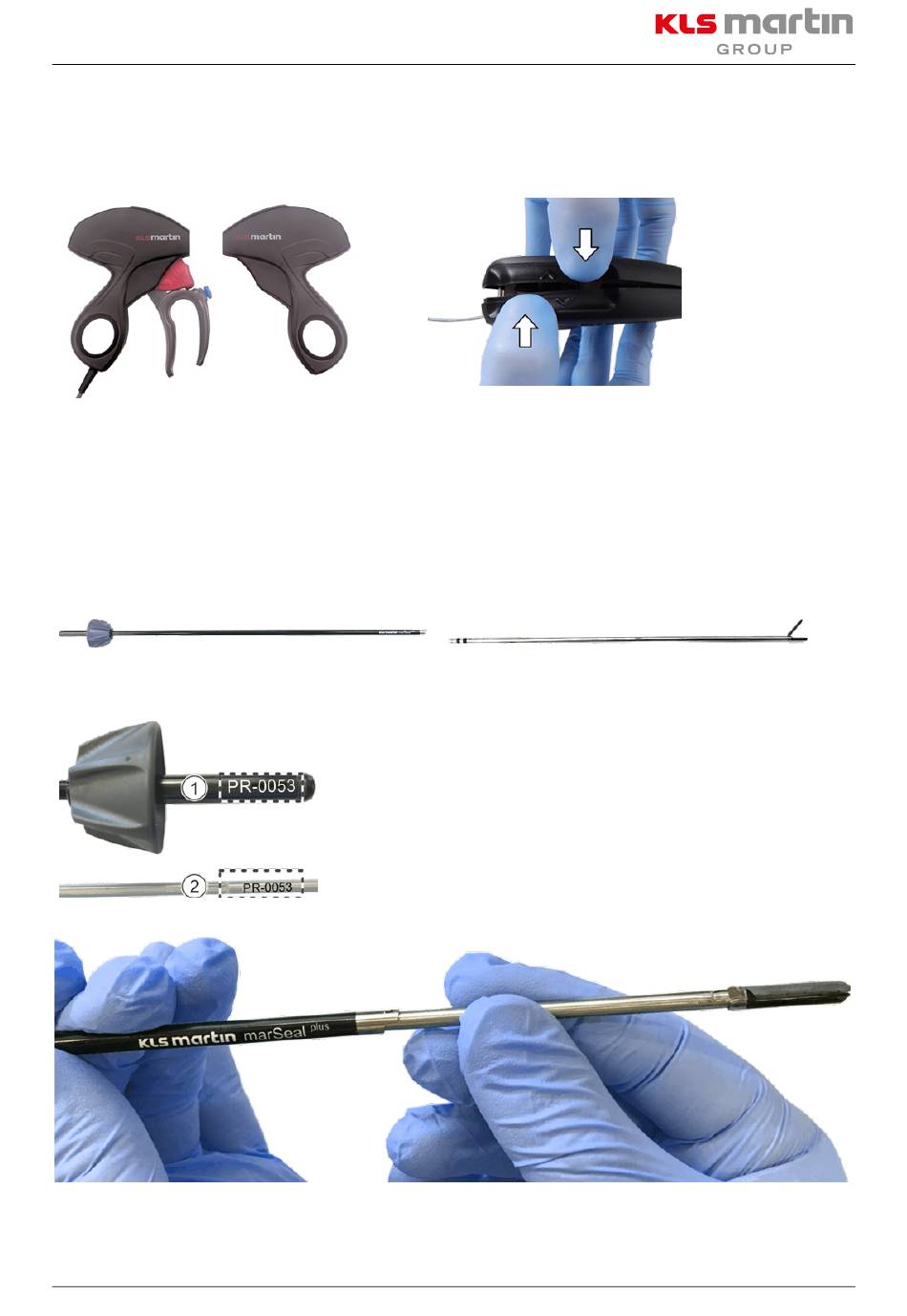

• Remove the handle and handle plate from
the tray basket.
4.2

Assembling the Tubular Shaft

The tubular shaft consists of an outer tube and an inner tube.
Outer tube (1)
• Slide the inner tube into the front opening of the outer tube until a resistance can be felt.
Revision 06
• Now press handle and handle plate together until the
handle plate latches audibly. The two handle plates
are held in place by magnets.
Inner tube (2) with jaw part
The outer tube (1) and the inner tube (2) are marked
with a continuous serial number.
• Before each assembly, make sure that the two
parts have the same serial number.
