Instructions for Use
5.3.2

Sealing

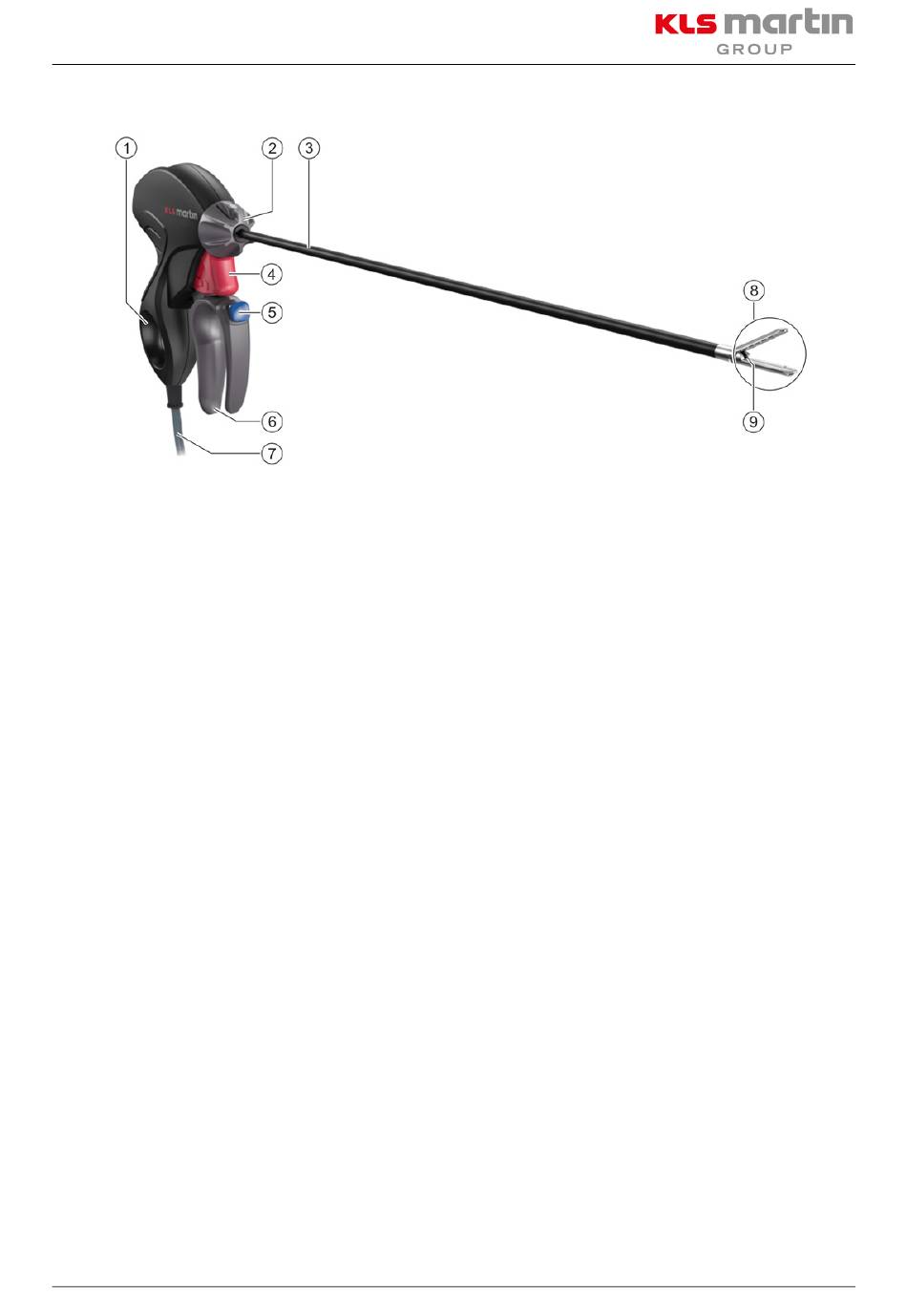

Fig. 5-1: Sealing
• Using the rotating wheel (2) of the tubular shaft, rotate the jaw part (8) to an ergonomically optimal
position.
• Then grasp the tissue to be treated with the jaw part (8).
• Close and lock the jaw part (8). At the same time, press the movable handle (6) until the ratchet
integrated in the handle (1) latches audibly.
• Activate the sealing current by pressing the blue button (5). The electrosurgical unit maxium® finishes
the sealing process automatically and confirms this acoustically. This shuts down the current
automatically before carbonization of the tissue can occur.
• Press the red pushbutton (4) of the blade trigger. Thereby the integrated blade (9) is pushed through the
tubular shaft (3) and jaw part (8), cutting the sealed tissue.
• The latch of the jaw part is released by actuating the movable handle (6) again, and the jaw part (8) is
opened.
Revision 06 69
