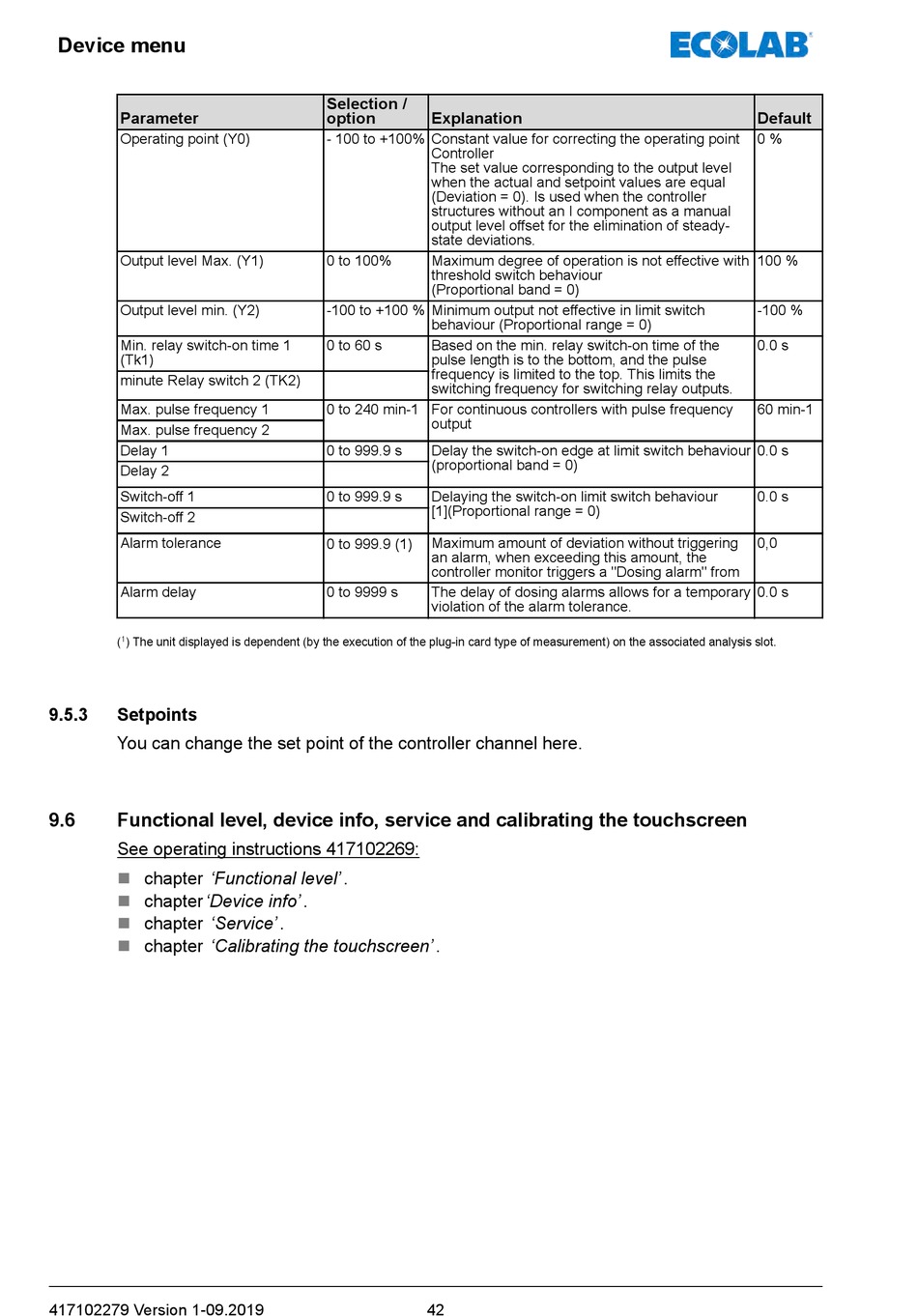

Device menu
Parameter
Operating point (Y0)
Output level Max. (Y1)
Output level min. (Y2)
Min. relay switch-on time 1
(Tk1)
minute Relay switch 2 (TK2)
Max. pulse frequency 1
Max. pulse frequency 2
Delay 1
Delay 2
Switch-off 1
Switch-off 2
Alarm tolerance
Alarm delay
( 1 ) The unit displayed is dependent (by the execution of the plug-in card type of measurement) on the associated analysis slot.
9.5.3 Setpoints
You can change the set point of the controller channel here.
9.6

Functional level, device info, service and calibrating the touchscreen

See operating instructions 417102269:
n chapter 'Functional level' .
n chapter 'Device info' .
n chapter 'Service' .
n chapter 'Calibrating the touchscreen' .
417102279 Version 1-09.2019
Selection /
option Explanation
- 100 to +100% Constant value for correcting the operating point
Controller
The set value corresponding to the output level
when the actual and setpoint values are equal
(Deviation = 0). Is used when the controller
structures without an I component as a manual
output level offset for the elimination of steady-
state deviations.
0 to 100% Maximum degree of operation is not effective with
threshold switch behaviour
(Proportional band = 0)
-100 to +100 % Minimum output not effective in limit switch
behaviour (Proportional range = 0)
0 to 60 s Based on the min. relay switch-on time of the
pulse length is to the bottom, and the pulse
frequency is limited to the top. This limits the
switching frequency for switching relay outputs.
0 to 240 min-1 For continuous controllers with pulse frequency
output
0 to 999.9 s Delay the switch-on edge at limit switch behaviour
(proportional band = 0)
0 to 999.9 s Delaying the switch-on limit switch behaviour
[1](Proportional range = 0)
Maximum amount of deviation without triggering
0 to 999.9 (1)
an alarm, when exceeding this amount, the
controller monitor triggers a "Dosing alarm" from
0 to 9999 s The delay of dosing alarms allows for a temporary
violation of the alarm tolerance.
42
Default
0 %
100 %
-100 %
0.0 s
60 min-1
0.0 s
0.0 s
0,0
0.0 s
