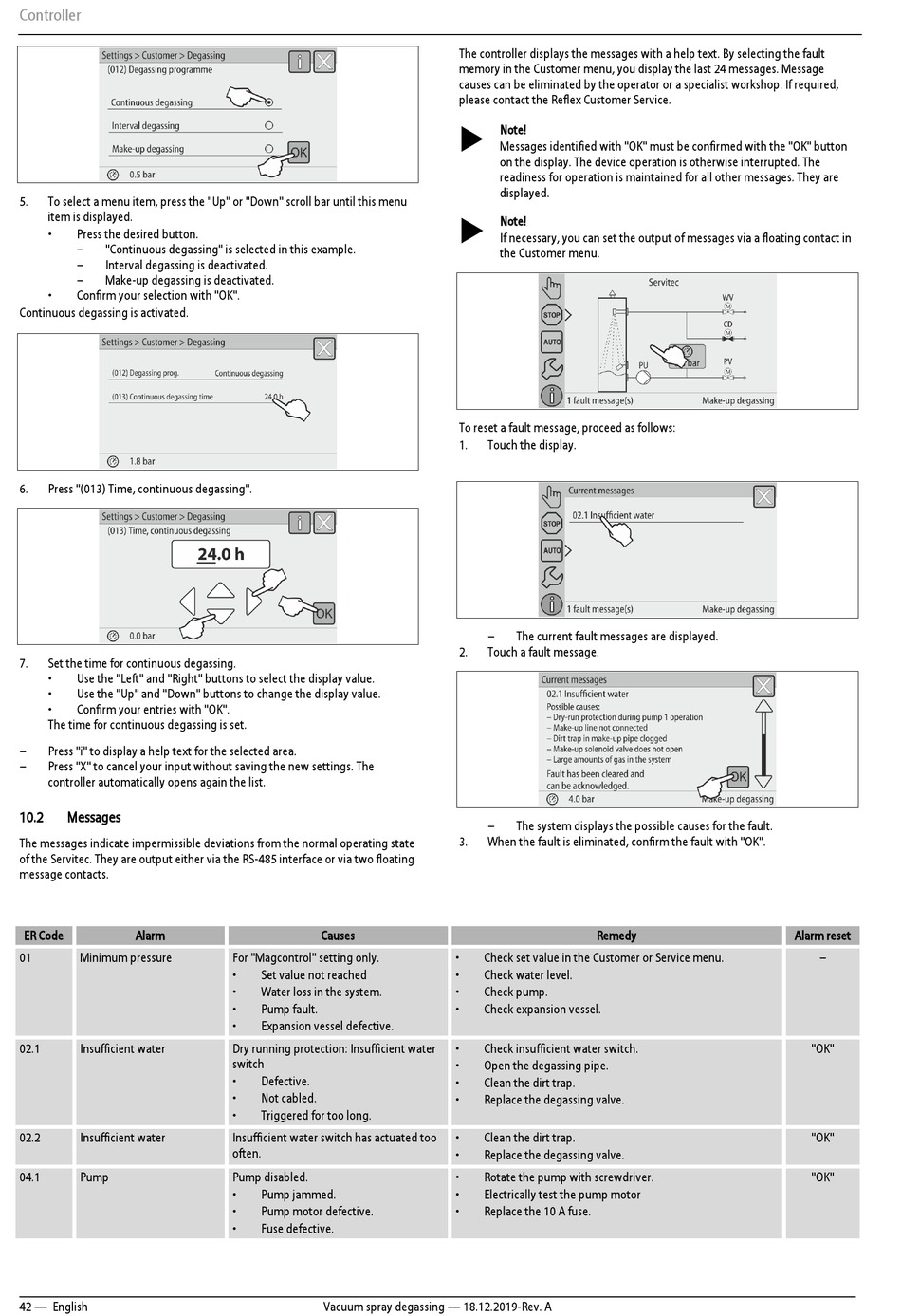

Controller
5. To select a menu item, press the "Up" or "Down" scroll bar until this menu
item is displayed.
• Press the desired button.
– "Continuous degassing" is selected in this example.
– Interval degassing is deactivated.
– Make-up degassing is deactivated.
• Confirm your selection with "OK".
Continuous degassing is activated.
6. Press "(013) Time, continuous degassing".
7. Set the time for continuous degassing.
• Use the "Left" and "Right" buttons to select the display value.
• Use the "Up" and "Down" buttons to change the display value.
• Confirm your entries with "OK".
The time for continuous degassing is set.
– Press "i" to display a help text for the selected area.
– Press "X" to cancel your input without saving the new settings. The
controller automatically opens again the list.
10.2

Messages

The messages indicate impermissible deviations from the normal operating state
of the Servitec. They are output either via the RS-485 interface or via two floating
message contacts.
ER Code Alarm
01 Minimum pressure
02.1 Insufficient water
02.2 Insufficient water
04.1 Pump
42 — English
Causes
For "Magcontrol" setting only.
• Set value not reached
• Water loss in the system.
• Pump fault.
• Expansion vessel defective.
Dry running protection: Insufficient water
switch
• Defective.
• Not cabled.
• Triggered for too long.
Insufficient water switch has actuated too
often.
Pump disabled.
• Pump jammed.
• Pump motor defective.
• Fuse defective.
Vacuum spray degassing — 18.12.2019-Rev. A
The controller displays the messages with a help text. By selecting the fault
memory in the Customer menu, you display the last 24 messages. Message
causes can be eliminated by the operator or a specialist workshop. If required,
please contact the Reflex Customer Service.
 Note!
Messages identified with "OK" must be confirmed with the "OK" button
on the display. The device operation is otherwise interrupted. The
readiness for operation is maintained for all other messages. They are
displayed.
 Note!
If necessary, you can set the output of messages via a floating contact in
the Customer menu.
To reset a fault message, proceed as follows:
1. Touch the display.
– The current fault messages are displayed.
2. Touch a fault message.
– The system displays the possible causes for the fault.
3. When the fault is eliminated, confirm the fault with "OK".
Remedy
• Check set value in the Customer or Service menu.
• Check water level.
• Check pump.
• Check expansion vessel.
• Check insufficient water switch.
• Open the degassing pipe.
• Clean the dirt trap.
• Replace the degassing valve.
• Clean the dirt trap.
• Replace the degassing valve.
• Rotate the pump with screwdriver.
• Electrically test the pump motor
• Replace the 10 A fuse.
Alarm reset
–
"OK"
"OK"
"OK"
