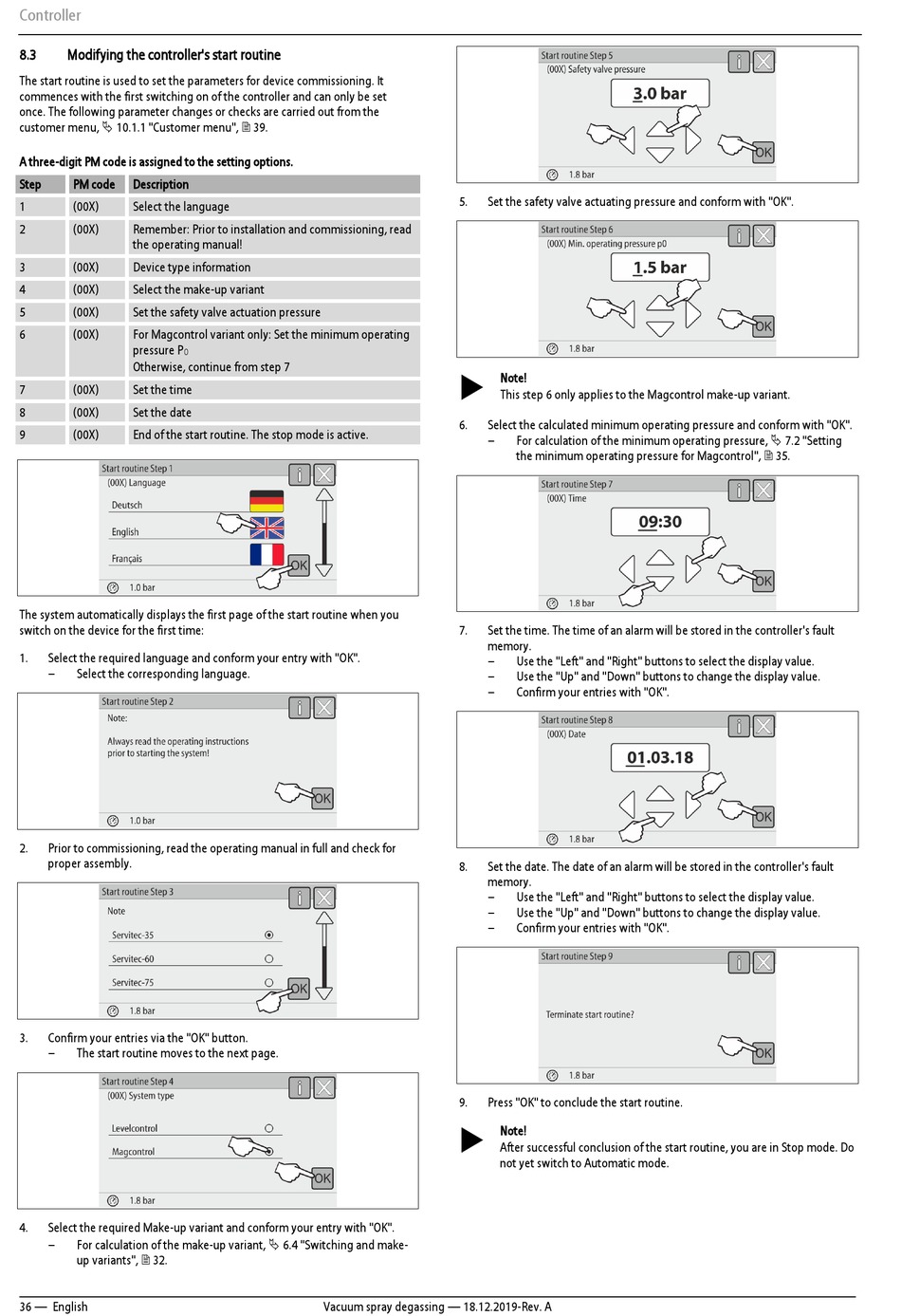

Modifying the controller's start routine

The start routine is used to set the parameters for device commissioning. It
commences with the first switching on of the controller and can only be set
once. The following parameter changes or checks are carried out from the
customer menu,  10.1.1 "Customer menu",  39.
A three-digit PM code is assigned to the setting options.
Step PM code Description
1 (00X) Select the language
2 (00X) Remember: Prior to installation and commissioning, read
the operating manual!
3 (00X) Device type information
4 (00X) Select the make-up variant
5 (00X) Set the safety valve actuation pressure
6 (00X) For Magcontrol variant only: Set the minimum operating
pressure P
O
Otherwise, continue from step 7
7 (00X) Set the time
8 (00X) Set the date
9 (00X) End of the start routine. The stop mode is active.
The system automatically displays the first page of the start routine when you
switch on the device for the first time:
1. Select the required language and conform your entry with "OK".
– Select the corresponding language.
2. Prior to commissioning, read the operating manual in full and check for
proper assembly.
3. Confirm your entries via the "OK" button.
– The start routine moves to the next page.
4. Select the required Make-up variant and conform your entry with "OK".
For calculation of the make-up variant,  6.4 "Switching and make-
–
up variants",  32.
36 — English
5. Set the safety valve actuating pressure and conform with "OK".

6. Select the calculated minimum operating pressure and conform with "OK".
–
7. Set the time. The time of an alarm will be stored in the controller's fault
memory.
–
–
–
8. Set the date. The date of an alarm will be stored in the controller's fault
memory.
–
–
–
9. Press "OK" to conclude the start routine.

Vacuum spray degassing — 18.12.2019-Rev. A
Note!
This step 6 only applies to the Magcontrol make-up variant.
For calculation of the minimum operating pressure,  7.2 "Setting
the minimum operating pressure for Magcontrol",  35.
Use the "Left" and "Right" buttons to select the display value.
Use the "Up" and "Down" buttons to change the display value.
Confirm your entries with "OK".
Use the "Left" and "Right" buttons to select the display value.
Use the "Up" and "Down" buttons to change the display value.
Confirm your entries with "OK".
Note!
After successful conclusion of the start routine, you are in Stop mode. Do
not yet switch to Automatic mode.
